Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Pressure Rating | 4000 |
| Side 1 Gender | MALE |
| Side 1 Size | 7/8-14 (-10) |
| Side 1 Type | JIC |
| Side 2 Gender | FEMALE |
| Side 2 Size | 3/4-14 (-12) |
| Side 2 Type | NPT |
Description

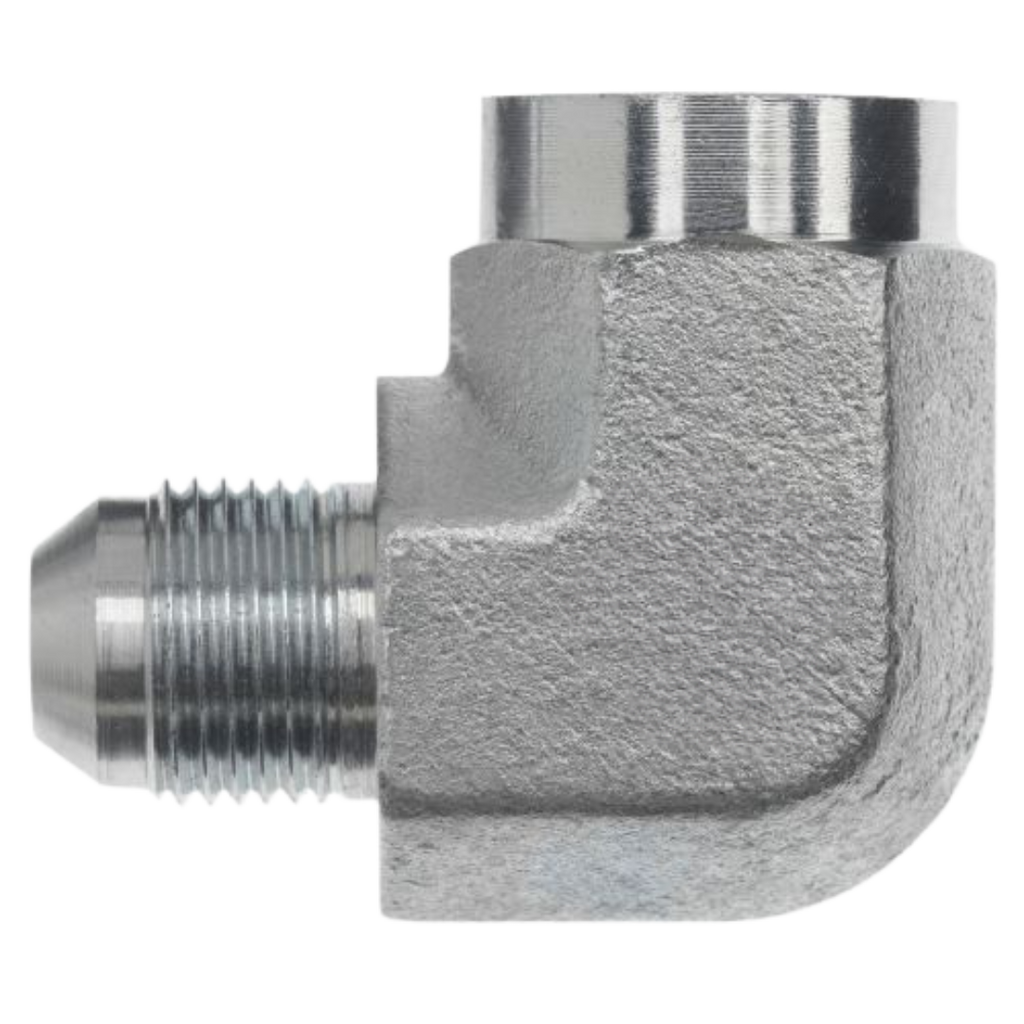

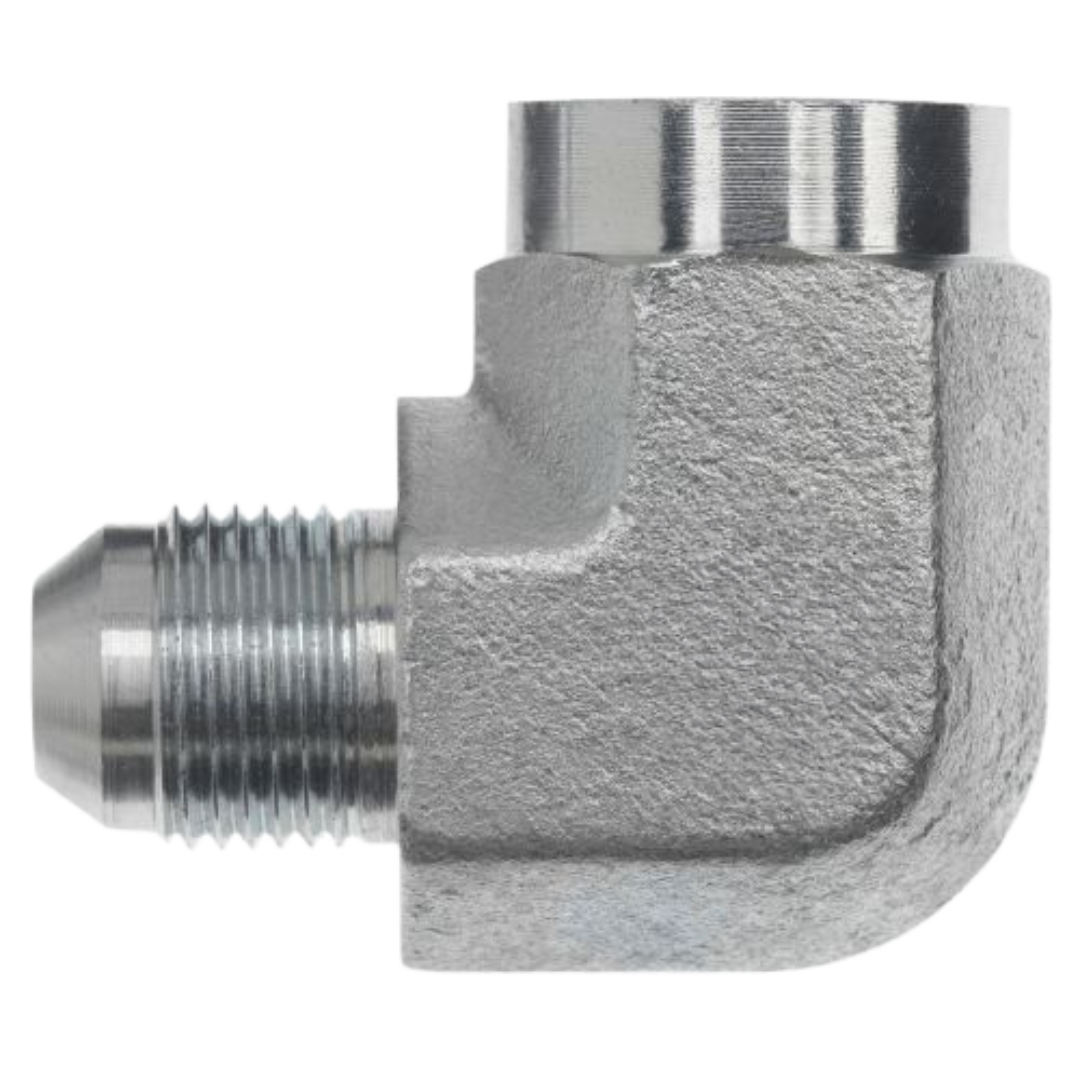

The Series 2502 90-Degree Angled Male JIC x Female NPT Rigid adapters are durable, high-performance fittings designed for fluid power systems. Made from carbon steel, these adapters feature a 90-degree angle that allows for efficient, space-saving connections between hydraulic hoses and pipes. The male side of the adapter uses a 37° JIC flare connection, while the female side features a NPT (National Pipe Tapered) thread, which creates a tight seal through the deformation of tapered threads. These adapters are ideal for high-pressure systems and provide a secure, leak-free connection when properly installed. Perfect for industrial applications, the Series 2502 ensures long-lasting, reliable performance in hydraulic systems.
