Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Stock | 331 |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Tee |
| Pressure Rating | 6000 |
| Series | 2601-FG |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 9/16-18 (-06) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 9/16-18 (-06) |
| Side 2 Type | JIC |
| Side 3 Gender | MALE |
| Side 3 Size | 1/4-18 (-04) |
| Side 3 Type | NPT |
Description

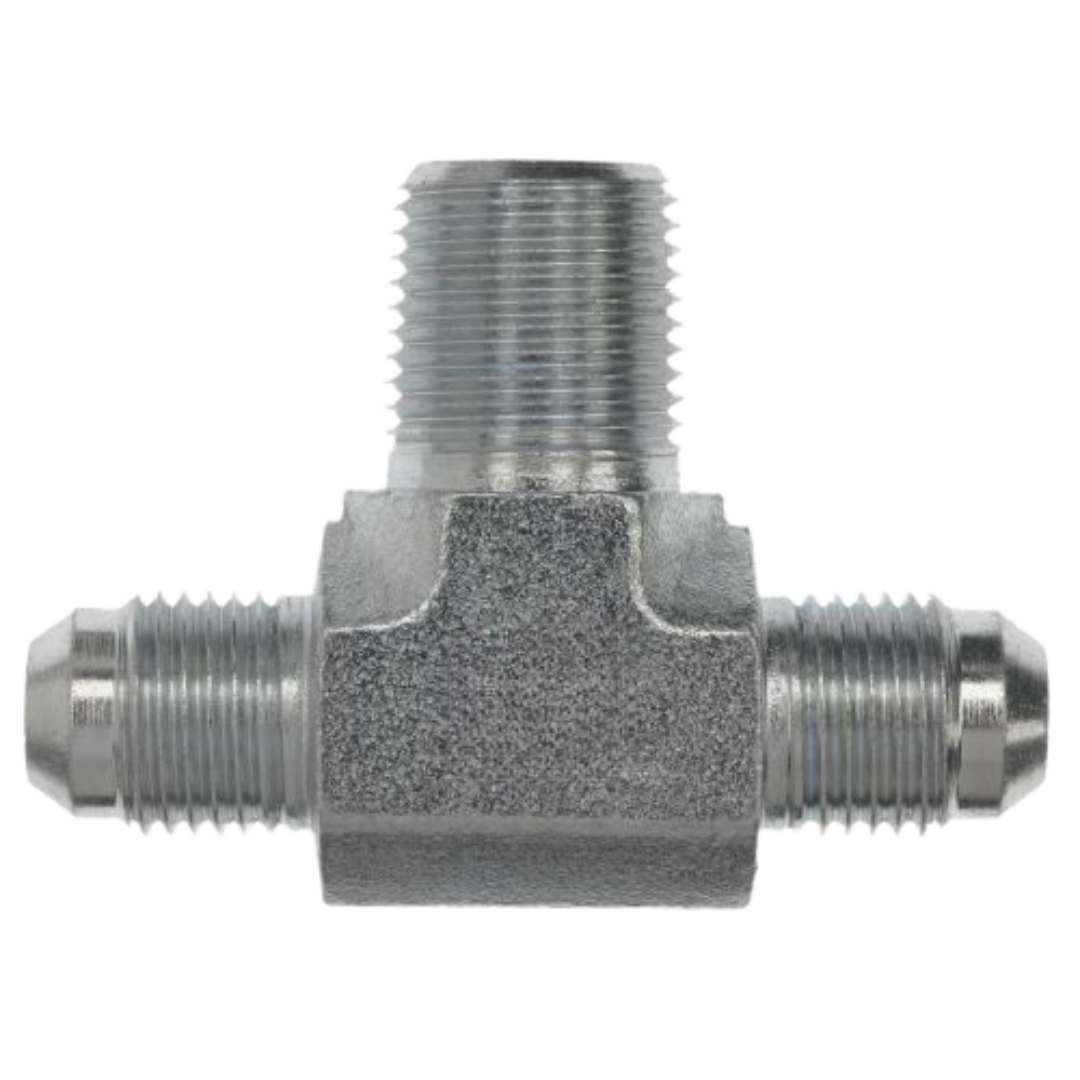

The Series 2601 Tee Male JIC x Male JIC x Male NPT adapters are durable carbon steel fittings designed to provide secure, leak-free connections in hydraulic and fluid power systems. These tee adapters feature a three-way design, allowing for efficient splitting or combining of fluid flow within a system. Both ends are equipped with male JIC (Joint Industry Council) connections, utilizing a 37° tapered seat to ensure a reliable, mechanical seal. The third end features a male NPT (National Pipe Tapered) connection, which creates a tight, leak-proof seal through thread deformation. Made from strong carbon steel, these adapters provide excellent strength, corrosion resistance, and long-lasting performance. The Series 2601 adapters are ideal for high-pressure systems and industrial applications, offering dependable, flexible, and efficient connections for fluid distribution in systems that require secure, reliable routing.
