Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Stainless Steel |
| Shape | Tee |
| Pressure Rating | 6000 |
| Series | 2606-FG |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 7/16-20 (-04) |
| Side 1 Type | JIC |
| Side 2 Gender | FEMALE |
| Side 2 Size | 1/4-18 (-04) |
| Side 2 Type | NPT |
| Side 3 Gender | MALE |
| Side 3 Size | 7/16-20 (-04) |
| Side 3 Type | JIC |
Description

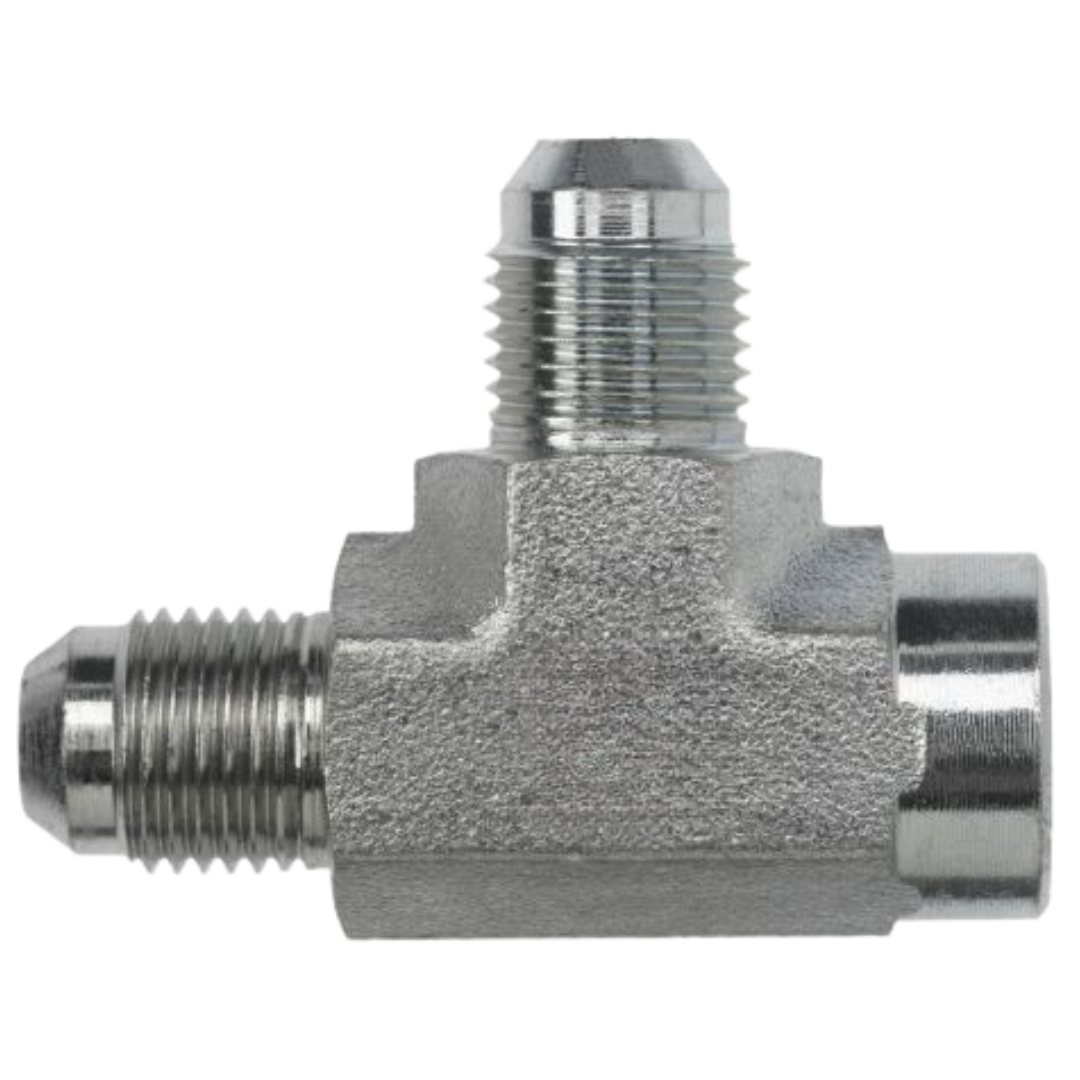

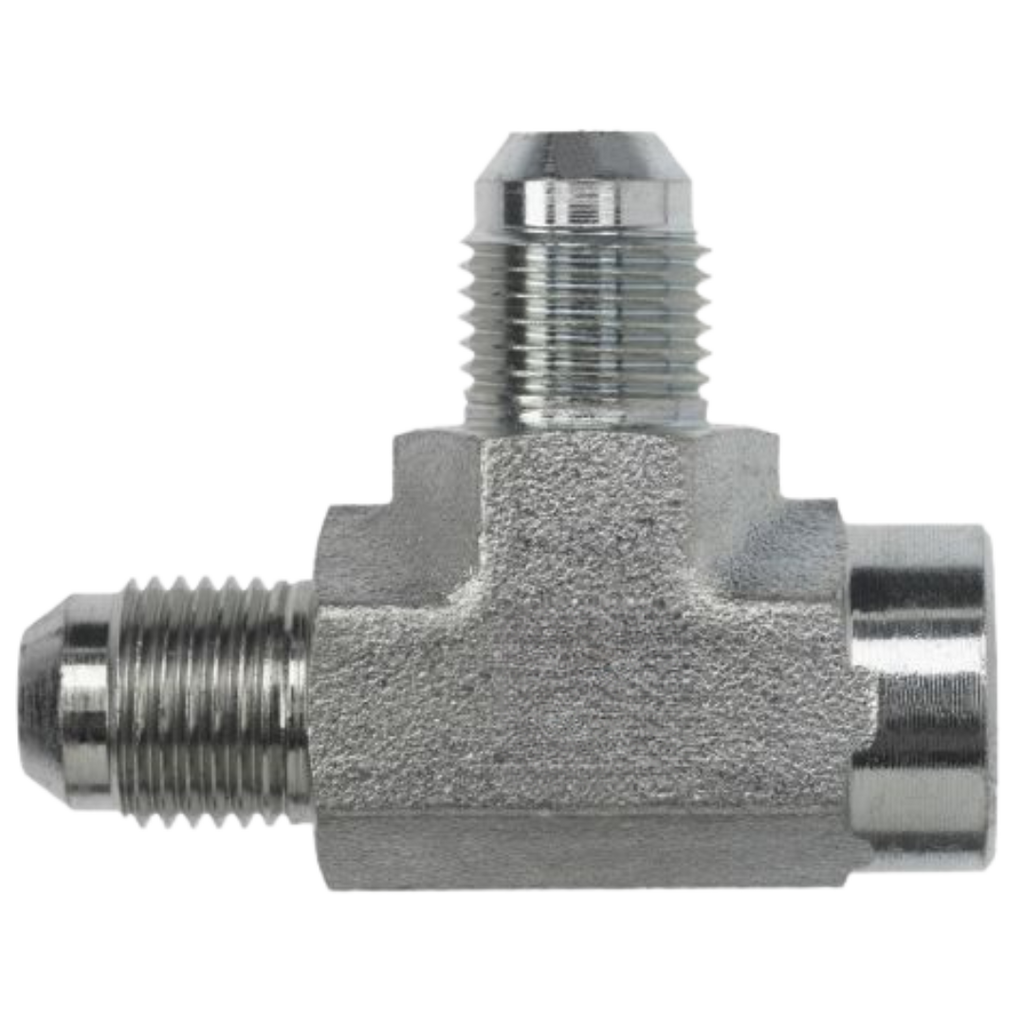

The Series 2606-SS Tee Male JIC x Female NPT x Male JIC adapters are high-performance stainless steel fittings designed to provide secure, leak-free connections in hydraulic and fluid power systems. These tee adapters feature a three-way design, ideal for splitting or combining fluid flow in a system. One end is equipped with a male JIC (Joint Industry Council) connection, using a 37° tapered seat to ensure a reliable, mechanical seal. The other ends feature female NPT (National Pipe Tapered) connections, which create a tight, leak-proof seal through thread deformation. Made from durable stainless steel, the Series 2606-SS offers superior corrosion resistance, strength, and long-lasting performance, making it perfect for high-pressure fluid systems and industrial applications that require flexible, dependable, and durable connections. These adapters provide exceptional reliability for fluid transfer in harsh environments.
