Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Material | Steel |
| Shape | 90-Degrees |
| Pressure Rating | 6000 |
| Series | 2701-FG |
| Country of Manufacture | India |
| Side 1 Gender | MALE |
| Side 1 Size | 3/4-16 (-08) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 3/4-16 (-08) |
| Side 2 Type | JIC |
Description

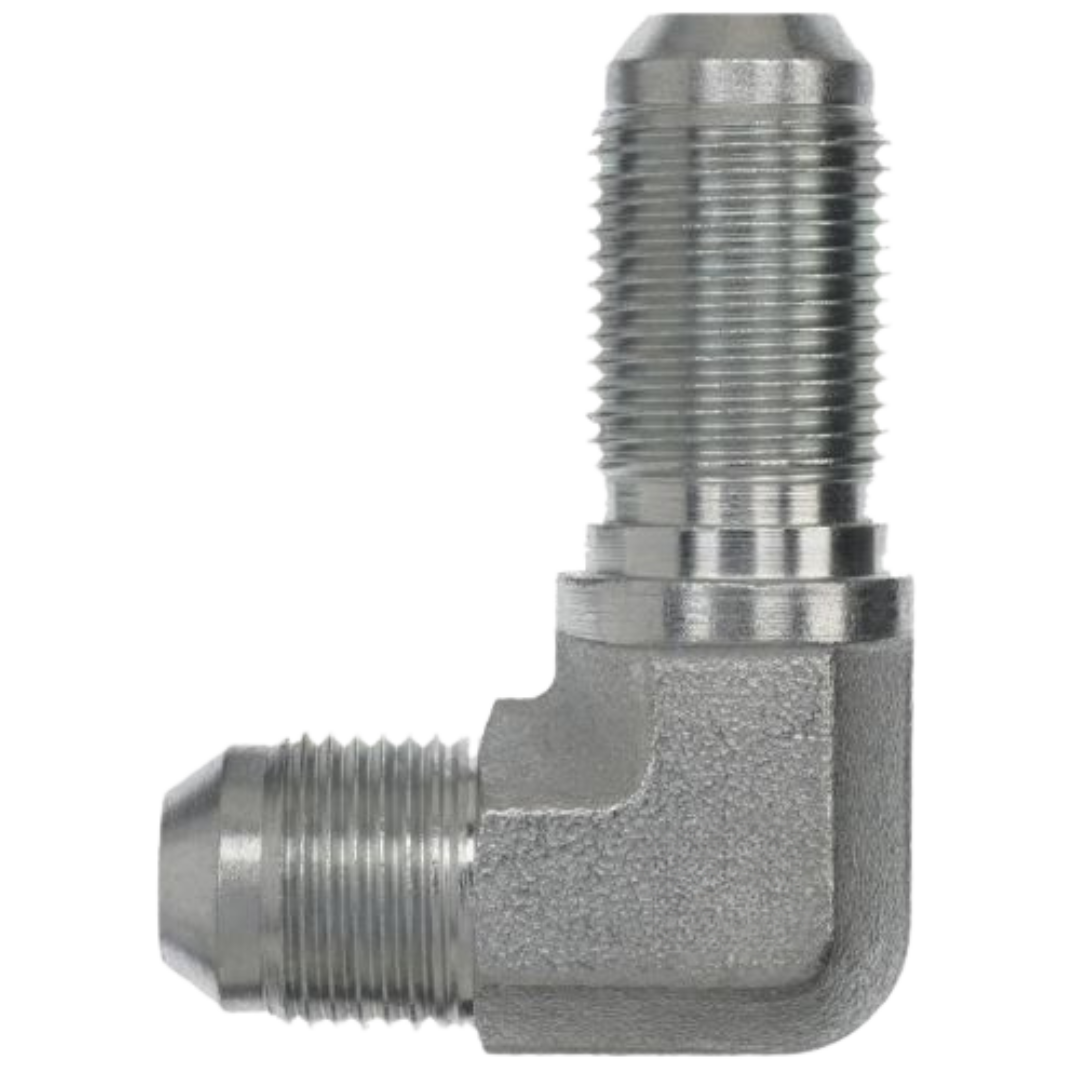

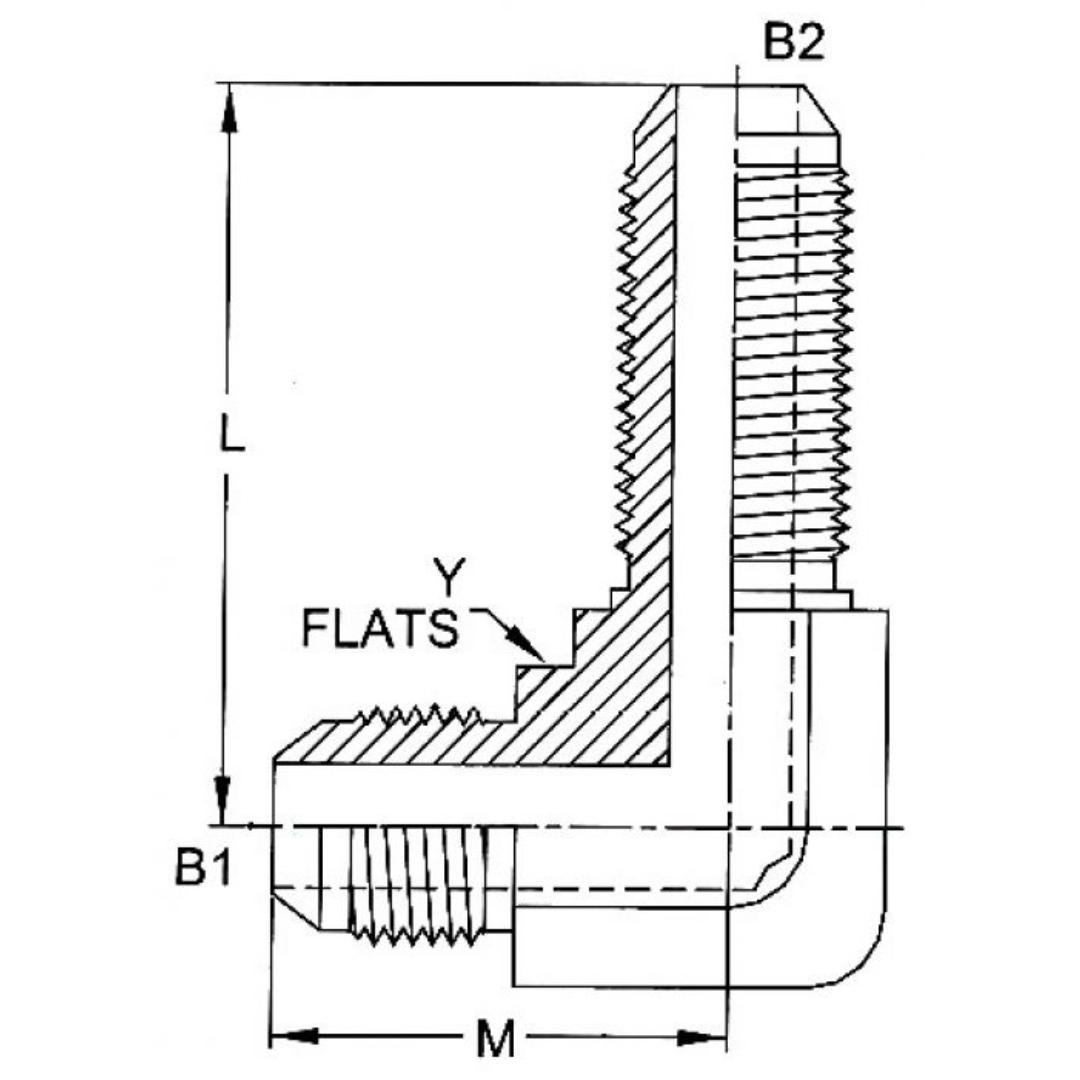

The Series 2701 90-Degree Angled Male JIC x Male JIC Rigid Bulkhead adapters are durable carbon steel fittings designed for secure, leak-free connections in hydraulic systems. These adapters feature a 90-degree angle, making them ideal for applications where space is limited. Both ends are equipped with male JIC (Joint Industry Council) 37° flare connections, ensuring a reliable mechanical seal. The "bulkhead" design allows these adapters to be mounted through a panel or wall, providing a secure passage for fluid transfer while maintaining a strong connection between hoses and pipes. Perfect for high-pressure applications, the Series 2701 adapters offer excellent performance, corrosion resistance, and durability, making them an ideal choice for industrial fluid power systems.
