Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | Same Day |
| Factory Stock | 520 |
| Factory Location | Bowling Green, Ohio |
| For Use With | RPE2-04, RPE3-04, SR4E2-B2, SD2E-Ax/H, SD3E-A2/H, SD1e-A2, SD1E-A3, PRM2-04, PRM7-04, SR1P2-A2, SRN1P1-A2, SR4P2-B2, SRN4P1-B2, SP4P2,B3, SPN4P1-B3, PVRM1-063 |
| Voltage | 12 VDC |
| Electrical Connector | Deutsch (DT04-2P) |
| Coil Size | C19 |
| Valve Size | Dn 04 |
| Coil Inner Diameter | 0.75" |
| Country of Manufacture | Czech Republic |
Description

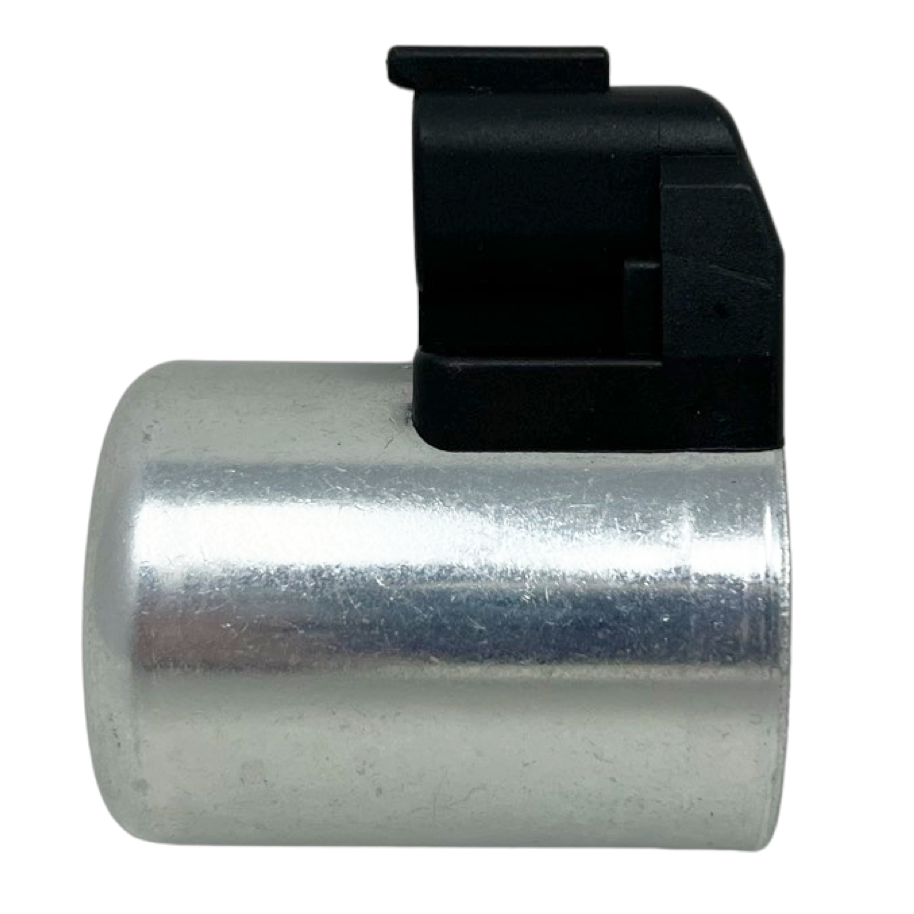

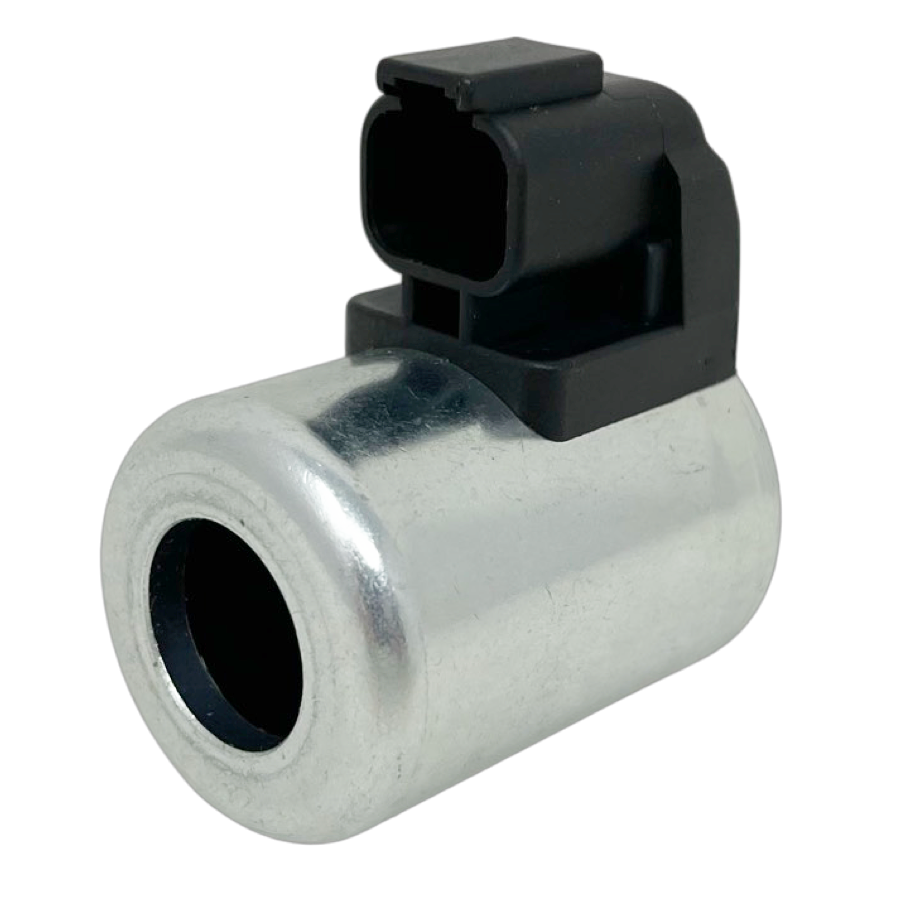

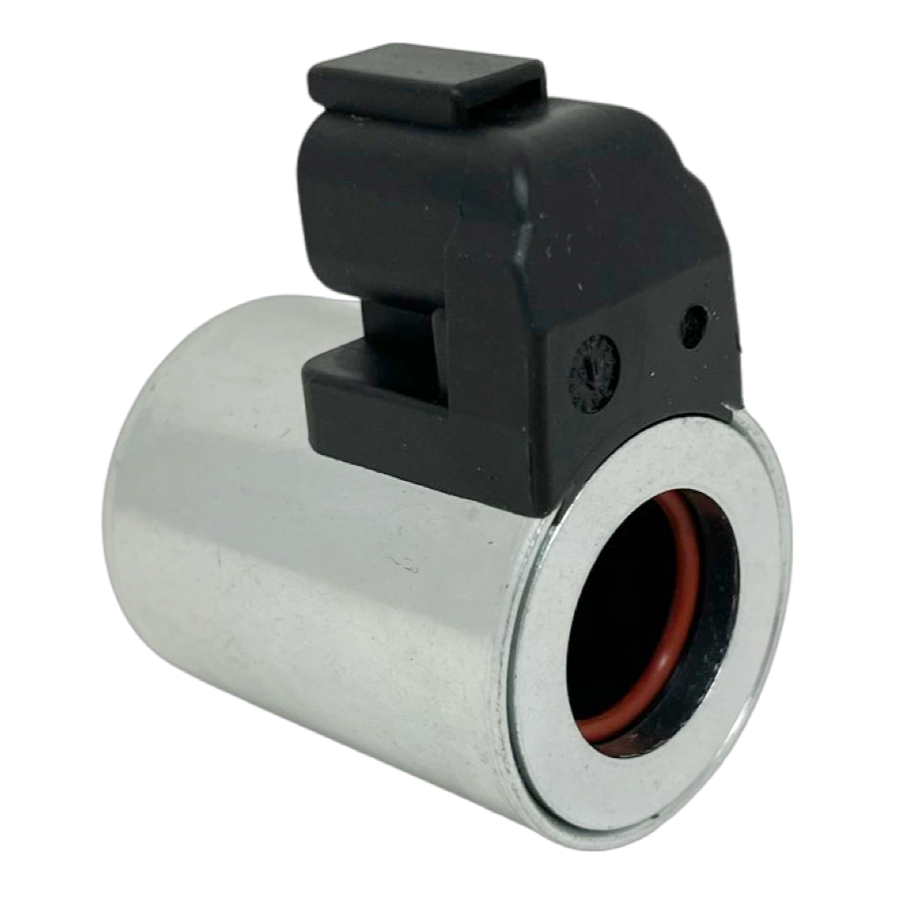

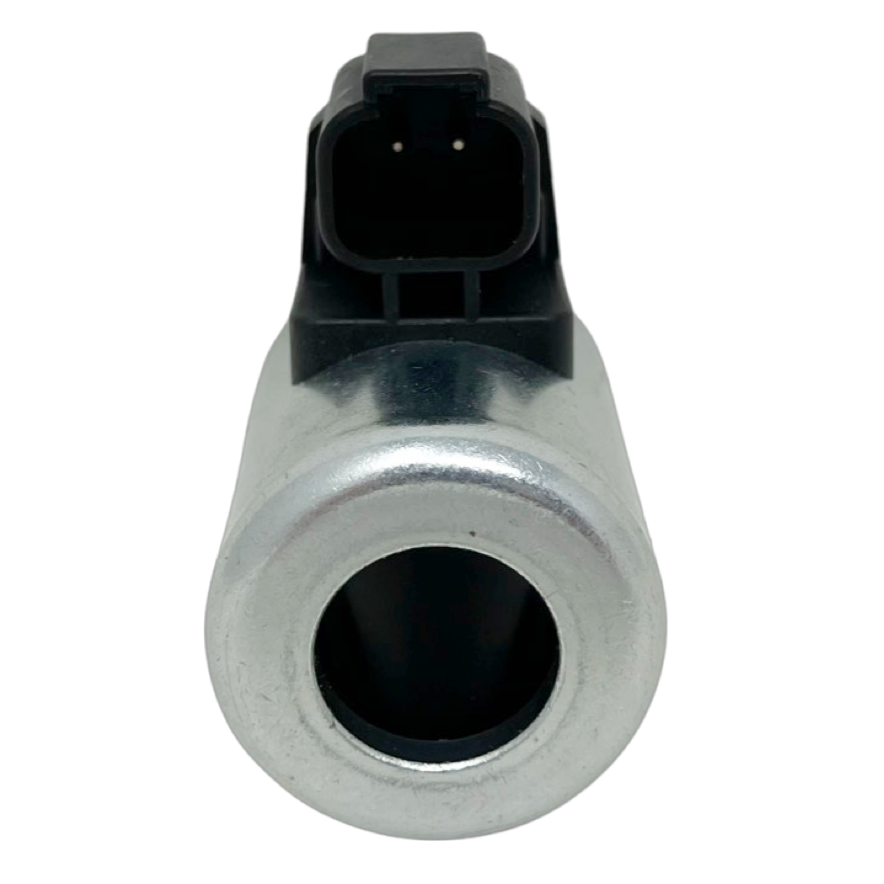

Valves designed for a change of fluid direction, such as directional control valves and poppet-type valves, are often solenoid operated. Proportional valves are another large group controlling continuously parameters in the circuit within the defined interval. Electric current flowing through the coil winding creates a magnetic field. This field acts on the armature of the solenoid part and allows its shift which is then transferred to the valve control element, usually a spool or poppet. The excitation winding made of copper wire placed on a plastic core is the basis. The coil is inserted into the steel housing amplifying the magnetic field and to protect it against mechanical damage. Moreover, the coil is molded into the housing by plastic material. The connector part coupled with the coil is also made of the same plastic. A silicone seal protects the coil space against moisture and dust.
