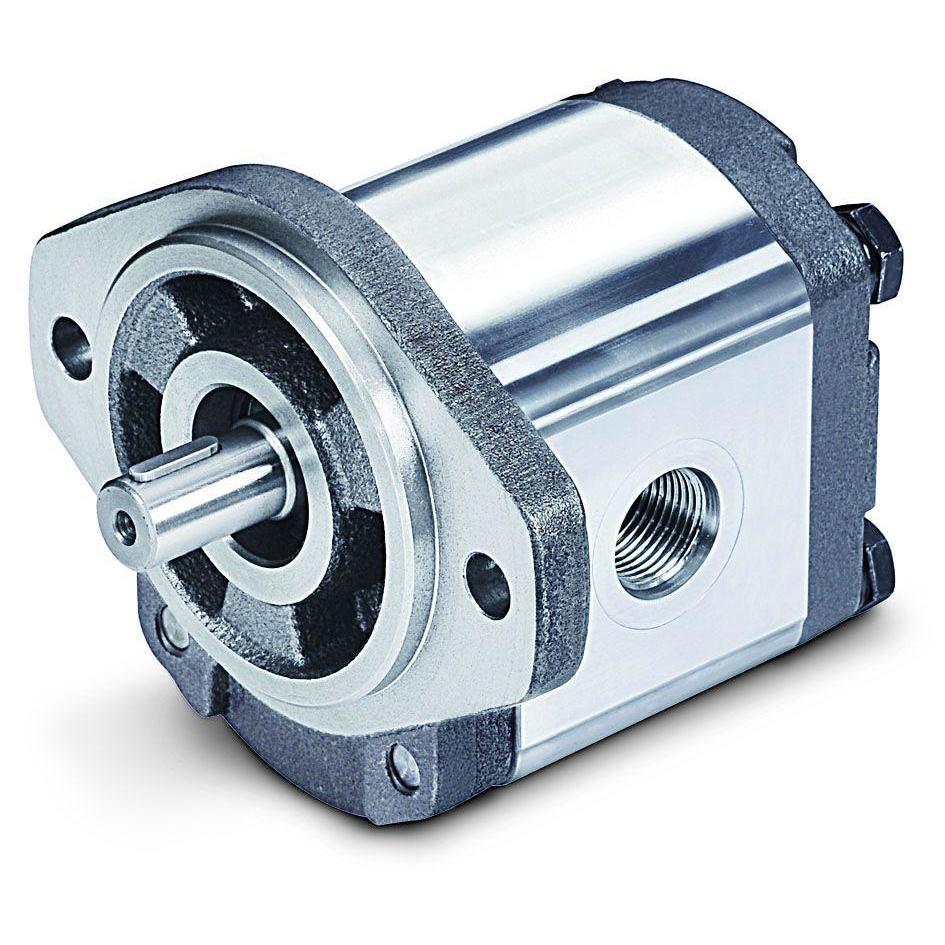

2GG9U14R : Honor Gear Pump, CW Rotation, 14cc (0.85in3), 6.66 GPM, 3500psi, 4000 RPM, #12 SAE (3/4") In, #10 SAE (5/8") Out, 3/4" Bore x 3/16" Key, SAE A 2-Bolt Mount
Roll over image to zoom in Click on image to zoom
2GG9U14R : Honor Gear Pump, CW Rotation, 14cc (0.85in3), 6.66 GPM, 3500psi, 4000 RPM, #12 SAE (3/4") In, #10 SAE (5/8") Out, 3/4" Bore x 3/16" Key, SAE A 2-Bolt Mount

2GG9U14R : Honor Gear Pump, CW Rotation, 14cc (0.85in3), 6.66 GPM, 3500psi, 4000 RPM, #12 SAE (3/4") In, #10 SAE (5/8") Out, 3/4" Bore x 3/16" Key, SAE A 2-Bolt Mount

HonorSKU: 2GG9U14R
1-3 Days
Price:
$255.69

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Corpus Christi, Texas
Material Aluminum Body, Cast Iron Flange and Cover
Shaft Size 3/4" Bore x 3/16" Key
Shaft Type Keyed
Port Location Side Ported
Pressure Rating 3500
Rotation Clockwise
Displacement 14
Gpm At 1800 Rpm 6.66
Max Speed 4000 RPM
Inlet Port #12 SAE (3/4")
Outlet Port #10 SAE (5/8")
Mount SAE A 2-Bolt
Country of Manufacture Taiwan
Height 4.488
Length 4.044
Width 5.197
Weight 8.01

Description

The Honor Gear Pump Group 2 Pumps are defined by the mounting flange and shaft end, as well as the function, be it pump or motor or birotational pump. Mounting flanges are available in SAE A 2-bolt or four-bolt European mounting flanges. Shaft ends can be keyed, spline, or tapered, depending on your requirements. Displacements are available from 0.24 to 2.02 in3. Side ports are generally standard, but rear ports may be available upon request. If you need a pump in a configuration that isn't avaiable online, please give OneHydraulics a call and we'll be happy to help.
