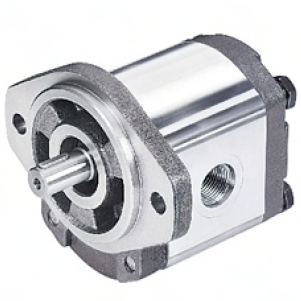

2MM1U24 : Honor Gear Motor, Bidirectional, 23.5cc, 2550psi rated, 2500 RPM, 0.75 (3/4") #12 SAE Inlet and Outlet, 5/8" Bore x 5/32" Keyed Shaft
Roll over image to zoom in Click on image to zoom
2MM1U24 : Honor Gear Motor, Bidirectional, 23.5cc, 2550psi rated, 2500 RPM, 0.75 (3/4") #12 SAE Inlet and Outlet, 5/8" Bore x 5/32" Keyed Shaft

2MM1U24 : Honor Gear Motor, Bidirectional, 23.5cc, 2550psi rated, 2500 RPM, 0.75 (3/4") #12 SAE Inlet and Outlet, 5/8" Bore x 5/32" Keyed Shaft

Save $85.83
HonorSKU: 2MM1U24
6 Weeks
Price:
$325.17 $411.00

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 6 Weeks
Factory Location Texas
Material Aluminum Body Aluminum Flange And Cover
Type Reversible Motor
Shaft Size 5/8" Bore x 5/32" Key
Shaft Type Keyed
Rotation Bidirectional
Displacement 23.5 (cc)
Max Speed 2500 RPM
Inlet Port 0.75 (3/4") #12 SAE
Outlet Port 1" #16 SAE
Mount SAE A 2-Bolt
Motor Pressure Rating 2550
Country of Manufacture Taiwan
Height 4.488
Length 4.685
Width 5.197
Weight 7.11

Description

The Honor Gear Pump Group 2 Pumps are defined by the mounting flange and shaft end, as well as the function, be it pump or motor or birotational pump. Mounting flanges are available in SAE A 2-bolt or four-bolt European mounting flanges. Shaft ends can be keyed, spline, or tapered, depending on your requirements. Displacements are available from 0.24 to 2.02 in3. Side ports are generally standard, but rear ports may be available upon request. If you need a pump in a configuration that isn't avaiable online, please give OneHydraulics a call and we'll be happy to help.
