Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Cincinnati, Ohio and Houston, Texas |
| Material | Carbon Steel |
| Flange Code | Code 61 |
| Flange Size | 2" |
| Pressure Rating | 3000 |
| Sae Connector Flange Type | Split Flange Adapter |
| Fitting Angle | Straight |
| Adapter Notes | 2 1/2-12 |
| Country of Manufacture | China |
| Height | 2.812 |
| Length | 3.98 |
| Width | 2.812 |
| Side 1 Gender | Male |
| Side 1 Size | 2" |
| Side 1 Type | JIC |
Description

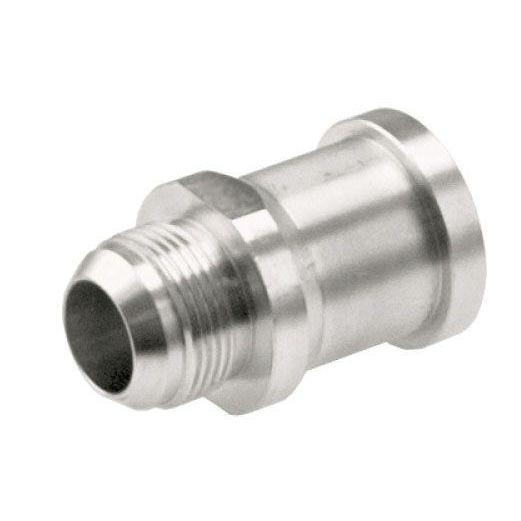

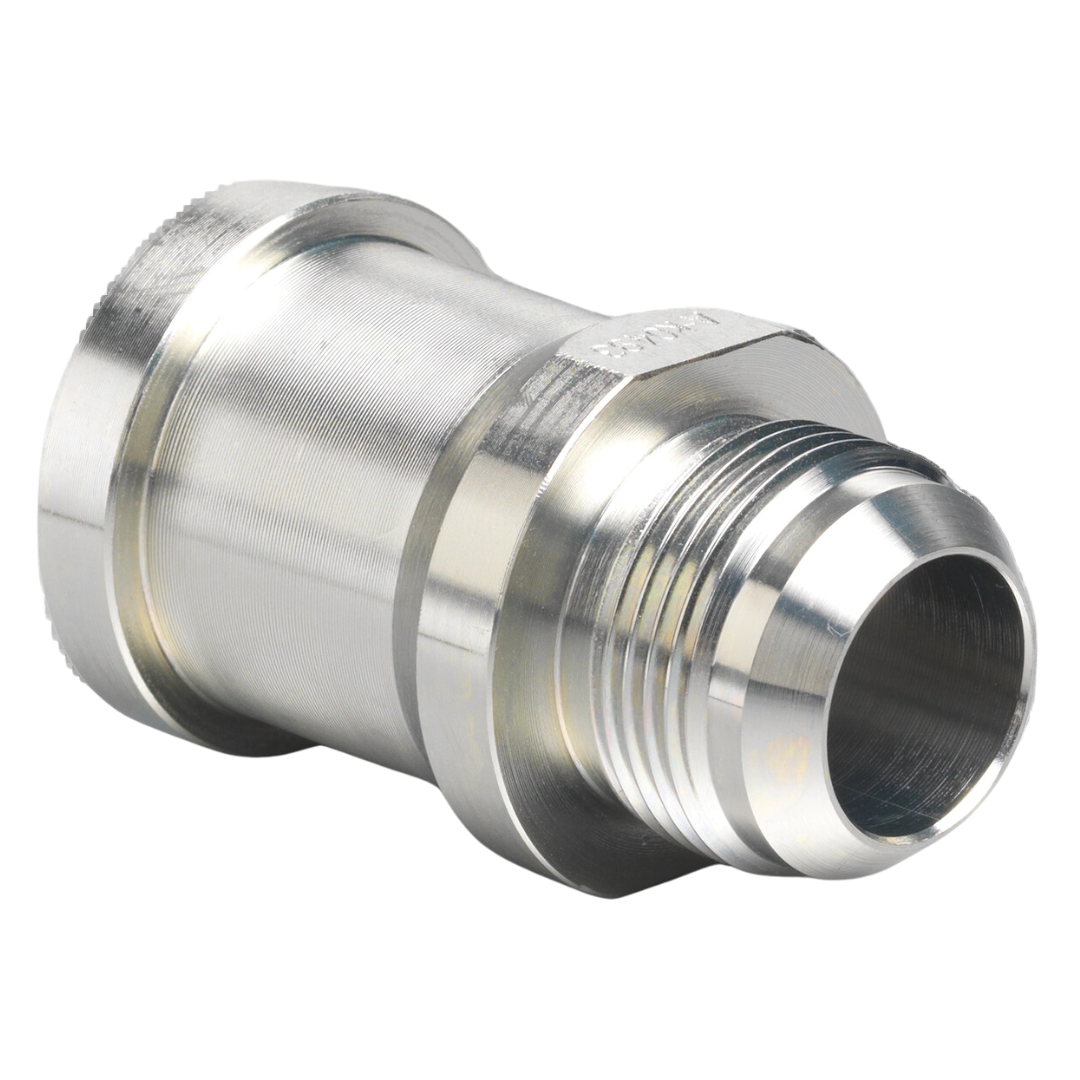

Anchor Fluid Power Series 300 Code 61 x JIC hydraulic straight split flange heads are key components used to create secure connections in hydraulic systems. Designed for lower pressure applications up to 3000 psi, these flange heads feature a straight, smooth surface that is compatible with Code 61 split flanges and JIC (Joint Industrial Council) fittings. The split flange heads are encased by two split flange halves, which are fastened around the head to form a strong, leak-proof seal. This setup is ideal for ensuring a reliable connection between hydraulic pipes and components.
