30AAX1L2F : DP Winch, 30,000lb Bare Drum Pull, 31.75" Base only, No Kickout, CCW, Less than 25GPM Motor, 6.13" Barrel x 12.12" Length x 14.69" Flange
30AAX1L2F : DP Winch, 30,000lb Bare Drum Pull, 31.75" Base only, No Kickout, CCW, Less than 25GPM Motor, 6.13" Barrel x 12.12" Length x 14.69" Flange
30AAX1L2F : DP Winch, 30,000lb Bare Drum Pull, 31.75" Base only, No Kickout, CCW, Less than 25GPM Motor, 6.13" Barrel x 12.12" Length x 14.69" Flange
Roll over image to zoom in Click on image to zoom
30AAX1L2F : DP Winch, 30,000lb Bare Drum Pull, 31.75" Base only, No Kickout, CCW, Less than 25GPM Motor, 6.13" Barrel x 12.12" Length x 14.69" Flange30AAX1L2F : DP Winch, 30,000lb Bare Drum Pull, 31.75" Base only, No Kickout, CCW, Less than 25GPM Motor, 6.13" Barrel x 12.12" Length x 14.69" Flange30AAX1L2F : DP Winch, 30,000lb Bare Drum Pull, 31.75" Base only, No Kickout, CCW, Less than 25GPM Motor, 6.13" Barrel x 12.12" Length x 14.69" Flange

30AAX1L2F : DP Winch, 30,000lb Bare Drum Pull, 31.75" Base only, No Kickout, CCW, Less than 25GPM Motor, 6.13" Barrel x 12.12" Length x 14.69" Flange

DP WinchSKU: 30AAX1L2F
6-8 Weeks
Price:
$9,673.99

Product Details

Special Message 31.75" Base only, 25GPM Motor
Data Sheet

Download Datasheet

Usually Ships Within 6-8 Weeks
Factory Location Jenks, Oklahoma

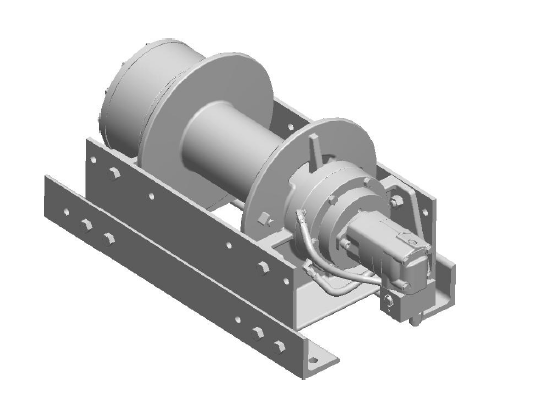

Solid Model

Click here to download

Service Manual Download

Click here to download

Hydraulic Motor Pressure 2500psi
Country of Manufacture United States

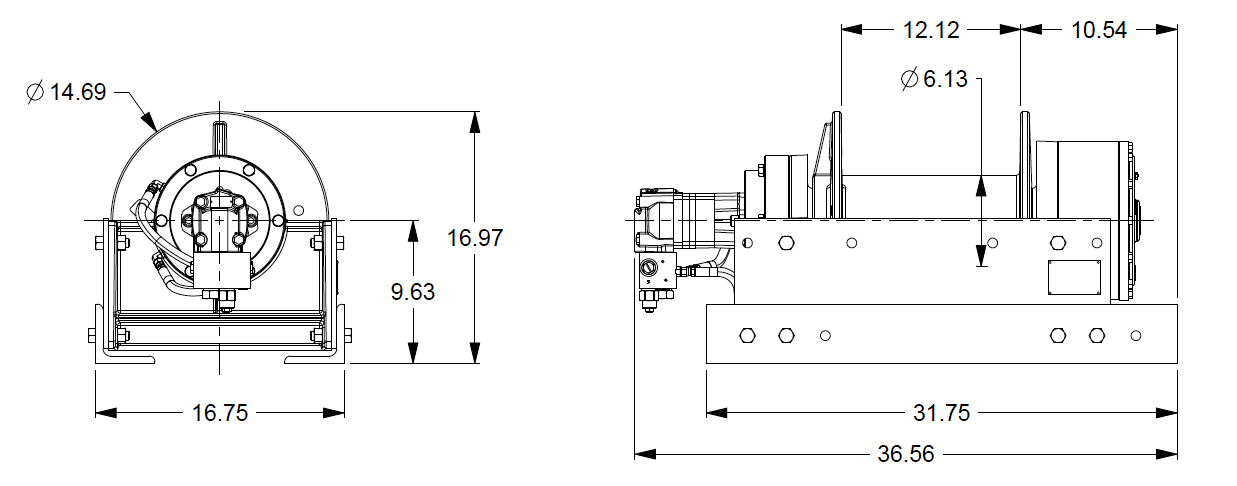

Height 16.97
Length 36.56
Width 16.75
Weight 552
Drum Flange Diameter 14.69"
Brake Option N/A
Drum Length 12.12"
Drum Rotation Counterclockwise
Max Bare Drum Line Pull 30,000 lbs
Max Full Drum Line Pull 15,600 lbs
Max Bare Drum Line Speed 29 ft/min
Max Full Drum Line Pull 15,600 lbs
Max Full Drum Line Speed 56 ft/min

Description

With over 75 years of experience and knowledge, TWG's planetary winches have the strength to pull you out of trouble. Their planetary winches are commonly used in the Infrastructure, Recovery, Energy & Marine markets custom built for each application. With line pull ratings from 3,000 lbs to 270,000 lbs, they have a winch that can handle your requirements.

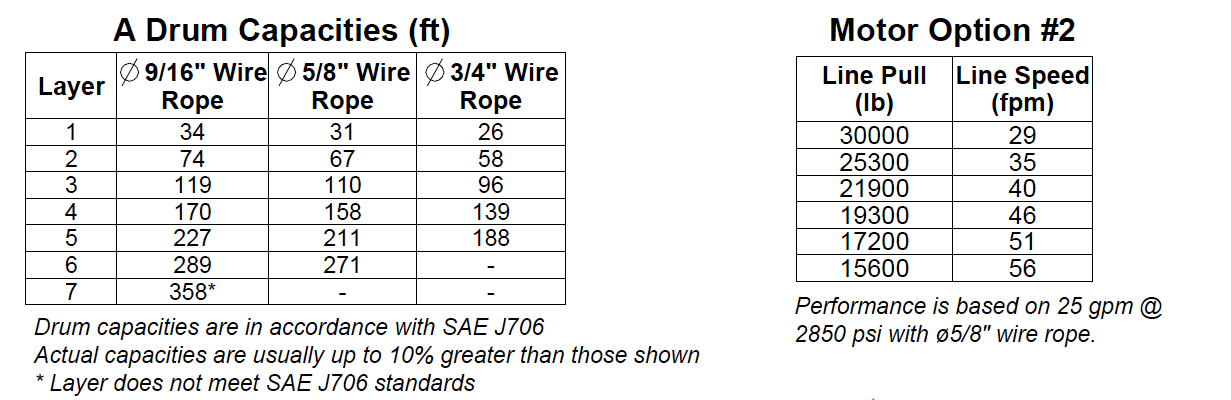

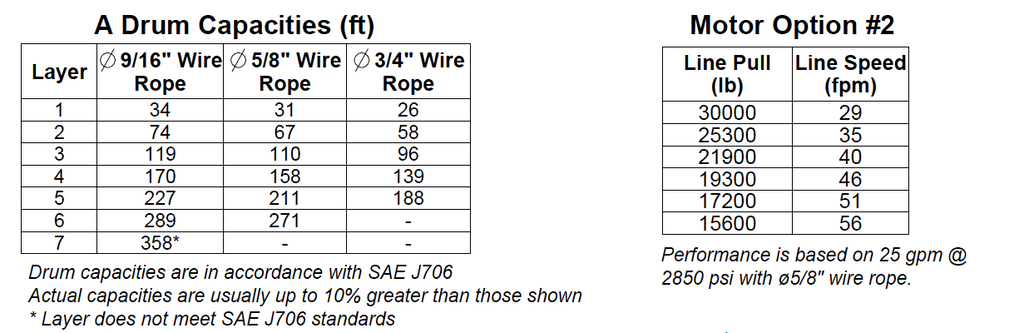

* 30,000lbs. capacity winch storing 329 ft. of 5/8” dia. rope

* 31.75" Base only

* No Kickout (Also known as a clutch, a ‘kickout’ is a mechanism that engages an input shaft to turn your winch)

* Counter-Clockwise Rotation ( Direction of drum rotation viewed from motor when paying in)

* Medium Flow ~ Under 25GPM

* 6.13" Barrel x 12.12" Length x 14.69" Flange
