Product Details
| Special Message | 47.75" Base with Fairlead & Air Cable Hold Down, 12VDC 2-Speed 25GPM Motor |
|---|---|
| Data Sheet | |
| Usually Ships Within | 6-8 Weeks |
| Factory Location | Jenks, Oklahoma |
| Solid Model | |
| Service Manual Download | |
| Hydraulic Motor Pressure | 2800psi |
| Country of Manufacture | United States |

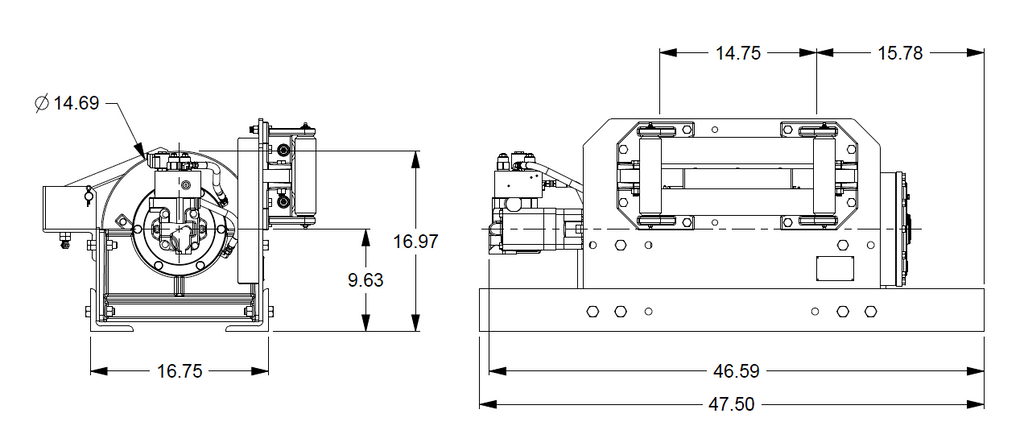

| Height | 16.97 |
| Length | 47.5 |
| Width | 16.75 |
| Weight | 802 |
| Drum Flange Diameter | 14.69" |
| Brake Option | N/A |
| Drum Length | 14.74" |
| Drum Rotation | Counterclockwise |
| Max Bare Drum Line Pull | 35,000 lbs |
| Max Full Drum Line Pull | 18,700 lbs |
| Max Bare Drum Line Speed | 24 ft/min |
| Max Full Drum Line Pull | 18,700 lbs |
| Max Full Drum Line Speed | 46 ft/min |
Description
With over 75 years of experience and knowledge, TWG's planetary winches have the strength to pull you out of trouble. Their planetary winches are commonly used in the Infrastructure, Recovery, Energy & Marine markets custom built for each application. With line pull ratings from 3,000 lbs to 270,000 lbs, they have a winch that can handle your requirements.

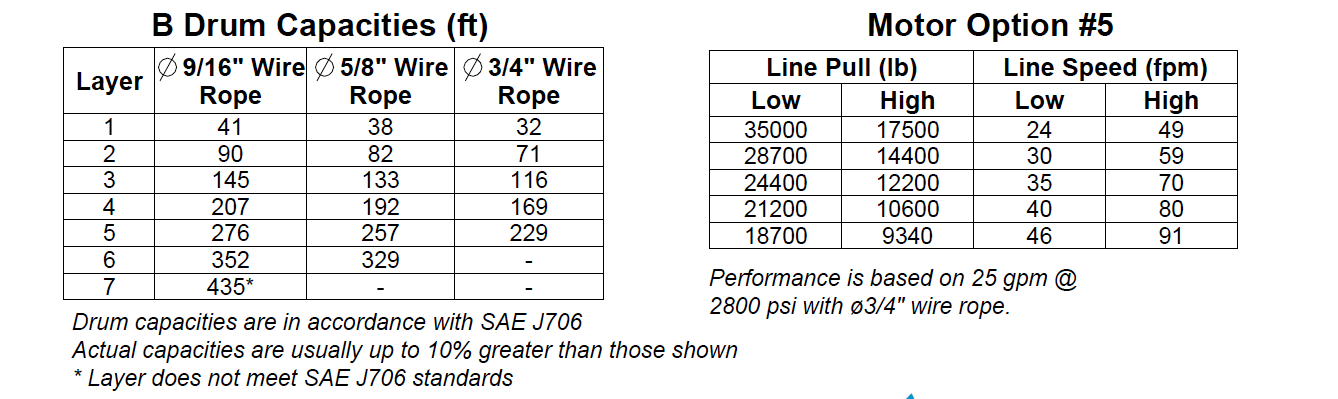

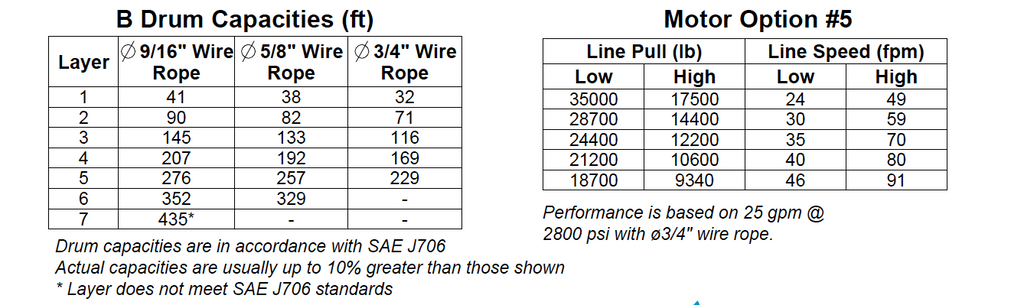

* 35,000lbs. capacity winch storing 229 ft. of 3/4” dia. rope

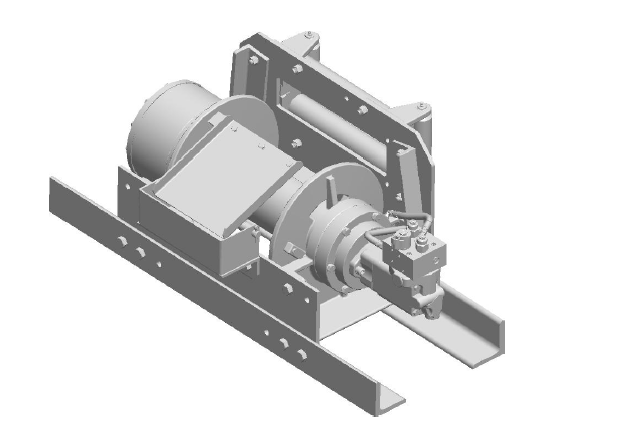

* 47.75" Base with Fairlead and Air Cable Hold Down (A ‘fairlead’ guides the cable out of the winch, typically a 4-roller design)
* No Kickout (Also known as a clutch, a ‘kickout’ is a mechanism that engages an input shaft to turn your winch. A Cable Holddown is a mechanism that holds the cable on the drum so it doesn’t unravel and become tangled under low tension; same function as a tensioner, but it is air-activated, allowing it to be adjusted easily)
* Counter-Clockwise Rotation ( Direction of drum rotation viewed from motor when paying in)
* 12VDC, 2-Speed ~ Under 25GPM
* 6.13" Barrel x 12.12" Length x 14.69" Flange
