Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 5 Days |
| Factory Location | Cincinnati, Ohio and Houston, Texas |
| Material | Carbon Steel |
| Flange Code | Code 61 |
| Flange Size | 0.75 (3/4") |
| Pressure Rating | 5000 |
| Sae Connector Flange Type | Split Flange Adapter |
| Fitting Angle | 90-Degree |
| Adapter Notes | 3/4-16 |
| Country of Manufacture | China |
| Height | 1.66 |
| Length | 1.5 |
| Width | 1.66 |
| Side 1 Gender | Male |
| Side 1 Size | 0.5 (1/2") |
| Side 1 Type | JIC |
Description

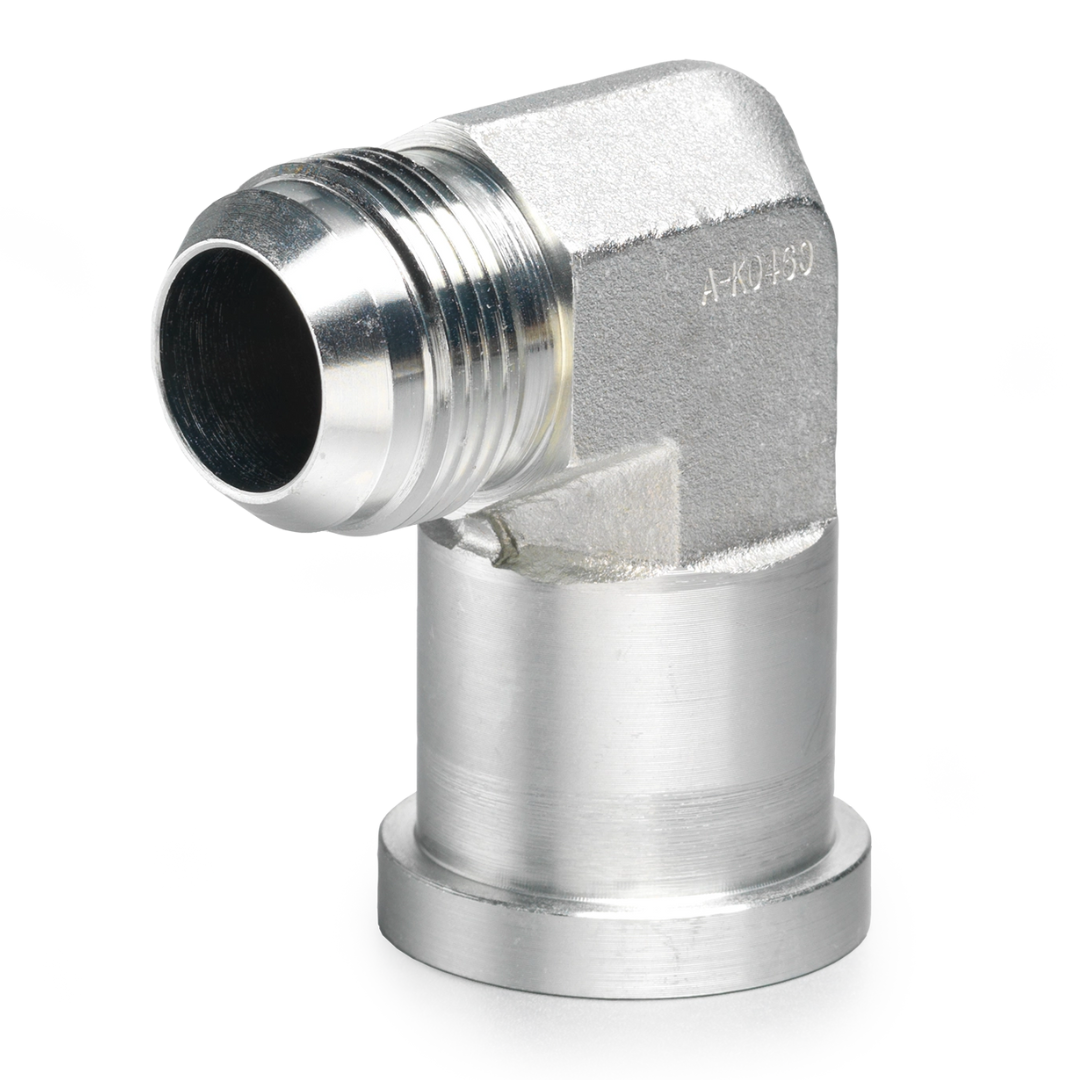

Anchor Fluid Power Series 390 Code 61 x Male JIC hydraulic 90-degree split flange heads are designed to connect hydraulic pipes or hoses at a right angle. These flange heads work with Code 61 split flanges, which are used for lower pressure systems. The 90-degree design allows for flexible routing in tight or complex spaces, while the Male JIC (Joint Industry Council) connection ensures a secure and reliable fit. The split flange system includes two separate halves that clamp around the flange head, creating a strong, leak-proof joint ideal for various hydraulic applications.
