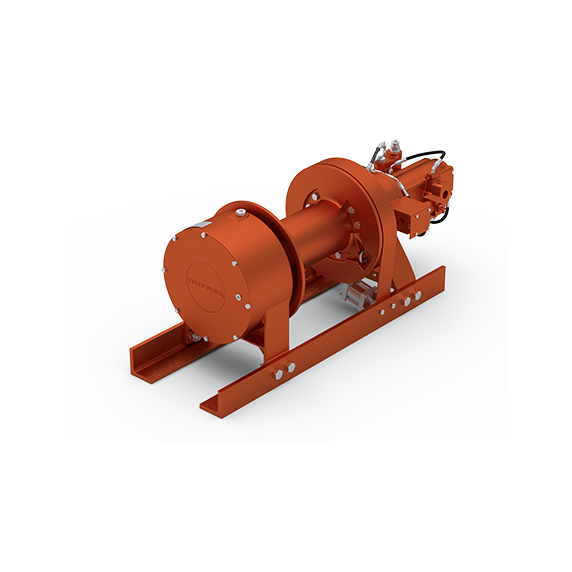

45BDX1L1D : DP Winch, 45,000lb Bare Drum Pull, 36" Formed Base only, No Kickout, CCW, More than 25GPM Motor, 7.5" Barrel x 16.34" Length x 17.5" Flange
Roll over image to zoom in Click on image to zoom
45BDX1L1D : DP Winch, 45,000lb Bare Drum Pull, 36" Formed Base only, No Kickout, CCW, More than 25GPM Motor, 7.5" Barrel x 16.34" Length x 17.5" Flange

45BDX1L1D : DP Winch, 45,000lb Bare Drum Pull, 36" Formed Base only, No Kickout, CCW, More than 25GPM Motor, 7.5" Barrel x 16.34" Length x 17.5" Flange

DP WinchSKU: 45BDX1L1D
6-8 Weeks
Price:
$13,669.99

Product Details

Special Message 36" Formed Base only, Hi Flow Greater than 25GPM Motor
Data Sheet Download Datasheet
Usually Ships Within 6-8 Weeks
Factory Location Jenks, Oklahoma
Hydraulic Motor Pressure 2600psi
Country of Manufacture United States
Height 21.75
Length 60
Width 16.63
Weight 930
Drum Flange Diameter 17.5"
Brake Option N/A
Drum Length 16.34"
Drum Rotation Counterclockwise
Max Bare Drum Line Pull 45,000 lbs
Max Full Drum Line Pull 23,600 lbs
Max Bare Drum Line Speed 40 ft/min
Max Full Drum Line Pull 23,600 lbs
Max Full Drum Line Speed 77 ft/min

Description

With over 75 years of experience and knowledge, TWG's planetary winches have the strength to pull you out of trouble. Their planetary winches are commonly used in the Infrastructure, Recovery, Energy & Marine markets custom built for each application. With line pull ratings from 3,000 lbs to 270,000 lbs, they have a winch that can handle your requirements.

* 45,000lbs. capacity winch storing 259 ft. of 3/4” dia. rope

* 36" Formed Base only

* No Kickout (Also known as a clutch, a ‘kickout’ is a mechanism that engages an input shaft to turn your winch)

* Counter-Clockwise Rotation ( Direction of drum rotation viewed from motor when paying in)

* High Flow ~ More than 25GPM

* 7.5" Barrel x 16.34" Length x 17.5" Flange
