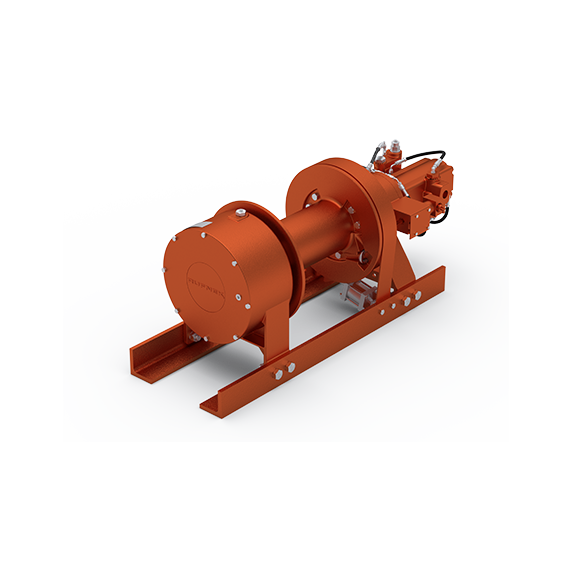

50BAB4L1B : DP Winch, 50,000lb Bare Drum Pull, 36" Base, Air/Hyd Kickout, CCW, More than 25GPM Motor, 7.5" Barrel x 16.75" Length x 17.5" Flange
Roll over image to zoom in Click on image to zoom
50BAB4L1B : DP Winch, 50,000lb Bare Drum Pull, 36" Base, Air/Hyd Kickout, CCW, More than 25GPM Motor, 7.5" Barrel x 16.75" Length x 17.5" Flange

50BAB4L1B : DP Winch, 50,000lb Bare Drum Pull, 36" Base, Air/Hyd Kickout, CCW, More than 25GPM Motor, 7.5" Barrel x 16.75" Length x 17.5" Flange

DP WinchSKU: 50BAB4L1B
6-8 Weeks
Price:
$15,464.43

Product Details

Data Sheet Download Datasheet
Usually Ships Within 6-8 Weeks
Factory Location Jenks, Oklahoma
Hydraulic Motor Pressure 2750psi
Country of Manufacture United States
Height 21.75
Length 43.94
Width 23.12
Weight 930
Drum Flange Diameter 17.5"
Brake Option N/A
Drum Length 16.34"
Drum Rotation Counterclockwise
Max Bare Drum Line Pull 50,000 lbs
Max Full Drum Line Pull 27,200 lbs
Max Bare Drum Line Speed 38 ft/min
Max Full Drum Line Pull 27,200 lbs
Max Full Drum Line Speed 69 ft/min

Description

With over 75 years of experience and knowledge, TWG's planetary winches have the strength to pull you out of trouble. Their planetary winches are commonly used in the Infrastructure, Recovery, Energy & Marine markets custom built for each application. With line pull ratings from 3,000 lbs to 270,000 lbs, they have a winch that can handle your requirements.
