Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Cincinnati, Ohio and Houston, Texas |
| Material | Carbon Steel |
| Flange Code | Code 62 |
| Flange Size | 1.25 (1-1/4") |
| Pressure Rating | 6000 |
| Sae Connector Flange Type | Split Flange Adapter |
| Fitting Angle | Straight |
| Adapter Notes | 1 5/8-12 |
| Country of Manufacture | China |
| Height | 2.125 |
| Length | 3.05 |
| Width | 2.125 |
| Side 1 Gender | Male |
| Side 1 Size | 1.25 (1-1/4") |
| Side 1 Type | JIC |
Description

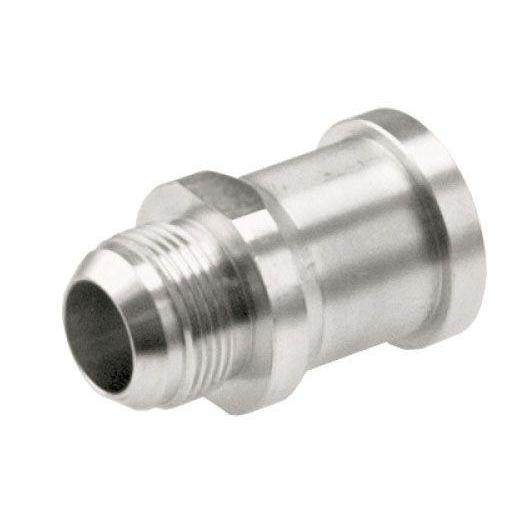

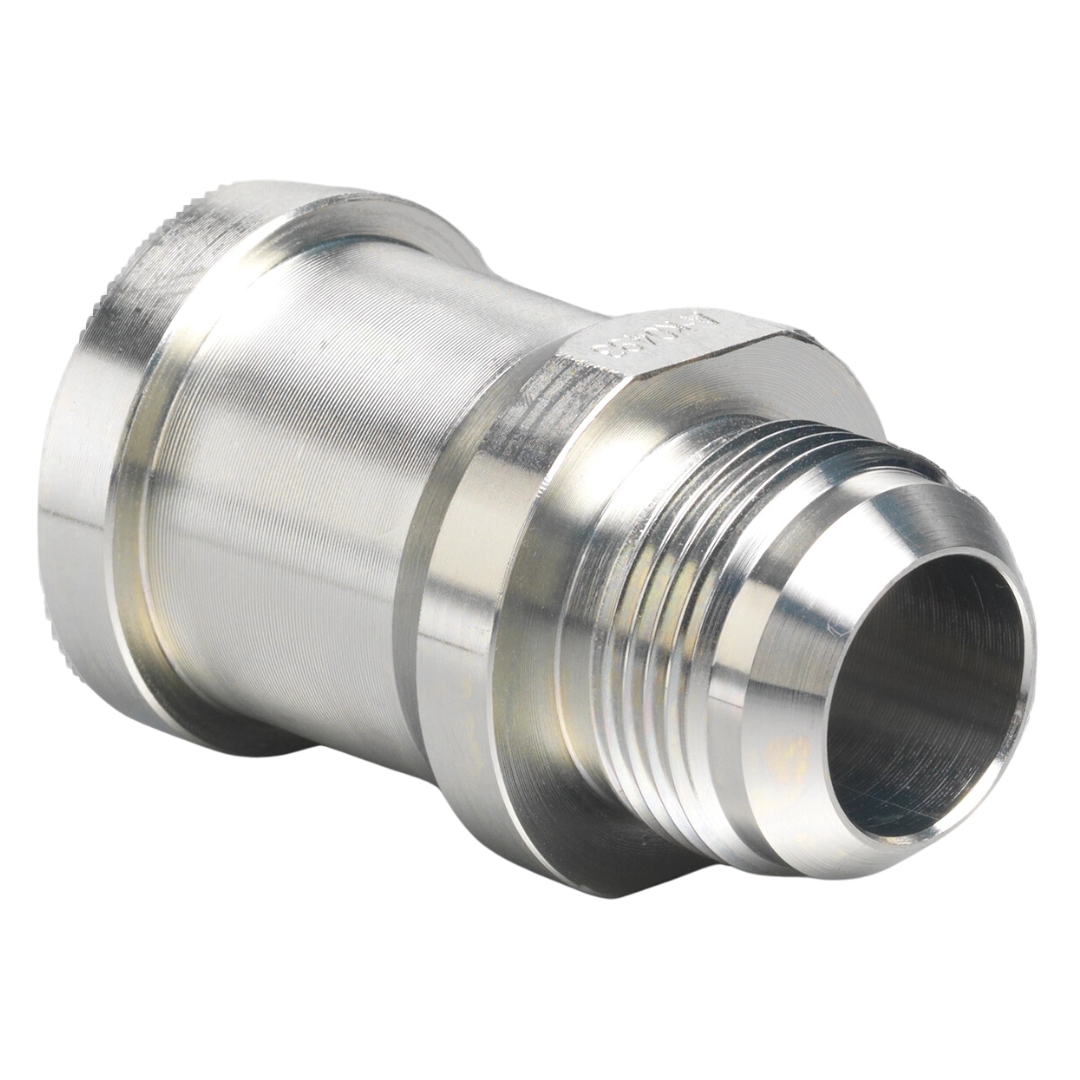

Our Anchor Fluid Power Series 600 Code 62 x JIC hydraulic straight split flange heads are designed for high-pressure hydraulic systems up to 6000 psi. These flange heads feature a straight, smooth surface that fits with Code 62 split flanges and JIC fittings. They are used with two split flange halves, which are secured around the head to create a strong, leak-proof connection. This setup is ideal for connecting hydraulic pipes and components securely, ensuring a reliable and durable seal in demanding applications.
