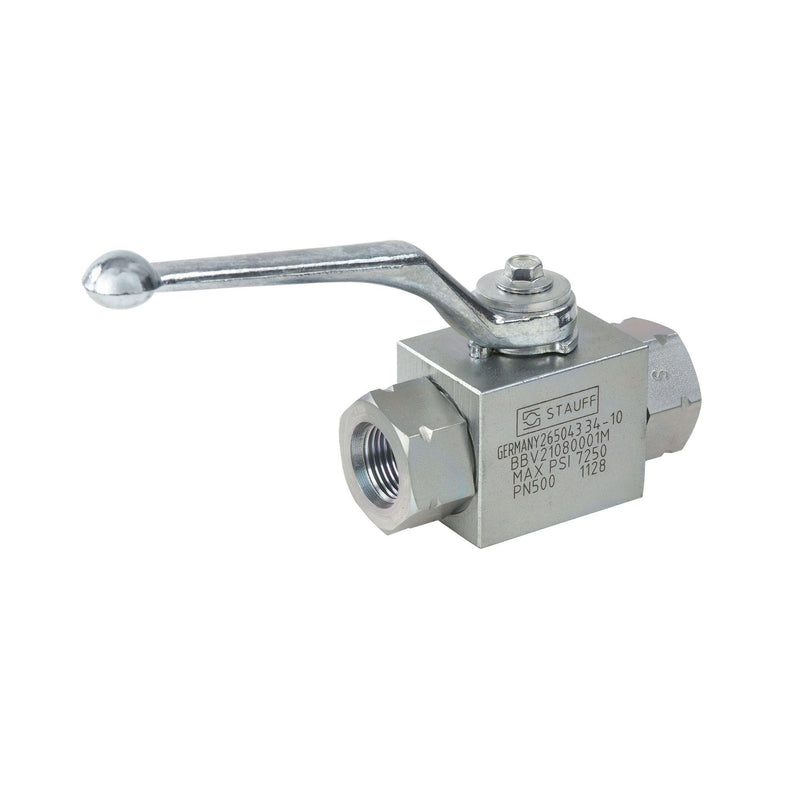

BBV-2-U08-8001-M : Stauff Block Body Ball Valve, #8 SAE (1/2"), Carbon Steel, 7250psi, 2-Way
Roll over image to zoom in Click on image to zoom
BBV-2-U08-8001-M : Stauff Block Body Ball Valve, #8 SAE (1/2"), Carbon Steel, 7250psi, 2-Way

BBV-2-U08-8001-M : Stauff Block Body Ball Valve, #8 SAE (1/2"), Carbon Steel, 7250psi, 2-Way

Save $15.29
StauffSKU: 6100075983
3-5 Days
Price:
$50.99 $66.28

Product Details

Data Sheet Download Datasheet
Usually Ships Within 3-5 Days
Factory Location Canton, Michigan
Port Size #8 SAE (1/2")
O Ring Seals Viton
Pressure Rating 7250
Body Material Carbon Steel
Ball Seal Delrin
Ball Pattern On/Off
Ball Valve Pressure Range High Pressure (5000 to 9999psi)
Flow Style Two-Way
Country of Manufacture Germany
Height 2.11
Length 3.25
Width 1.37
Weight 1.54
Ball Valve Type Standard

Description

Stauff's two-way high-pressure block body ball valve is designed for use as an on/off device for hydraulic applications. The body, ball and stem are available in carbon and stainless steel, and a variety of end connections are available.
