Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Waldwick, New Jersey |
| Nominal Pipe Size | 1.25 inch Pipe |
| Outside Diameter | 1.65" (42mm) |
| Hardware Material | Carbon Steel |
| Clamp Style | Standard Rail Mount |
| Clamp Type | Pipe Clamp |
| Clamp Group Size | Stauff Group 5 (DIN 5) |
| Country of Manufacture | Germany |
| Height | 2.28 |
| Length | 2.8 |
| Width | 1.18 |
| Weight | 0.5 |
Description

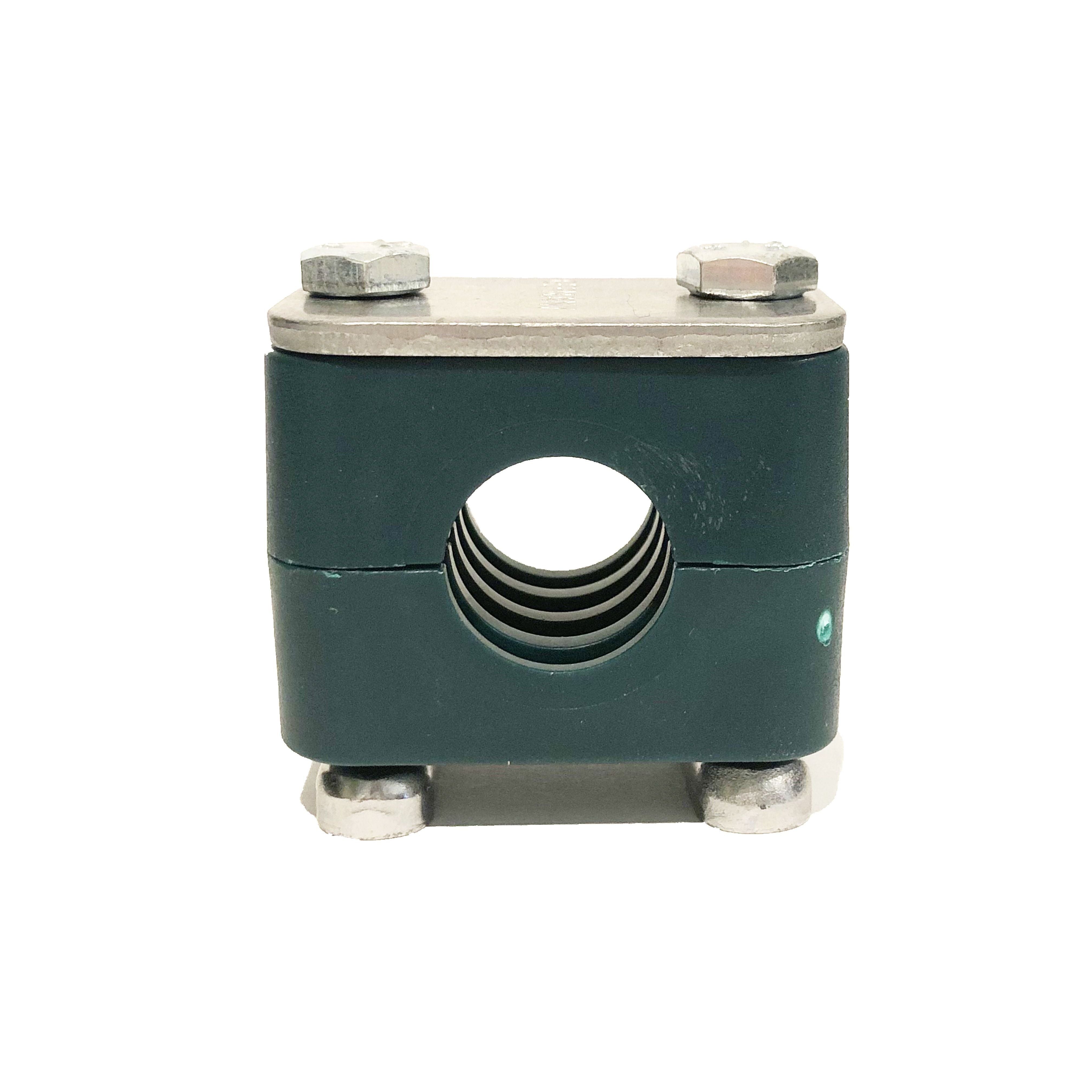

Globally, Stauff clamps represent quick and easy pipe and hose installations, as well as a clean system layout. The vibration and noise reducing features provide and important contribution to environmental protection. Pipe is typically called out by inner diameter size and tube is typically measured by outer diameter size, so be sure to verify the OD of your pipe or tube prior to ordering. The Outside Diameter is the the size of the hole in the insert that your clamp will come with. The Nominal pipe/tube size is the size of pipe or tube that will fit that particular clamp. If you're not sure which size you need, please give us a call and we will be happy to help.
| Product SKU | Clamp Type | Outside Diameter | Nominal Pipe Size | Clamp Group Size | Hardware Material | Insert Texture | Lead Time | Price |
|---|---|---|---|---|---|---|---|---|
| 6100093991 | Pipe Clamp | 0.394" (10mm) | 1/8 inch Pipe | Stauff Group 1A (DIN 1) | Carbon Steel | Profiled Interior with Tension Clearance | 4-6 Weeks | $5.99 |
| SM-110A-PP-DP-AS-U-W5 | Pipe Clamp | 0.394" (10mm) | 1/8 inch Pipe | Stauff Group 1A (DIN 1) | 316 Stainless Steel | Profiled Interior with Tension Clearance | 4-6 Weeks | $13.99 |
| 6100094001 | Pipe Clamp | 0.53" (13.5mm) | 1/4 inch Pipe | Stauff Group 2 (DIN 2) | Carbon Steel | Profiled Interior with Tension Clearance | 4-6 Weeks | $5.99 |
| SM-213.5-PP-DP-AS-U-W5 | Pipe Clamp | 0.53" (13.5mm) | 1/4 inch Pipe | Stauff Group 2 (DIN 2) | 316 Stainless Steel | Profiled Interior with Tension Clearance | 4-6 Weeks | $14.99 |
| 6100114298 | Pipe Clamp | 0.53" (13.5mm) | 1/4 inch Pipe | Stauff Group 2 (DIN 2) | Carbon Steel | Same Day | $5.99 | |
| 6100080819 | Pipe Clamp | 0.677" (17.2mm) | 3/8 inch Pipe | Stauff Group 2 (DIN 2) | Carbon Steel | Profiled Interior with Tension Clearance | 4-6 Weeks | $5.99 |
| SM-217.2-PP-DP-AS-U-W5 | Pipe Clamp | 0.677" (17.2mm) | 3/8 inch Pipe | Stauff Group 2 (DIN 2) | 316 Stainless Steel | Profiled Interior with Tension Clearance | 4-6 Weeks | $23.99 |
| 6100080867 | Pipe Clamp | 0.84" (21.3mm) | 1/2 inch Pipe | Stauff Group 3 (DIN 3) | Carbon Steel | Profiled Interior with Tension Clearance | 4-6 Weeks | $5.99 |
| SM-321.3-PP-DP-AS-U-W5 | Pipe Clamp | 0.84" (21.3mm) | 1/2 inch Pipe | Stauff Group 3 (DIN 3) | 316 Stainless Steel | Profiled Interior with Tension Clearance | 4-6 Weeks | $24.99 |
| SM-321.3-PP-H-DP-AS-U-W3 | Pipe Clamp | 0.84" (21.3mm) | 1/2 inch Pipe | Stauff Group 3 (DIN 3) | Carbon Steel | 4-6 Weeks | $5.99 | |
| 6100080904 | Pipe Clamp | 1.06" (26.9mm) | 3/4 inch Pipe | Stauff Group 4 (DIN 4) | Carbon Steel | Profiled Interior with Tension Clearance | 4-6 Weeks | $5.99 |
| SM-426.9-PP-DP-AS-U-W5 | Pipe Clamp | 1.06" (26.9mm) | 3/4 inch Pipe | Stauff Group 4 (DIN 4) | 316 Stainless Steel | Profiled Interior with Tension Clearance | 4-6 Weeks | $26.99 |
| 6100062458 | Pipe Clamp | 1.327" (33.7mm) | 1 inch Pipe | Stauff Group 5 (DIN 5) | Carbon Steel | Profiled Interior with Tension Clearance | 4-6 Weeks | $5.99 |
| 6100080976 | Pipe Clamp | 1.65" (42mm) | 1.25 inch Pipe | Stauff Group 5 (DIN 5) | Carbon Steel | Profiled Interior with Tension Clearance | 4-6 Weeks | $5.99 |
| 6100080992 | Pipe Clamp | 1.9" (48.3mm) | 1.5 inch Pipe | Stauff Group 6 (DIN 6) | Carbon Steel | Profiled Interior with Tension Clearance | Same Day | $7.99 |
| SM-648.3-PP-DP-AS-U-W5 | Pipe Clamp | 1.9" (48.3mm) | 1.5 inch Pipe | Stauff Group 6 (DIN 6) | 316 Stainless Steel | Profiled Interior with Tension Clearance | 4-6 Weeks | $34.99 |
| 6100081015 | Pipe Clamp | 2.37" (60.3mm) | 2 inch Pipe | Stauff Group 7 (DIN 7) | Carbon Steel | Profiled Interior with Tension Clearance | Same Day | $12.99 |
| SM-760.3-PP-DP-AS-U-W5 | Pipe Clamp | 2.37" (60.3mm) | 2 inch Pipe | Stauff Group 7 (DIN 7) | 316 Stainless Steel | Profiled Interior with Tension Clearance | Same Day | $37.99 |
| 6100081022 | Pipe Clamp | 2.874" (73mm) | 2.5 inch Pipe | Stauff Group 7 (DIN 7) | Carbon Steel | Profiled Interior with Tension Clearance | Same Day | $12.99 |
| SM-773-PP-DP-AS-U-W5 | Pipe Clamp | 2.874" (73mm) | 2.5 inch Pipe | Stauff Group 7 (DIN 7) | 316 Stainless Steel | Profiled Interior with Tension Clearance | Same Day | $57.99 |
| 6100081032 | Pipe Clamp | 3.5" (88.9mm) | 3 inch Pipe | Stauff Group 8 (DIN 8) | Carbon Steel | Profiled Interior with Tension Clearance | 4-6 Weeks | $18.99 |
| SM-888.9-PP-DP-AS-U-W5 | Pipe Clamp | 3.5" (88.9mm) | 3 inch Pipe | Stauff Group 8 (DIN 8) | 316 Stainless Steel | Profiled Interior with Tension Clearance | 4-6 Weeks | $51.99 |
