Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Stainless Steel |
| Shape | 90-Degree |
| Pressure Rating | 5000 |
| Series | 6500-FG |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 7/8-14 (-10) |
| Side 1 Type | JIC |
| Side 2 Gender | FEMALE |
| Side 2 Size | 7/8-14 (-10) |
| Side 2 Type | JIC |
Description

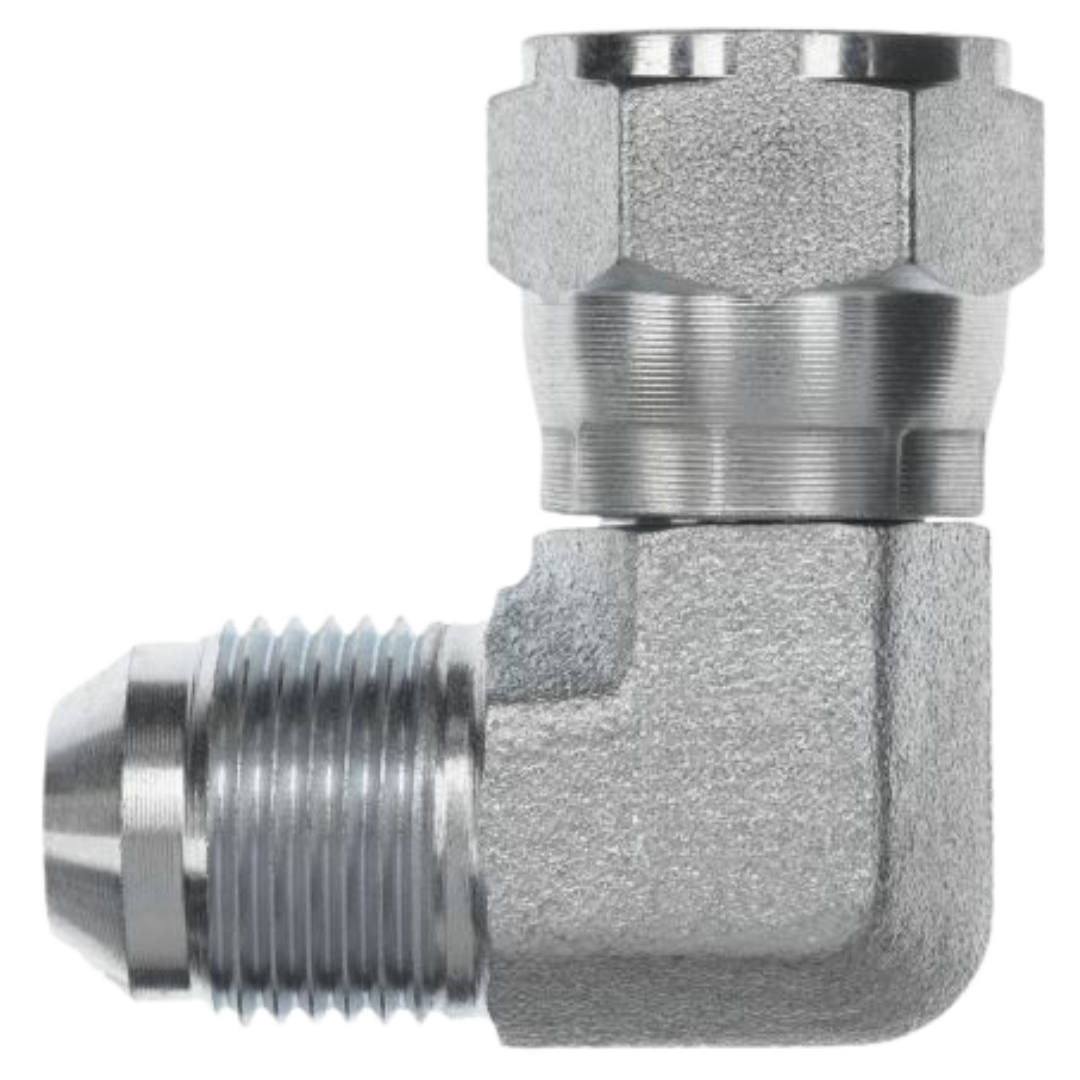

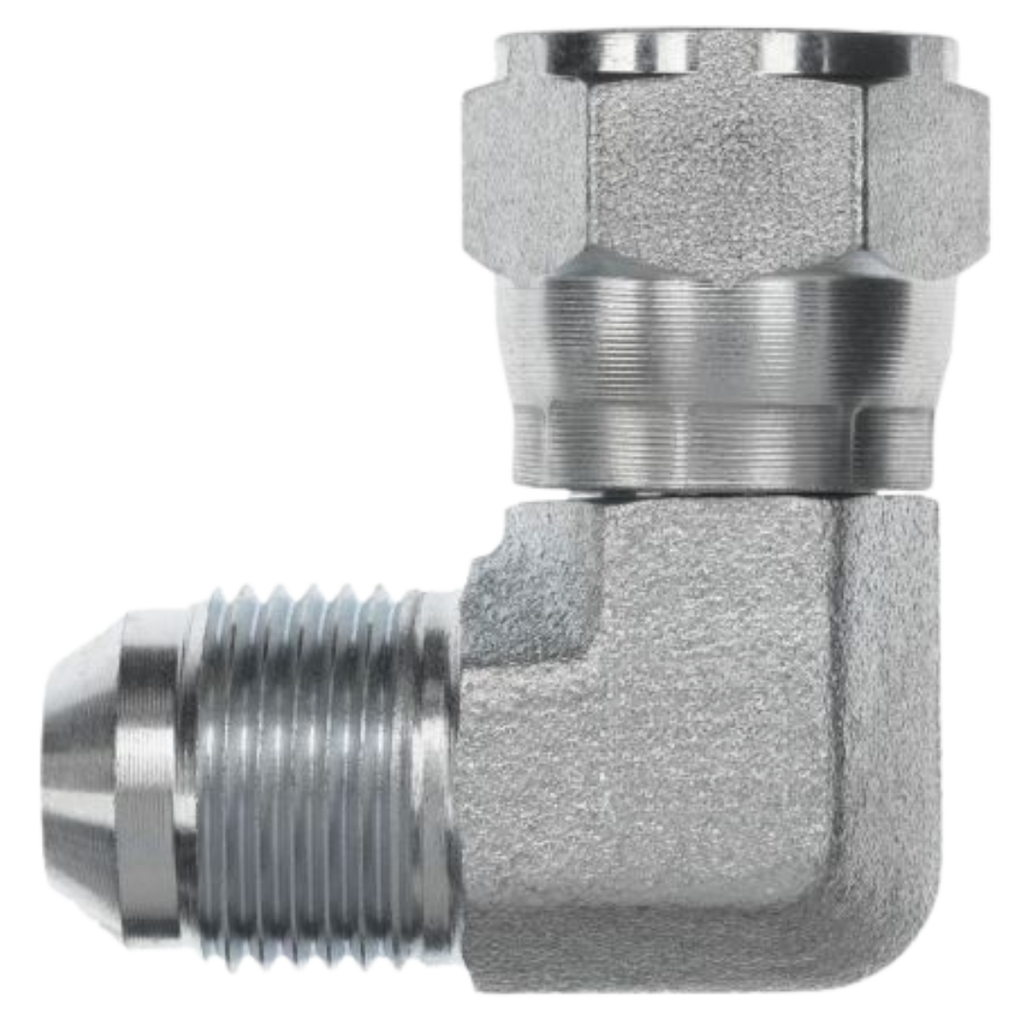

The Series 6500-SS 90-Degree Angled Male JIC x Female JIC Swivel adapters are high-quality stainless steel fittings used to create secure, leak-free connections in hydraulic systems. Featuring SAE J514 JIC/37° hydraulic connections, these adapters are common in fluid power applications. Both the male and female components have 37° seats, ensuring a strong, mechanical seal when the male flared and female coned seats meet. Designed for high-pressure use, these stainless steel adapters provide excellent durability and corrosion resistance. It’s important to remember that while SAE 37° and SAE 45° fittings share similar threads, they have different seat angles, and mixing the two can result in leakage. The Series 6500-SS is specifically designed for use with 37° JIC fittings, offering optimal performance and reliability.
