Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | 90-Degree |
| Pressure Rating | 5000 |
| Series | 6500-L-FG |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 7/8-14 (-10) |
| Side 1 Type | JIC |
| Side 2 Gender | FEMALE |
| Side 2 Size | 7/8-14 (-10) |
| Side 2 Type | JIC |
Description

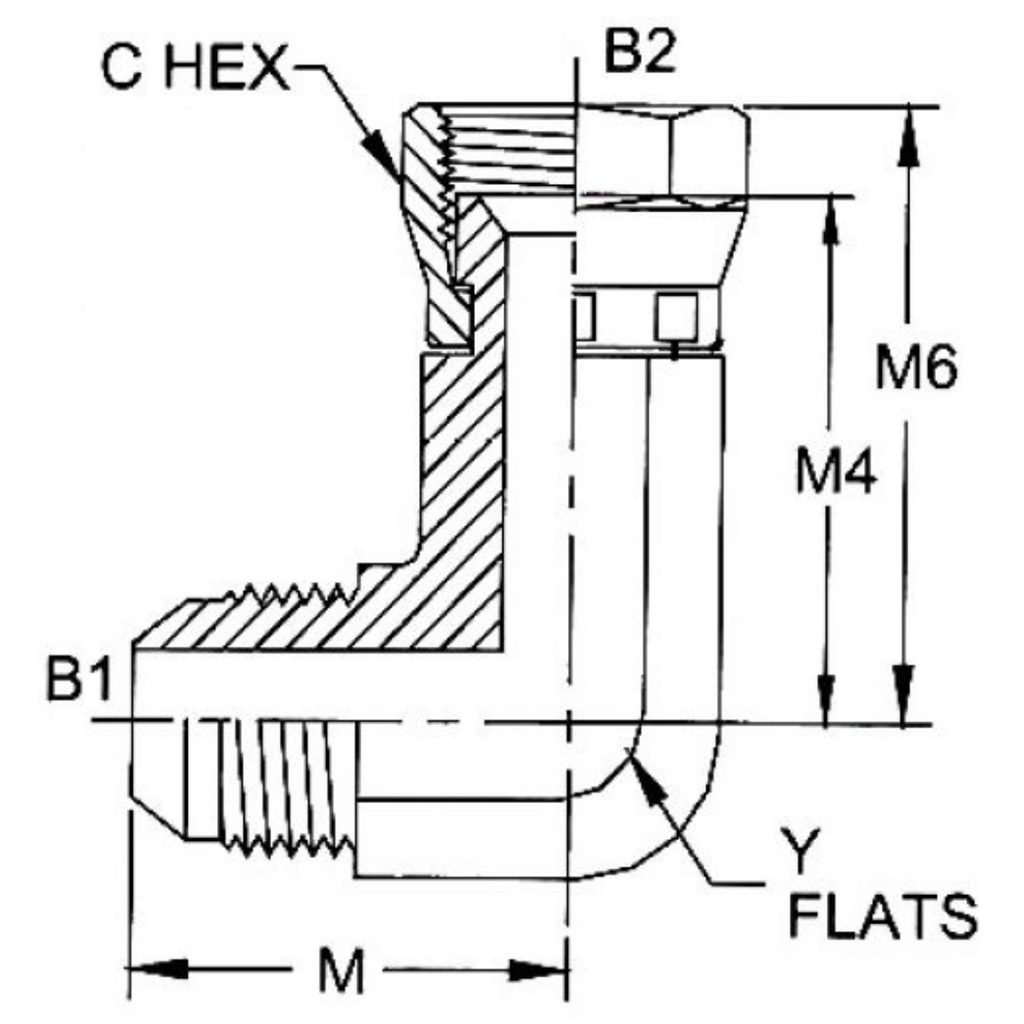

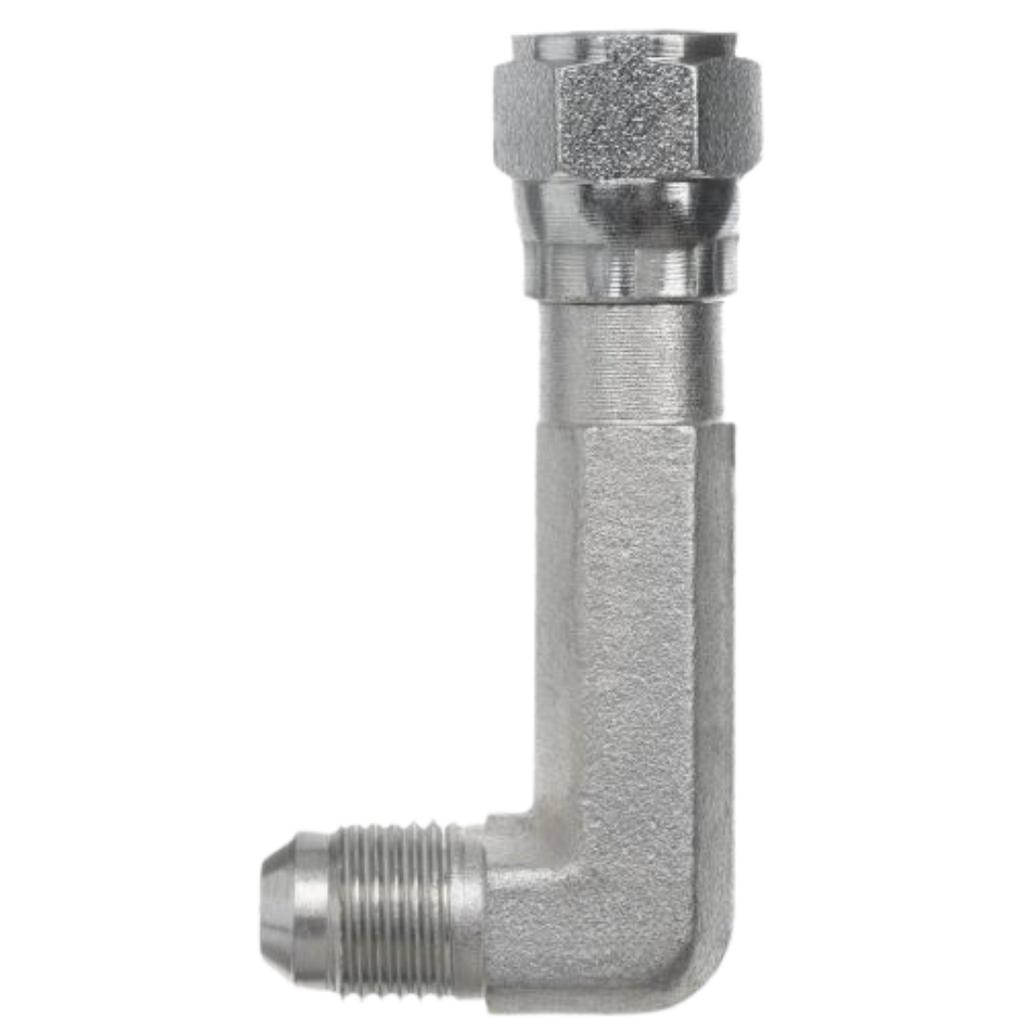

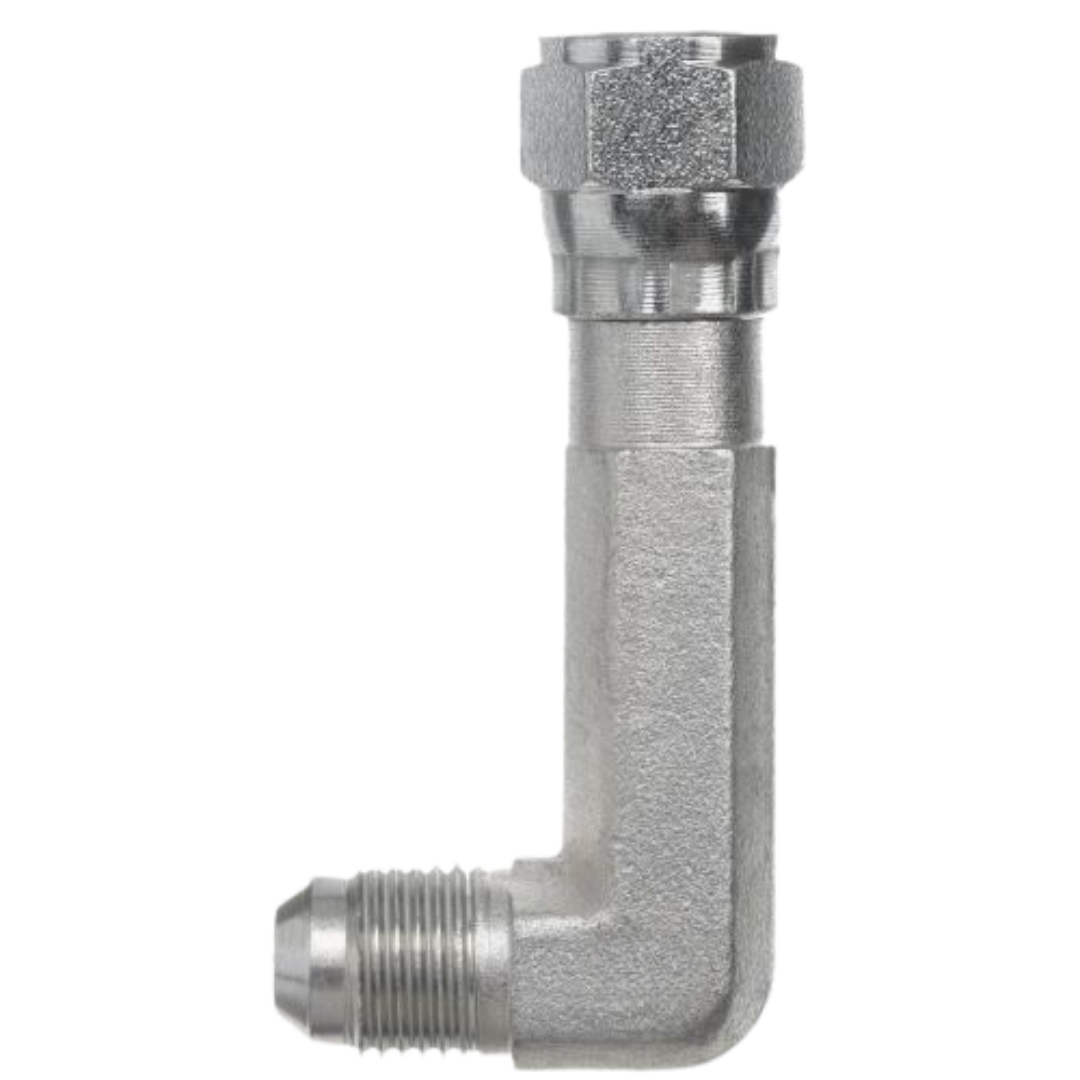

Our Series 6500-L Long 90-Degree Male JIC x Female JIC Swivel Adapters, made from durable carbon steel, are designed for creating secure, flexible connections in hydraulic systems. These adapters feature a 90-degree angle, with a male JIC (Joint Industry Council) fitting on one side and a female JIC fitting on the other. JIC fittings, defined by SAE J514, are known for their 37-degree flare seating surface and parallel threads, ensuring a reliable, leak-free seal in high-pressure systems. The long design offers added length for better clearance and ease of installation in tight spaces, while the swivel feature allows for rotation without compromising the connection. Ideal for a variety of fluid power applications, these adapters deliver both durability and performance in demanding industrial environments.
