Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Stainless Steel |
| Shape | 45-Degree |
| Pressure Rating | 5400 |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 3/4-16 (-08) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 9/16-18 (-06) |
| Side 2 Type | ORB |
Description

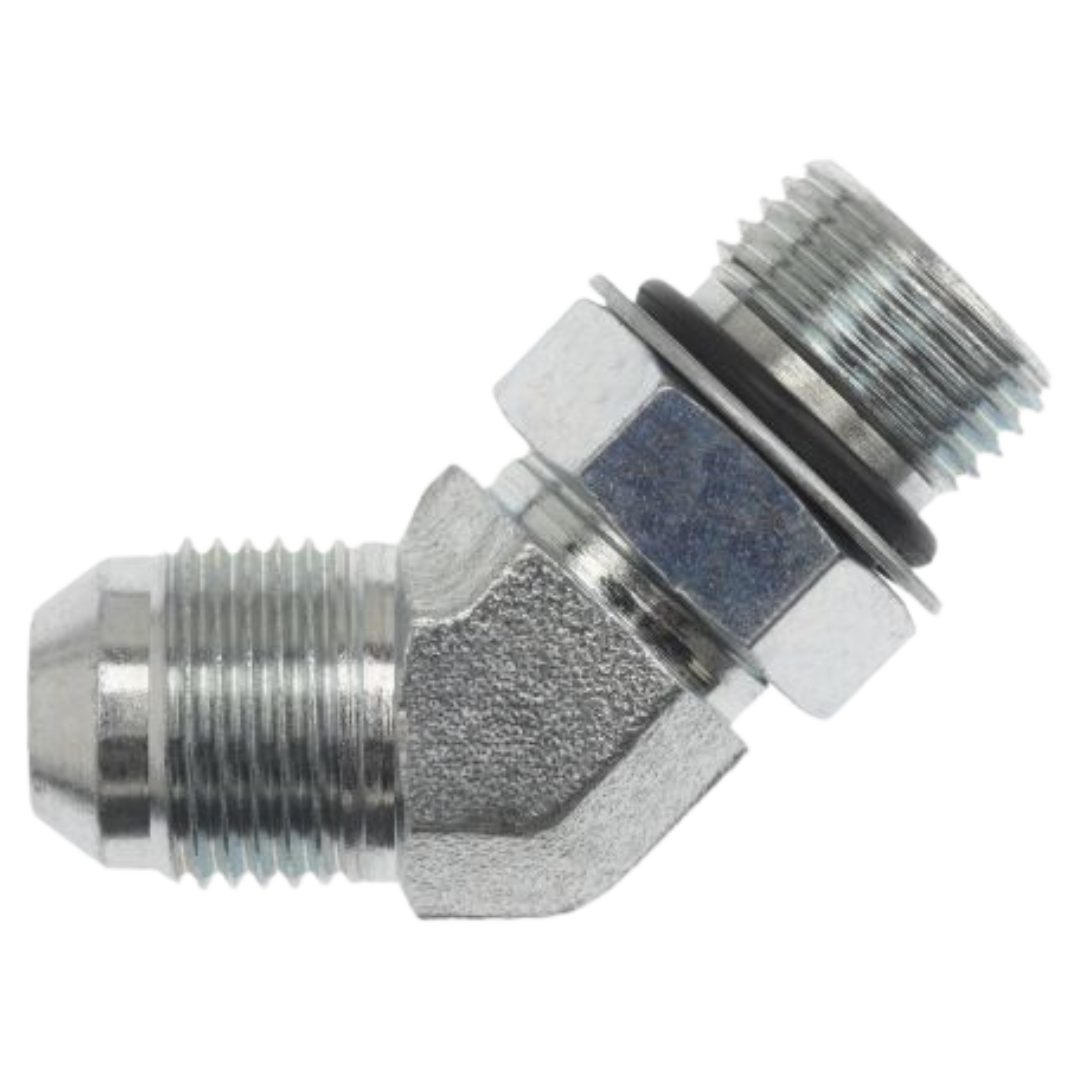

The Series 6802-SS 45-Degree MJIC x Male Adjustable ORB adapters, made from high-quality stainless steel, are ideal for fluid power systems, particularly in high-pressure applications. These adapters feature male JIC (Joint Industry Council SAE J514) fittings with 37° tapered seats, which create a secure mechanical seal when the male flared seat contacts the female coned seat. The male ORB (O-Ring Boss) connection uses a straight thread with an O-ring, which forms a reliable seal when compressed into a chamfered surface on the female port. This design, recommended by the National Fire Protection Association (NFPA) for leak prevention, ensures a secure and leak-free connection in hydraulic systems. It's important to avoid mixing SAE 37° and SAE 45° fittings, as their different seat angles can lead to leakage. Proper measurement of seat angles is essential for maintaining a reliable, high-performance connection.
