Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | 45-Degree |
| Pressure Rating | 6000 |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 7/16-20 (-04) |
| Side 1 Type | ORB |
| Side 2 Gender | FEMALE |
| Side 2 Size | 7/16-20 (-04) |
| Side 2 Type | JIC |
Description

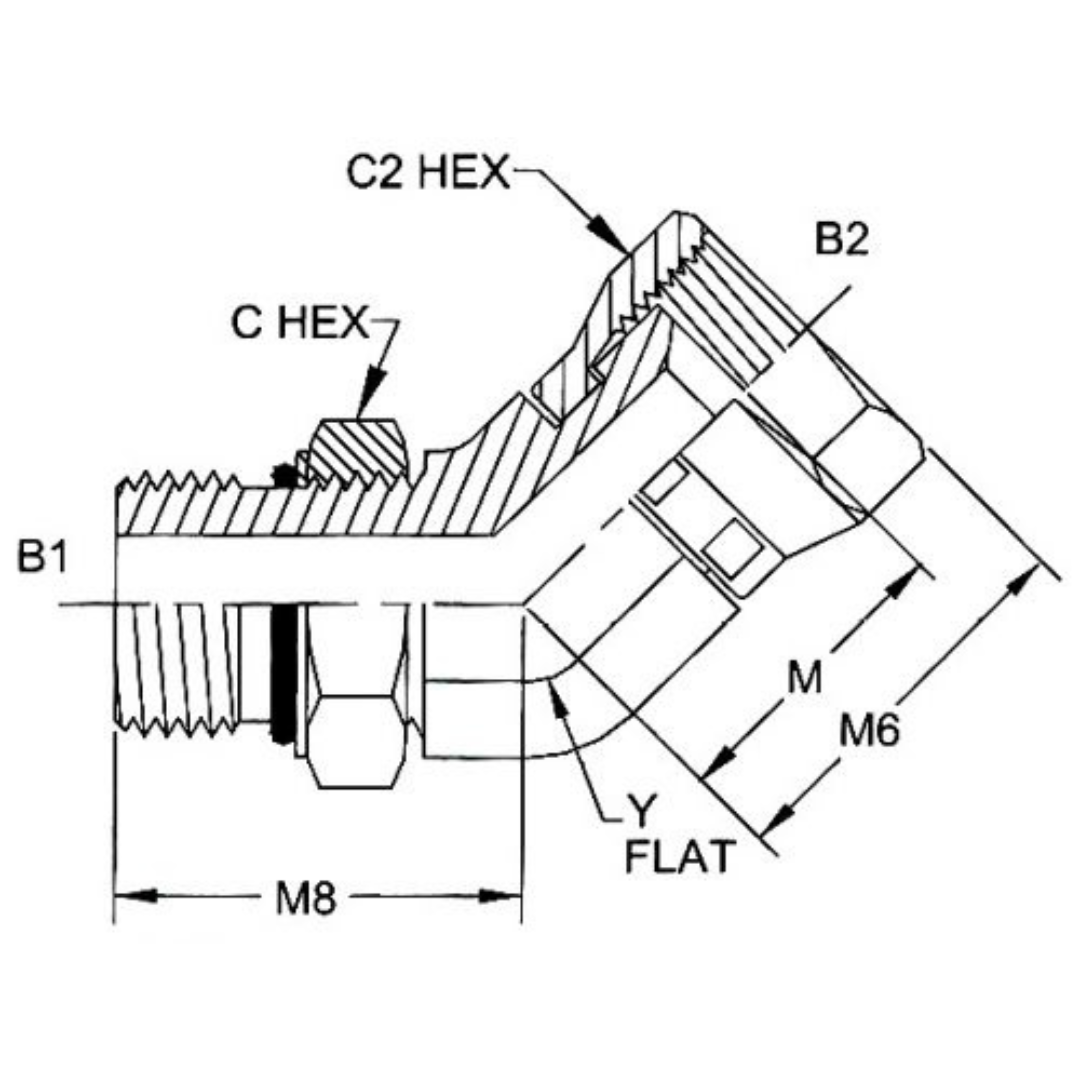

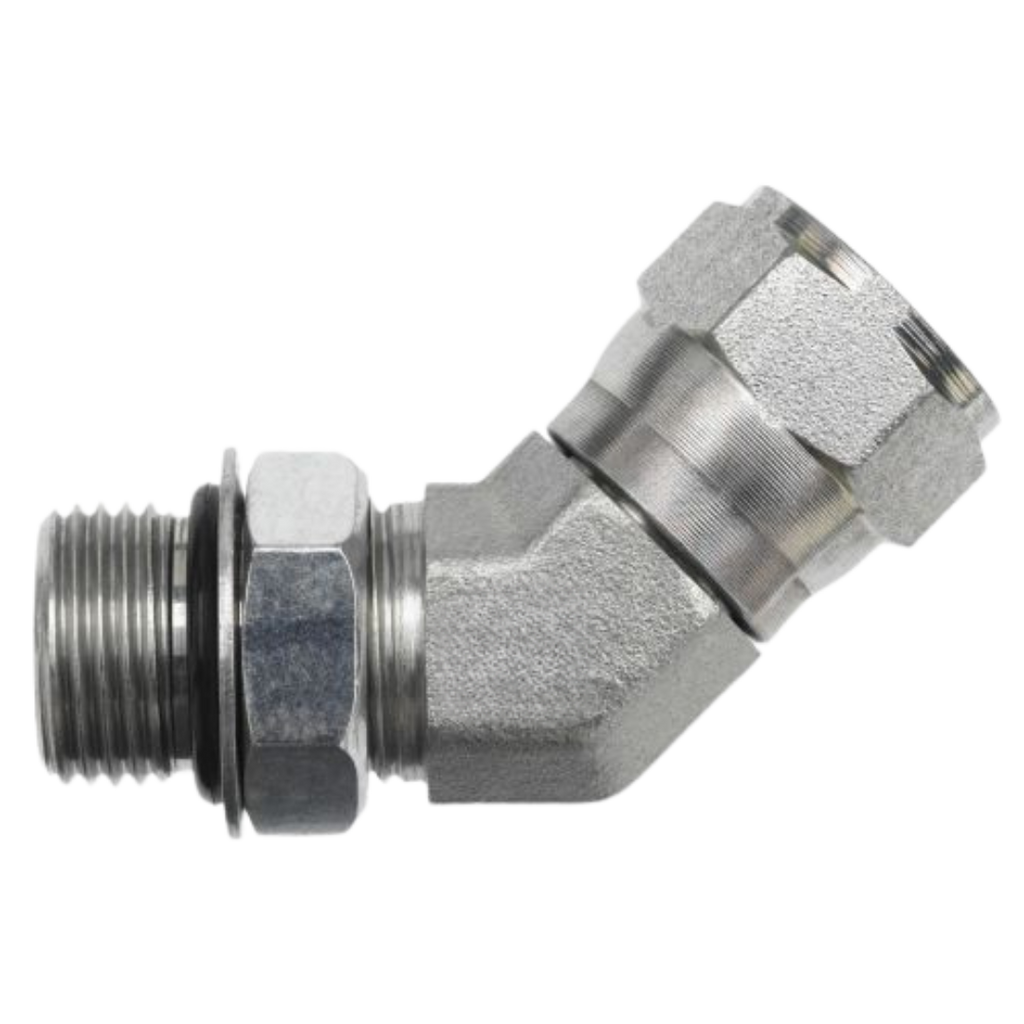

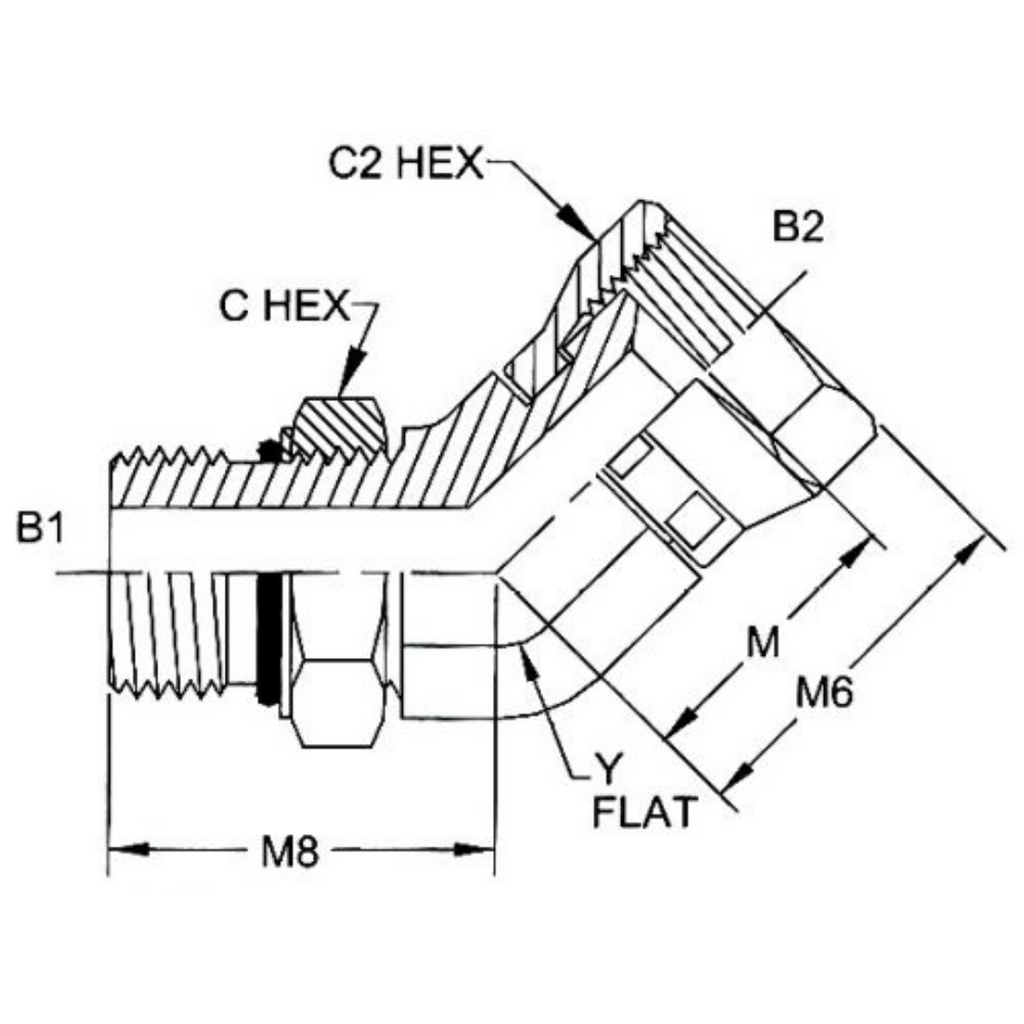

The Series 6810-NWO 45-Degree Male Adjustable ORB x Female JIC Swivel adapters are designed for high-pressure hydraulic systems, combining two reliable connection styles: SAE J1926 Straight Thread O-Ring Boss (ORB) and SAE J514 JIC/37° Hydraulic. The male ORB connection features a straight thread with an O-ring, which seals when compressed into a chamfered surface on the female port, ensuring a leak-free connection. The female JIC connection, commonly used in fluid power systems, has a 37° coned seat that forms a mechanical seal with the male flared seat. The swivel design offers flexibility in installations, allowing easy orientation adjustments while maintaining secure, reliable connections. These adapters are ideal for applications requiring high-pressure performance and effective leak prevention, and they meet the National Fire Protection Association (NFPA) recommendations for hydraulic systems.
