Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Tee |
| Series | 6835-NWO-FG |

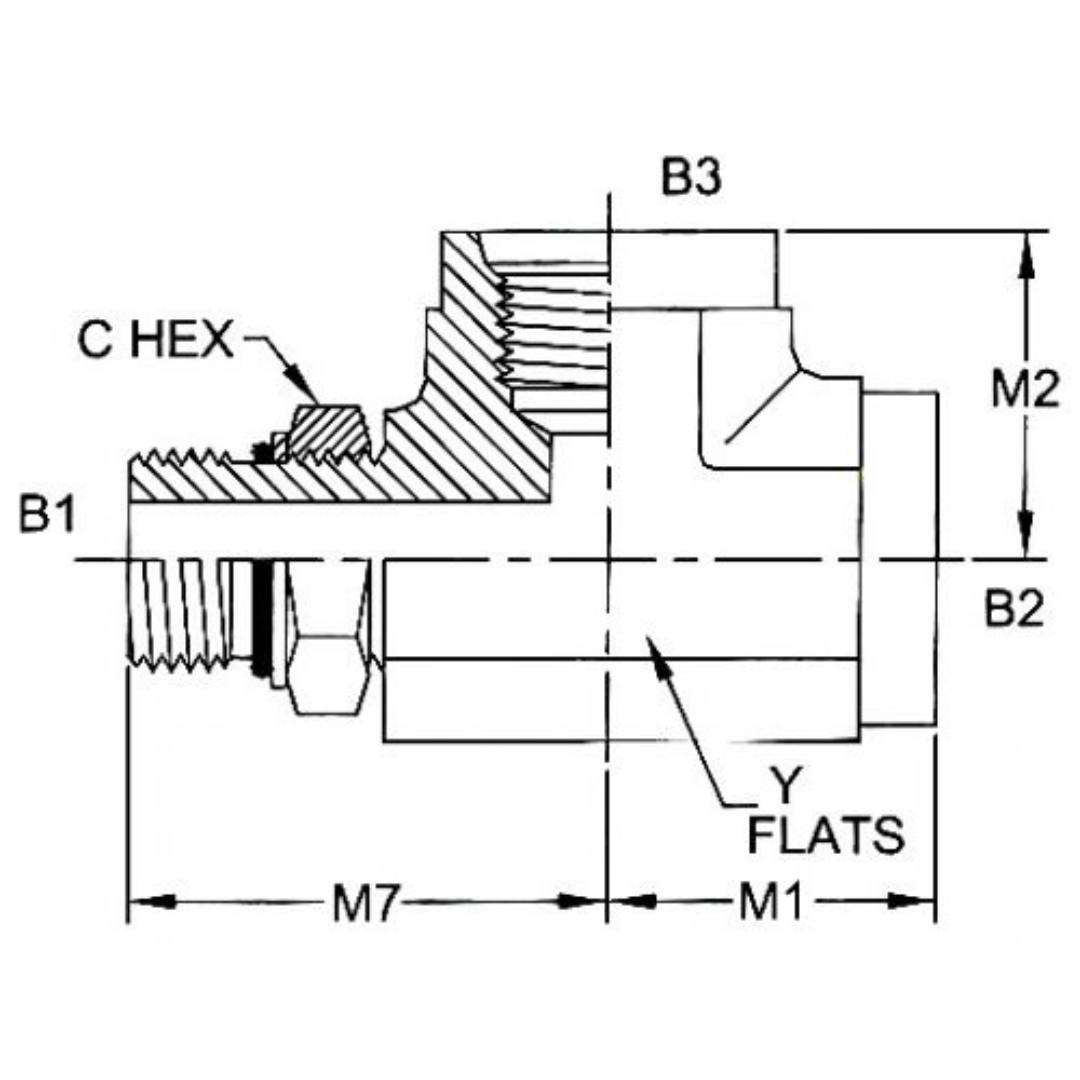

| Special Dims | C Hex 0.875, Y Flats 1.062, B1 Drill 0.391, M1 Length 0.880, M2 Length 0.880, M7 Length 1.590, B1 SAE ORB 3/4-16, B2 SAE ORB 3/4-16, B3 SAE ORB 3/4-16 |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 3/4-16 (-08) |
| Side 1 Type | ORB |
| Side 2 Gender | FEMALE |
| Side 2 Size | 3/4-16 (-08) |
| Side 2 Type | ORB |
| Side 3 Gender | FEMALE |
| Side 3 Size | 3/4-16 (-08) |
| Side 3 Type | ORB |
Description

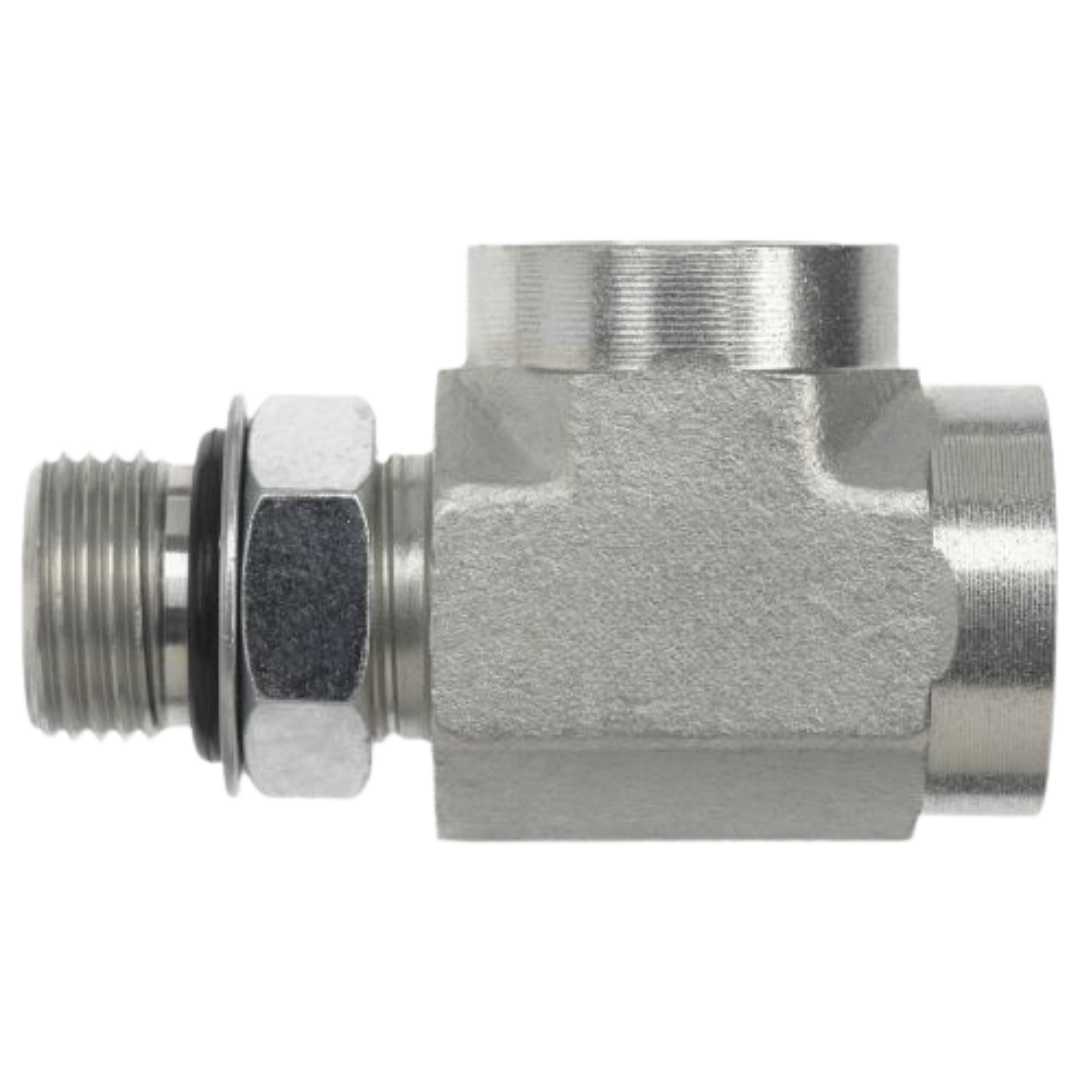

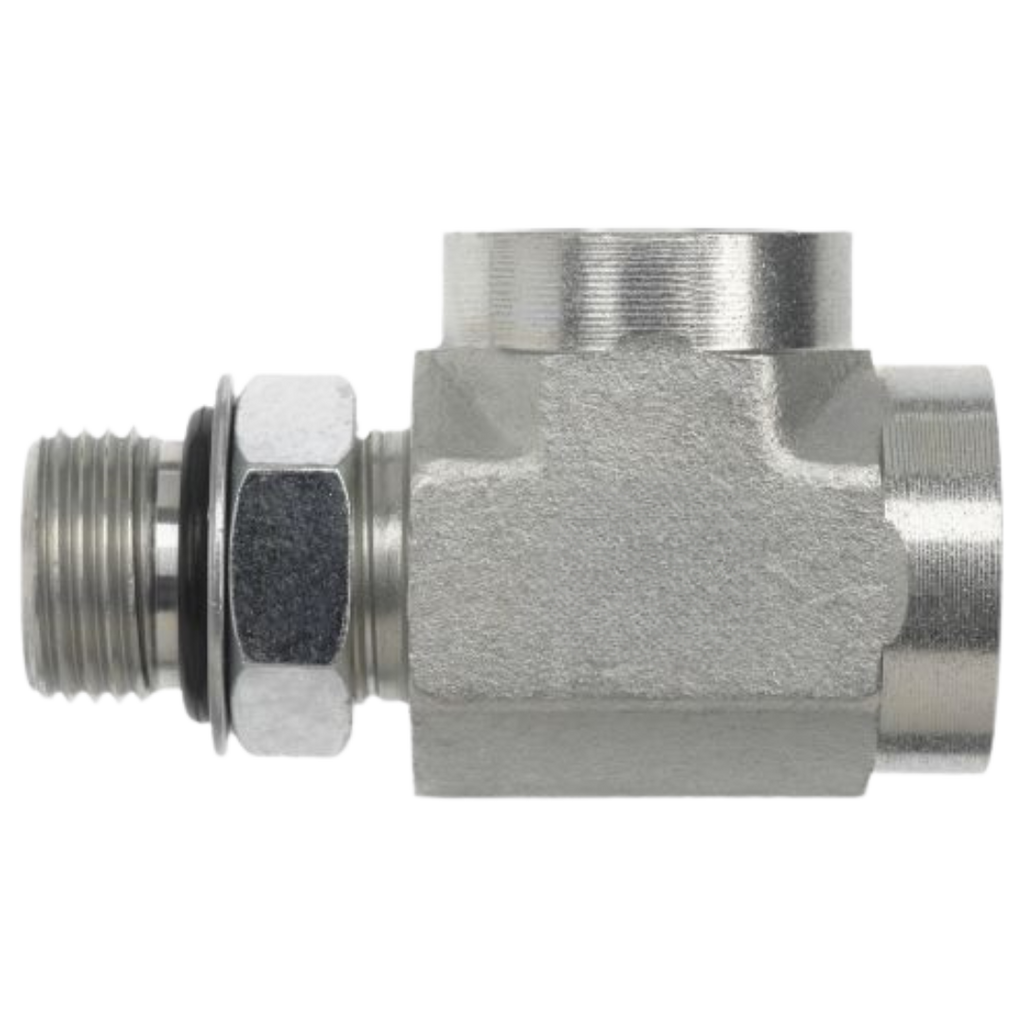

The Series 6835-NWO Tee Male Adjustable ORB x Female ORB x Female ORB adapters are high-quality carbon steel fittings designed to provide efficient and secure fluid connections in hydraulic and fluid power systems. These tee adapters feature a three-way design, with a male adjustable ORB (O-Ring Boss) connection and two female ORB (O-Ring Boss) connections. The male adjustable ORB connection offers flexibility in sealing, allowing for precise adjustment, while the two female ORB connections use O-rings to create reliable, leak-free seals. ORB connections are known for their superior leak prevention, making these adapters ideal for high-pressure applications. Made from durable carbon steel, the Series 6835-NWO adapters offer excellent strength, corrosion resistance, and long-lasting performance, making them perfect for industrial systems that require dependable, flexible, and efficient fluid routing. These adapters ensure secure, reliable connections in demanding environments.
