Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Material | Steel |
| Shape | Straight |
| Pressure Rating | 5000 |
| Country of Manufacture | India |
| Side 1 Gender | MALE |
| Side 1 Size | 1-1/16-12 (-12) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 3/4-14 (-12) |
| Side 2 Type | BSPT |
Description

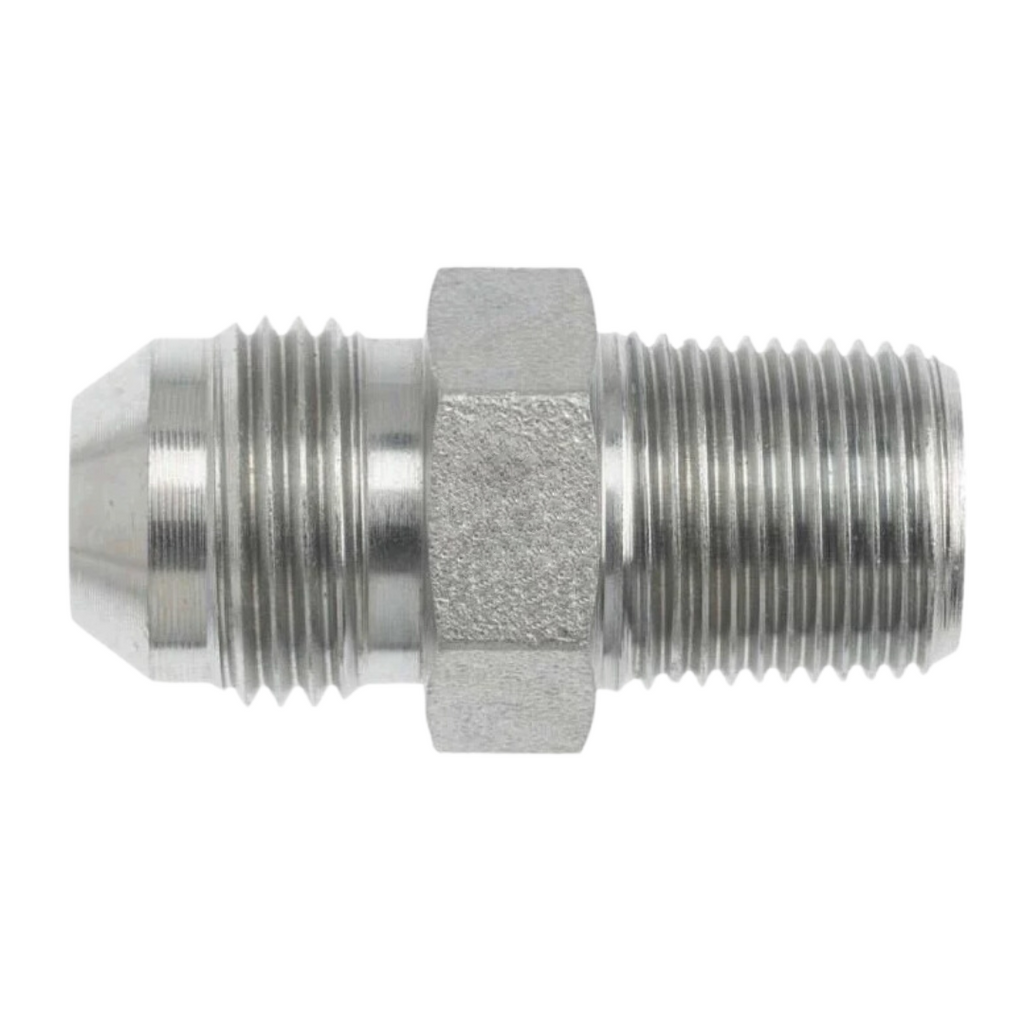

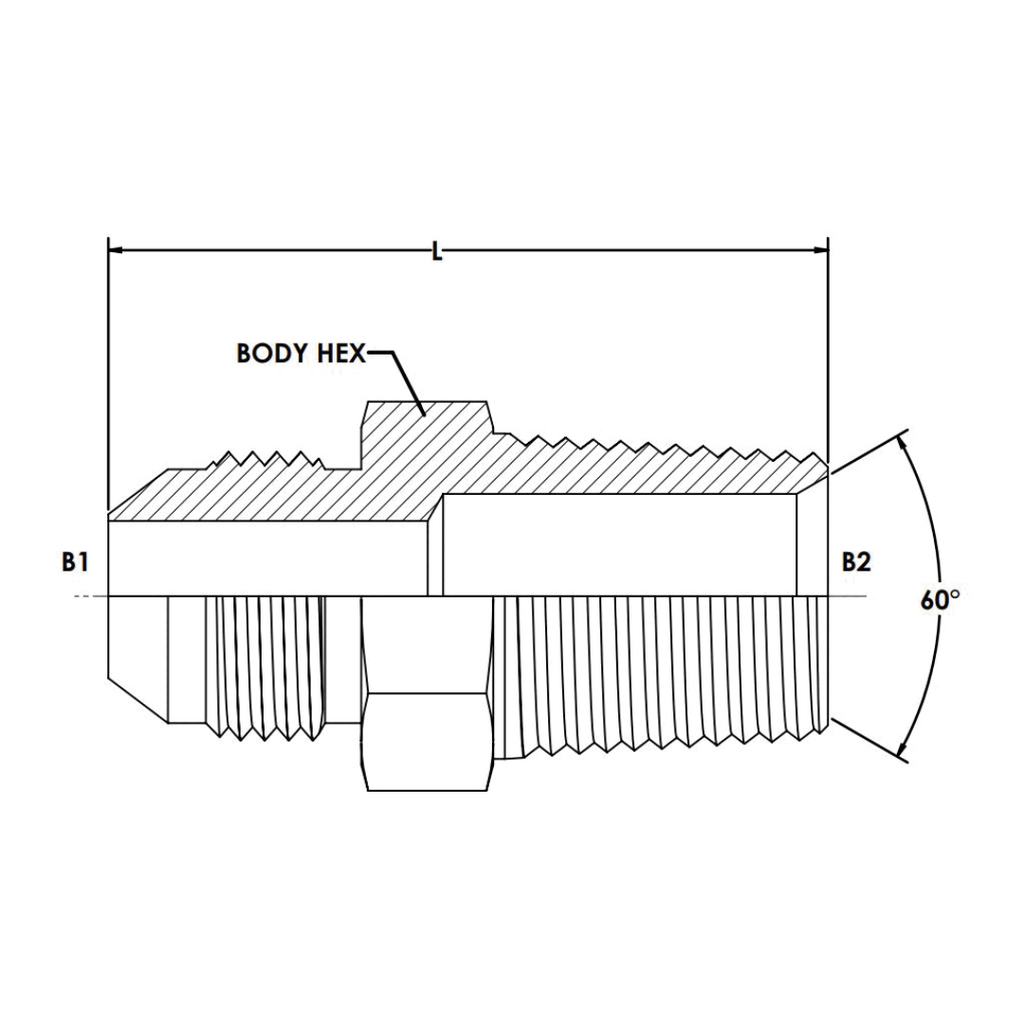

The Series 7000 Straight Male JIC x Male BSPT hydraulic adapters, constructed from durable carbon steel, are critical components designed for secure fluid connections in hydraulic systems. Featuring a male JIC (Joint Industry Council) end, these adapters utilize a 37-degree flare seating surface and parallel threads, as defined by SAE J514, making them reliable choices for fluid power applications. The seal is formed by contact between the male flared seat and the female coned seat. On the other end, the male BSPT (British Standard Pipe Tapered) connection is comparable to NPT connections, although it typically has a different thread pitch, outer diameter, and thread form. Sealing occurs through the distortion of the threads, so the use of thread sealants is recommended to ensure secure connections. The thread sizes are often expressed as fractional dimensions preceded by "G" for parallel threads and "R" for tapered threads, which allows for compatibility with various systems. These adapters are ideal for professionals seeking efficient and dependable hydraulic solutions in a wide range of applications.
