Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 10-11 Weeks |
| Factory Location | Surrey, BC, Canada |
| Solid Model | |
| Service Manual Download | |
| Service Manual | Click here to download |
| Nominal Capacity | 122 ft, Counterclockwise |
| Hydraulic Motor Pressure | 2200psi |
| Drum Torque | 7095 in-lb |
| Drum Speed | 49 RPM |
| Country of Manufacture | Canada |

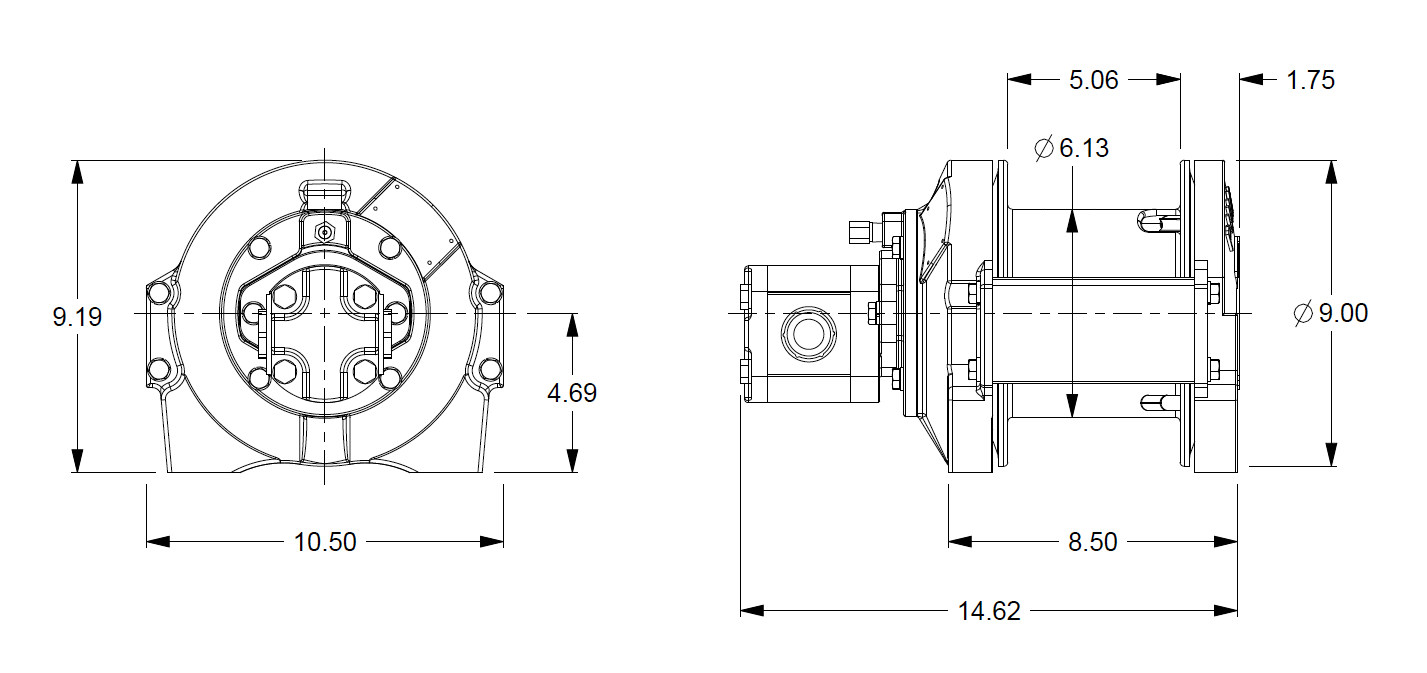

| Height | 9.19 |
| Length | 14.62 |
| Width | 10.5 |
| Weight | 101 |
| Drum Flange Diameter | 9" |
| Brake Option | Automatic Brake |
| Drum Length | 5.25" |
| Drum Rotation | Counterclockwide |
| Max Bare Drum Line Pull | 2,204 |
| Max Full Drum Line Pull | 1,633 |
| Max Bare Drum Line Speed | 83 |
| Max Full Drum Line Pull | 1,633 |
| Max Full Drum Line Speed | 111 |
Description

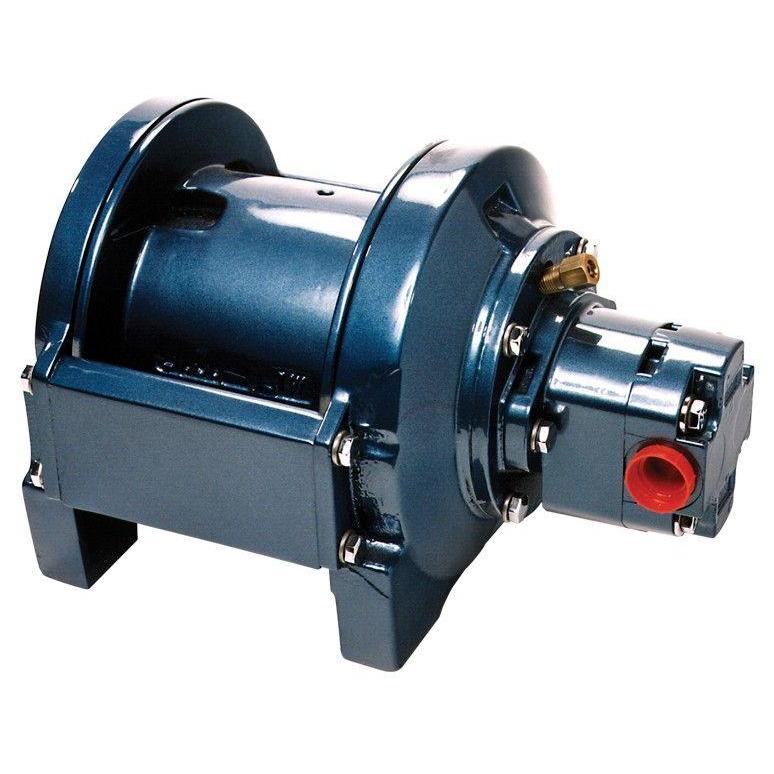

The TWG Pullmaster Equal Speed planetary winches offer maximum torque in both directions of rotation and give operators maximum control over the load. In applications that require precise lifting and lowering and load suspension, Pullmaster Equal Speed winches deliver the most reliable performance in the industry.
* 2,200lbs. capacity hoist storing 267 ft. of 5/16” dia. rope
* With Auto Brake
* Counter-Clockwise Rotation ( Direction of drum rotation viewed from motor when pulling or lifting)
* Intravent
* 7.7 GPM Motor, 2,200 lb capacity
* No Freespool
* 6.13" Barrel x 5.25" Length x 9.0" Flange
