Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Material | Steel |
| Shape | Straight |
| Pressure Rating | 5000 |
| Country of Manufacture | India |
| Side 1 Gender | MALE |
| Side 1 Size | 1/4-18 (-04) |
| Side 1 Type | NPT |
| Side 2 Gender | MALE |
| Side 2 Size | 1/4-19 (-04) |
| Side 2 Type | BSPP |
Description

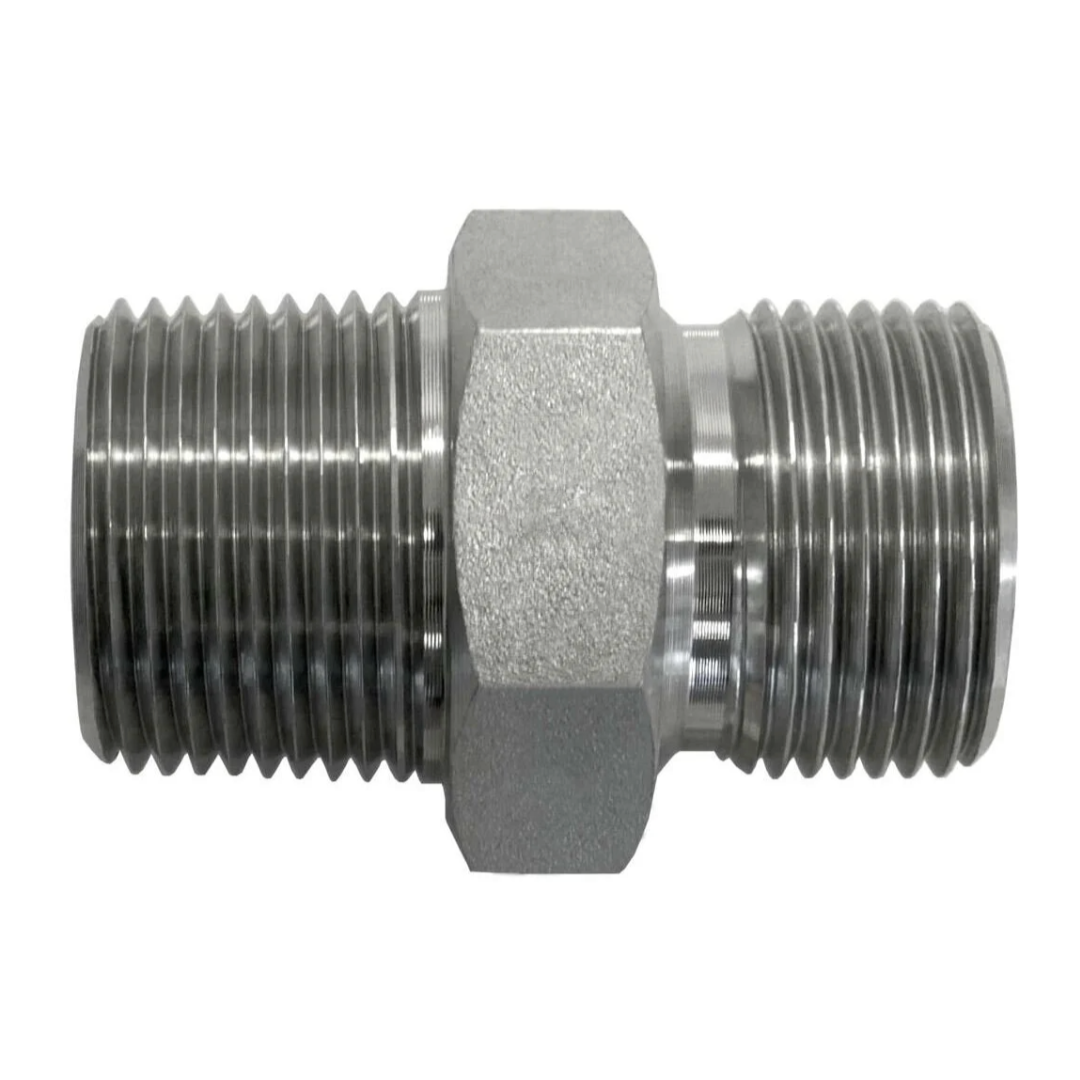

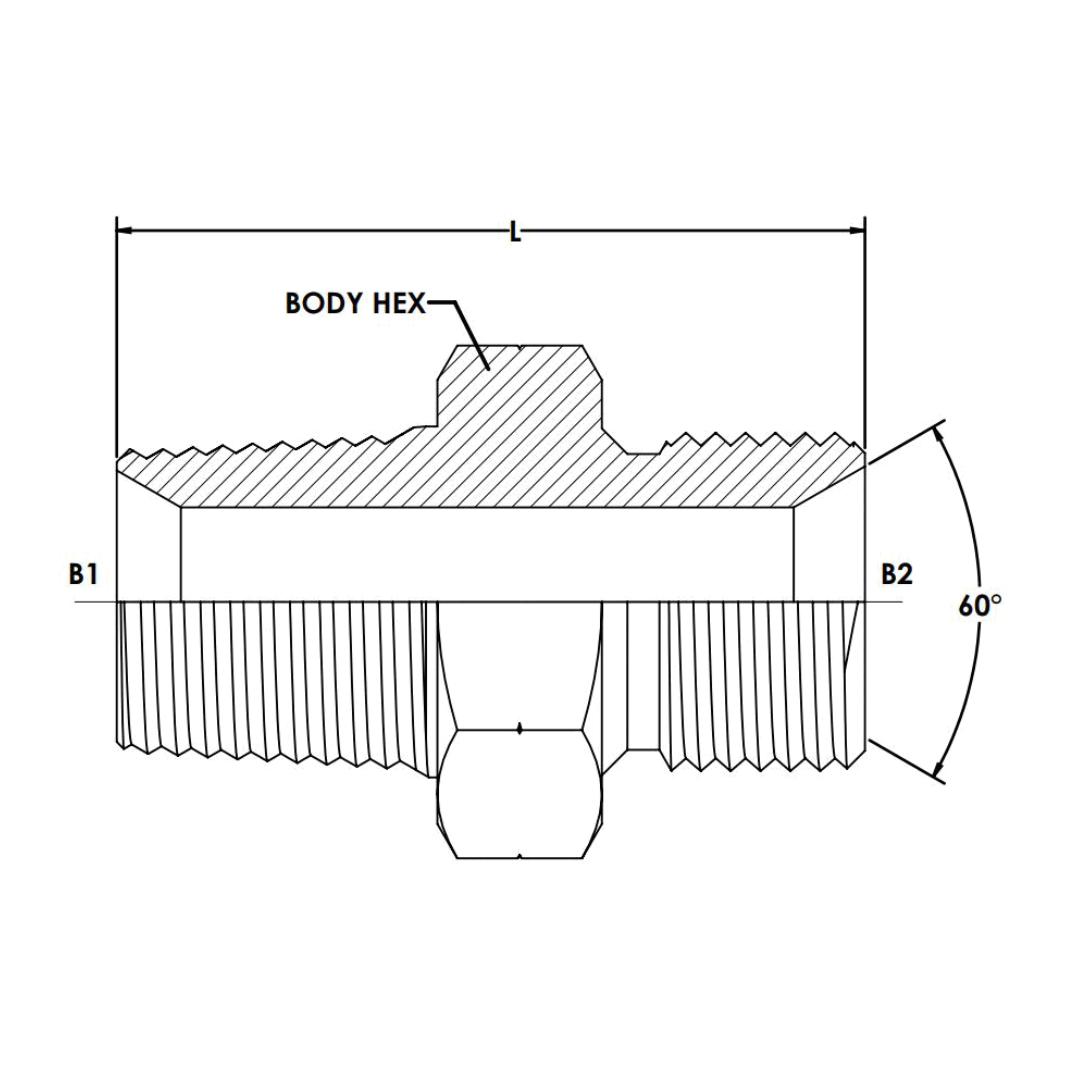

The Series 7032 Straight Male NPT x Male BSPP Nipple hydraulic adapters, made from durable carbon steel, provide secure, leak-proof connections in hydraulic systems. The male NPT (National Pipe Taper) side uses tapered threads to form a strong metal-to-metal seal, ideal for fluid and gas transfer. NPT connections rely on thread deformation and are best suited for single assembly applications, as they are not recommended for frequent disassembly due to potential wear on the threads. The male BSPP (British Standard Parallel Pipe) side features parallel threads with a captive seal, created by metal-to-metal contact or a combination of metal and O-ring. BSPP connections offer similar sealing properties to the American NPSM but with different thread pitch. These adapters are perfect for professionals who need reliable, high-performance hydraulic solutions.
