Product Details
| Special Message | Automatic brake, internal circulation flow |
|---|---|
| Data Sheet | |
| Usually Ships Within | 15-16 Weeks |
| Factory Location | Surrey, BC, Canada |
| Solid Model | |
| Service Manual Download | |
| Service Manual | Click here to download |
| Rotation | Clockwise |
| Nominal Capacity | 140ft |
| Hydraulic Motor Pressure | 2500psi |
| Drum Torque | 135,937 in-lb |
| Drum Speed | 49 RPM |
| Country of Manufacture | Canada |

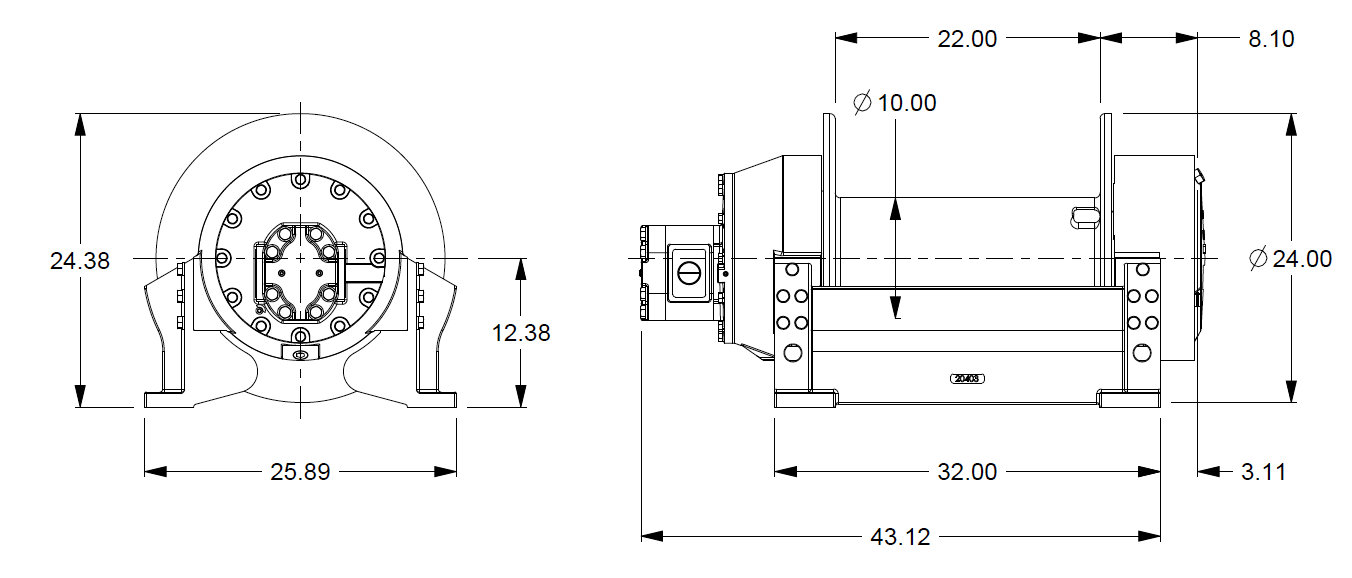

| Height | 24.38 |
| Length | 46.23 |
| Width | 25.89 |
| Weight | 1355 |
| Drum Flange Diameter | 24" |
| Brake Option | Automatic Brake |
| Drum Length | 22" |
| Drum Rotation | Counterclockwise |
| Max Bare Drum Line Pull | 25,000 |
| Max Full Drum Line Pull | 16,860 |
| Max Bare Drum Line Speed | 140 |
| Max Full Drum Line Pull | 16,860 |
| Max Full Drum Line Speed | 207 |
Description
The TWG Pullmaster Rapid Reverse planetary winches provide reverse speeds that are 4.5 times faster than forward speeds. In applications that include lighter loads or swing functions, Pullmaster's Rapid Reverse winches create less resistance and increase cycle times and productivity. Ideal for a variety of applications including fishing, dredging and marine applications.

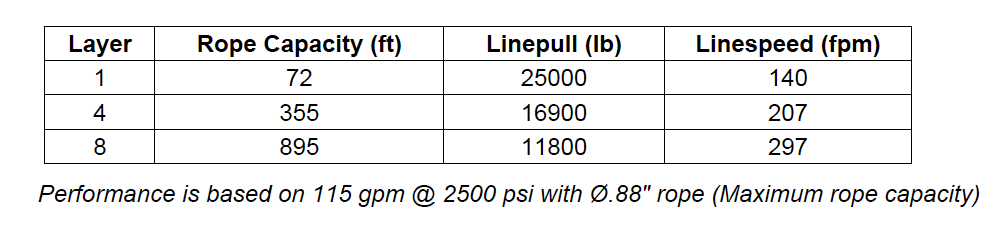

* 25,000 lbs. capacity rapid reverse winch storing 895 ft. of 7/8” dia. rope
* With Auto Brake
* Clockwise Rotation ( Direction of drum rotation viewed from motor when pulling or lifting)
* Int Circulation Flow
* 115 GPM Motor, 25,000 lb capacity
* 10.0" Barrel x 22.0" Length x 24.0" Flange
