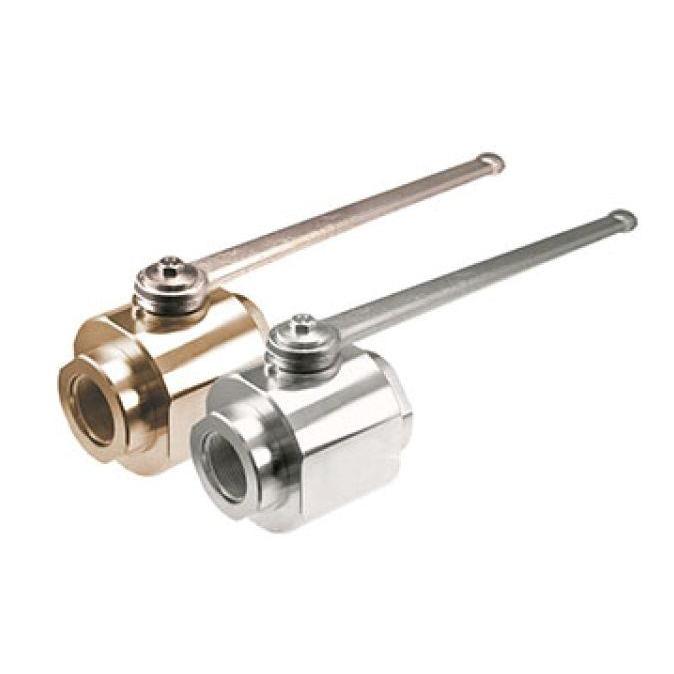

AB2S#24-11DB : AFP 2-Way Block Body Threaded Ball Valve, 5075psi rated, Steel, #24 SAE (1.5") Full Bore
Roll over image to zoom in Click on image to zoom
AB2S#24-11DB : AFP 2-Way Block Body Threaded Ball Valve, 5075psi rated, Steel, #24 SAE (1.5") Full Bore

AB2S#24-11DB : AFP 2-Way Block Body Threaded Ball Valve, 5075psi rated, Steel, #24 SAE (1.5") Full Bore

Anchor Fluid PowerSKU: AB2S#24-11DB
5 Days
Price:
$306.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 5 Days
Factory Location Cincinnati, Ohio and Houston, Texas
Port Size #24 SAE (1.5")
Style Two-Way Block Body Threaded Ball Valve
O Ring Seals Buna
Pressure Rating 5075
Body Material Carbon Steel
Series AE2
Ball Seal POM
Ball Pattern On/Off
Ball Valve Pressure Range High Pressure (5000 to 9999psi)
Flow Style Two-Way
Country of Manufacture China
Height 4.02
Length 5.16
Width 4.21
Weight 16.3
Ball Valve Type Standard

Description

The Anchor Fluid Power AB2 Series ball valve is a two-way block body carbon steel design with zinc chromate plating.
