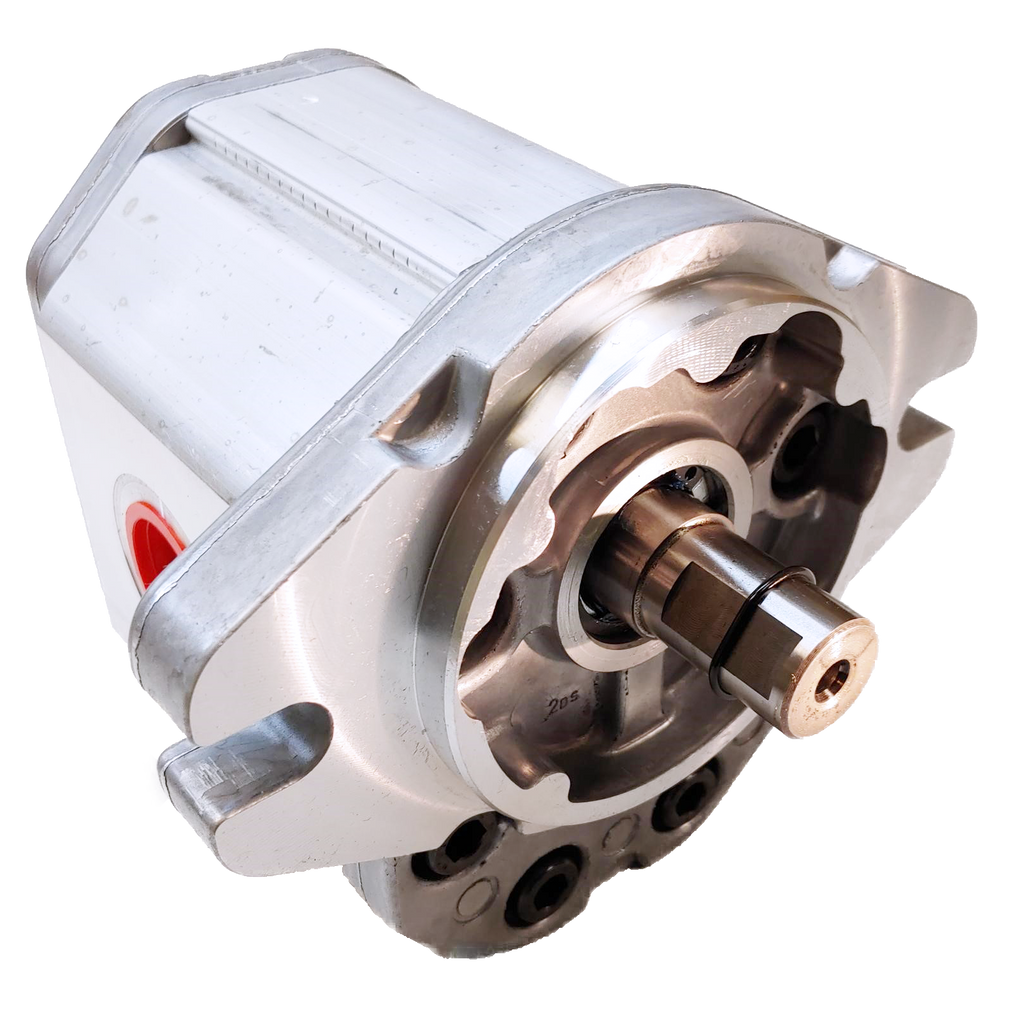

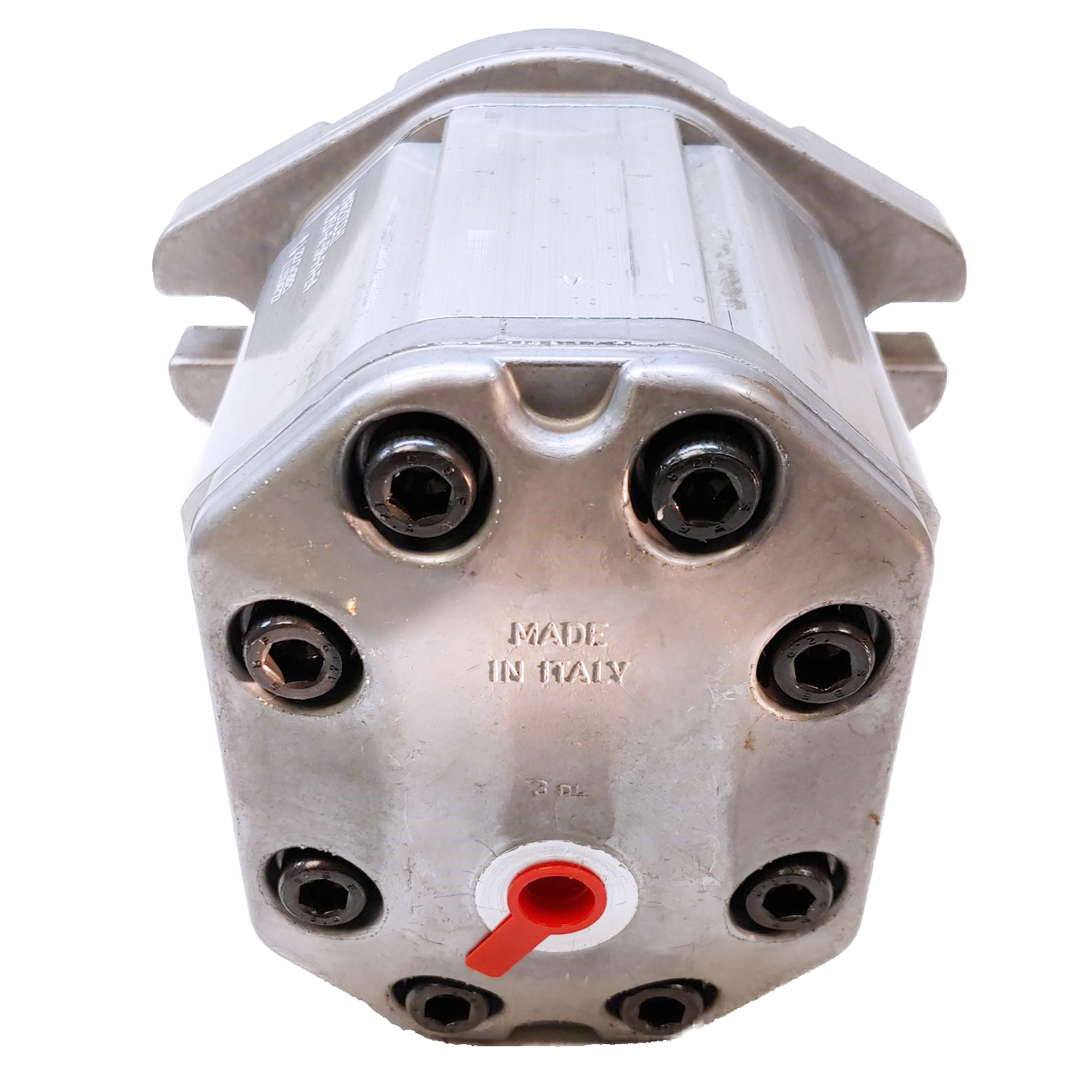

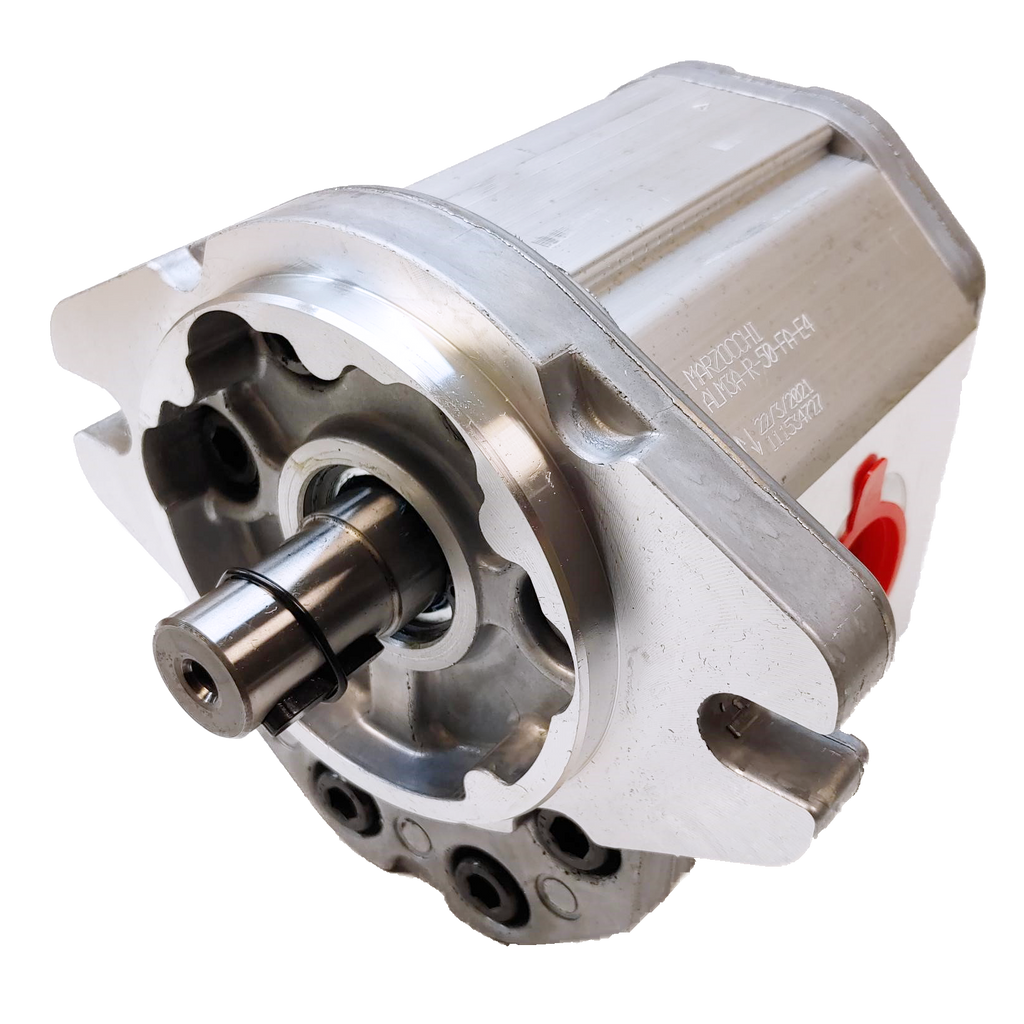

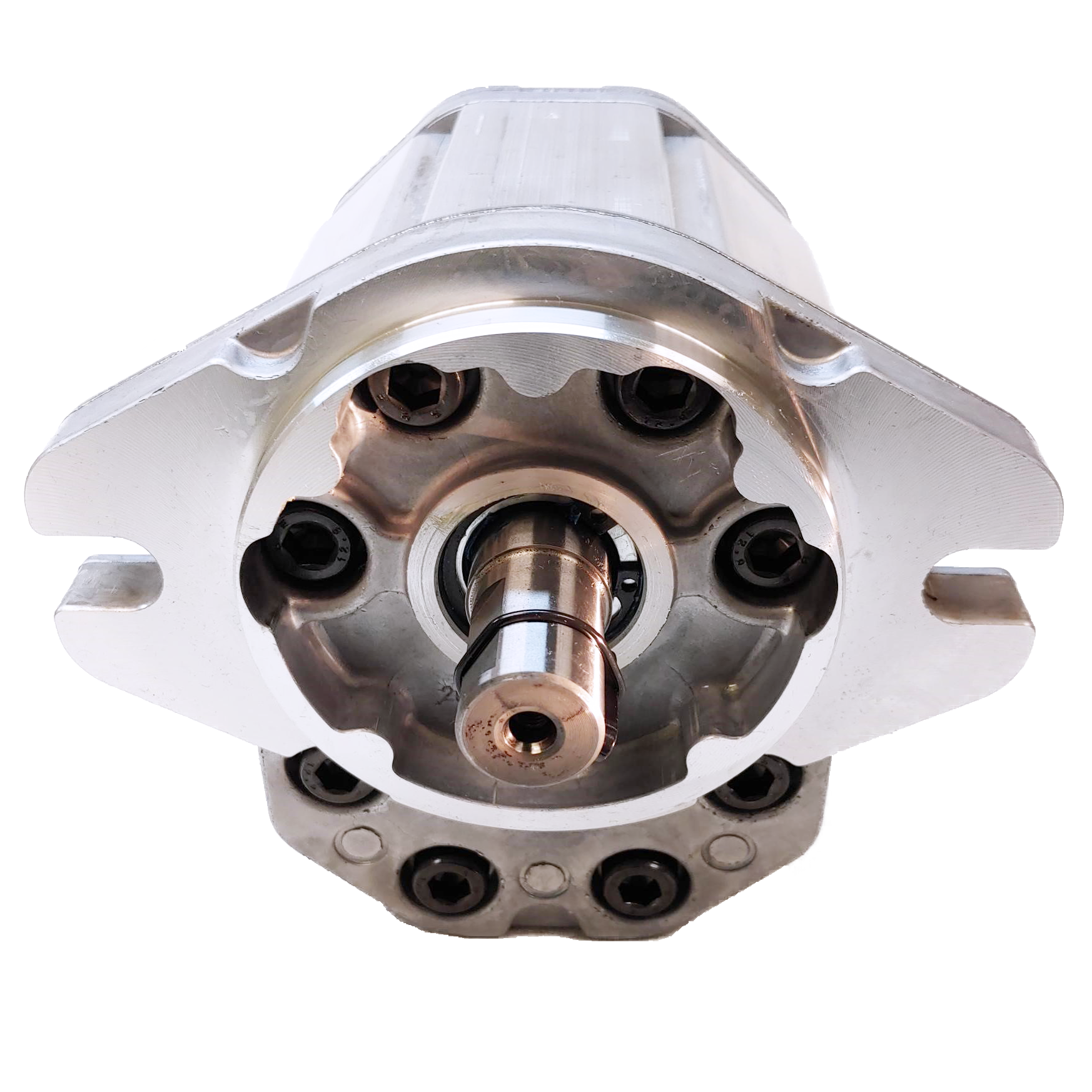

ALM3A-R-110-S1-FA-E4 : Marzocchi Gear Motor, Bidirectional, 71cc, 2465psi rated, 2500RPM, 1.5" (#24) SAE ports, 9T 16/32DP Splined Shaft
ALM3A-R-110-S1-FA-E4 : Marzocchi Gear Motor, Bidirectional, 71cc, 2465psi rated, 2500RPM, 1.5" (#24) SAE ports, 9T 16/32DP Splined Shaft
ALM3A-R-110-S1-FA-E4 : Marzocchi Gear Motor, Bidirectional, 71cc, 2465psi rated, 2500RPM, 1.5" (#24) SAE ports, 9T 16/32DP Splined Shaft
ALM3A-R-110-S1-FA-E4 : Marzocchi Gear Motor, Bidirectional, 71cc, 2465psi rated, 2500RPM, 1.5" (#24) SAE ports, 9T 16/32DP Splined Shaft
Roll over image to zoom in Click on image to zoom
ALM3A-R-110-S1-FA-E4 : Marzocchi Gear Motor, Bidirectional, 71cc, 2465psi rated, 2500RPM, 1.5" (#24) SAE ports, 9T 16/32DP Splined ShaftALM3A-R-110-S1-FA-E4 : Marzocchi Gear Motor, Bidirectional, 71cc, 2465psi rated, 2500RPM, 1.5" (#24) SAE ports, 9T 16/32DP Splined ShaftALM3A-R-110-S1-FA-E4 : Marzocchi Gear Motor, Bidirectional, 71cc, 2465psi rated, 2500RPM, 1.5" (#24) SAE ports, 9T 16/32DP Splined ShaftALM3A-R-110-S1-FA-E4 : Marzocchi Gear Motor, Bidirectional, 71cc, 2465psi rated, 2500RPM, 1.5" (#24) SAE ports, 9T 16/32DP Splined Shaft

ALM3A-R-110-S1-FA-E4 : Marzocchi Gear Motor, Bidirectional, 71cc, 2465psi rated, 2500RPM, 1.5" (#24) SAE ports, 9T 16/32DP Splined Shaft

MarzocchiSKU: ALM3A-R-110-S1-FA-E4
4-6 Weeks
Price:
$692.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Illinois
Material Aluminum Body Aluminum Flange And Cover
Type Reversible Motor
Shaft Size 9T 16/32DP
Shaft Type Splined
Rotation Bidirectional
Displacement 71 (cc)
Max Speed 2500 RPM
Inlet Port 1.5" (#24) SAE
Outlet Port 1.5" (#24) SAE
Mount SAE B 2-Bolt
Motor Pressure Rating 2465
Country of Manufacture Italy
Height 4.49
Length 5.65
Width 5.12

Description

Marzocchi Gear Motors may be unidirectional or bidirectional and manufactured in three different size groups. A very good power to weight ratio and power to size ratio allows for a wide range of displacements within each group (between 2.8 and 87cc per revolution. The drain is always external and it is through a thread port on the cover.
