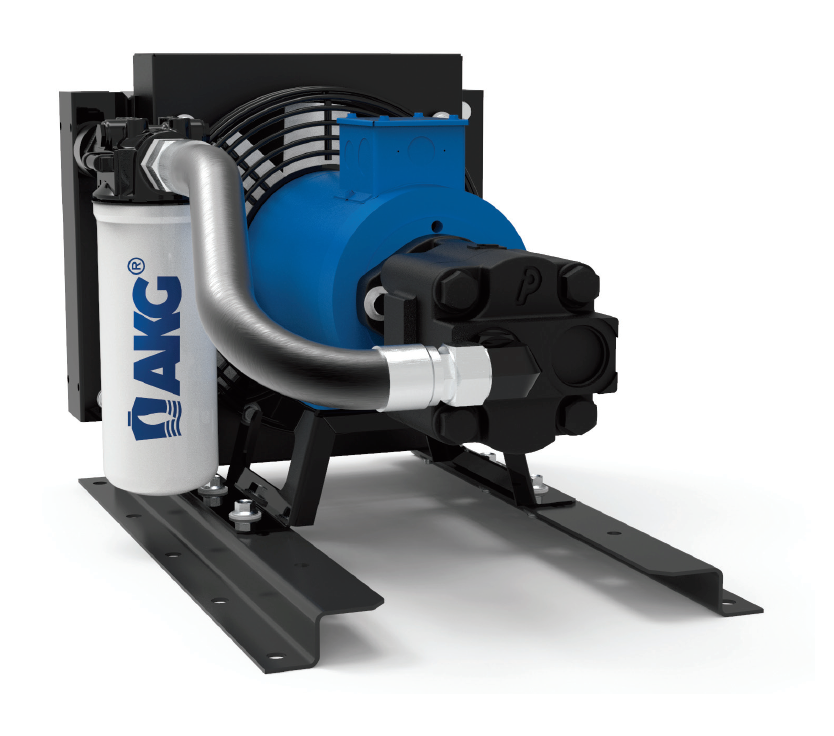

AP11-X-F : AKG AP11 Offline Cooler, Includes Filter & Hose, No Pump, 2HP, 1725RPM, 208-230/460VAC, 60Hz, #16 SAE (1") Ports, 1.46in3 (24cc)
Roll over image to zoom in Click on image to zoom
AP11-X-F : AKG AP11 Offline Cooler, Includes Filter & Hose, No Pump, 2HP, 1725RPM, 208-230/460VAC, 60Hz, #16 SAE (1") Ports, 1.46in3 (24cc)

AP11-X-F : AKG AP11 Offline Cooler, Includes Filter & Hose, No Pump, 2HP, 1725RPM, 208-230/460VAC, 60Hz, #16 SAE (1") Ports, 1.46in3 (24cc)

AKGSKU: AP11-X-F
4-6 Weeks
Price:
$2,150.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Mebane, North Carolina
Port Size #16 SAE (1")
Horsepower 2
Rpm 1725
Motor Voltage 208-230/460
Fl Amps 8.8-8.6/4.3
Pressure Rating 50
Displacement 1.46
Service Parts Replacement Pump 8407.650.0024, Filter Head 8061.004.0002, Spin-On Filter Element 8061.004.0001, Hose Connector Kit AP-HOSE-KIT-1
Country of Manufacture United States
Height 15.9
Length 15.8
Width 27
Weight 145

Description

The AKG AP Offline Series, based on AKG Cool-Line Series, is a standard line of products from the market leader in high performance aluminum. AKG is best known for its world-wide presence, German engineering and extremely reliable product quality on the one hand and competitive prices on the other hand. All AKG solutions have been developed with state-of-the-art technology, produced in compliance with the highest quality standards and are comprehensively tested in the companys own research and test facility.The AKG Offline series consist of different offline cooler models to be used for cooling,filtration or lubrication circuits at lowpressures in industrial or mobile applications.
