ARS3#8-11DB : ARS3#8-11DB : AFP 2-Way Direct Mount Flange Ball Valve, 3000psi rated, Steel, 0.5 (1/2)" Code 61
Roll over image to zoom in Click on image to zoom
ARS3#8-11DB : ARS3#8-11DB : AFP 2-Way Direct Mount Flange Ball Valve, 3000psi rated, Steel, 0.5 (1/2)" Code 61

ARS3#8-11DB : ARS3#8-11DB : AFP 2-Way Direct Mount Flange Ball Valve, 3000psi rated, Steel, 0.5 (1/2)" Code 61

Anchor Fluid PowerSKU: ARS3#8-11DB
5 Days
Price:
$579.41

Product Details

Data Sheet Download Datasheet
Usually Ships Within 5 Days
Factory Location Cincinnati, Ohio and Houston, Texas
Port Size 1/2" SAE Code 61
Style Two-Way Direct Mount Flange Ball Valve
O Ring Seals Buna
Pressure Rating 3000
Body Material Carbon Steel
Series ARS
Ball Seal POM
Ball Pattern On/Off
Ball Valve Pressure Range Medium Pressure (1000 to 4999psi)
Flow Style Two-Way
Country of Manufacture China
Height 3.09
Length 2.95
Width 3.07
Weight 5.3
Ball Valve Type Standard

Description

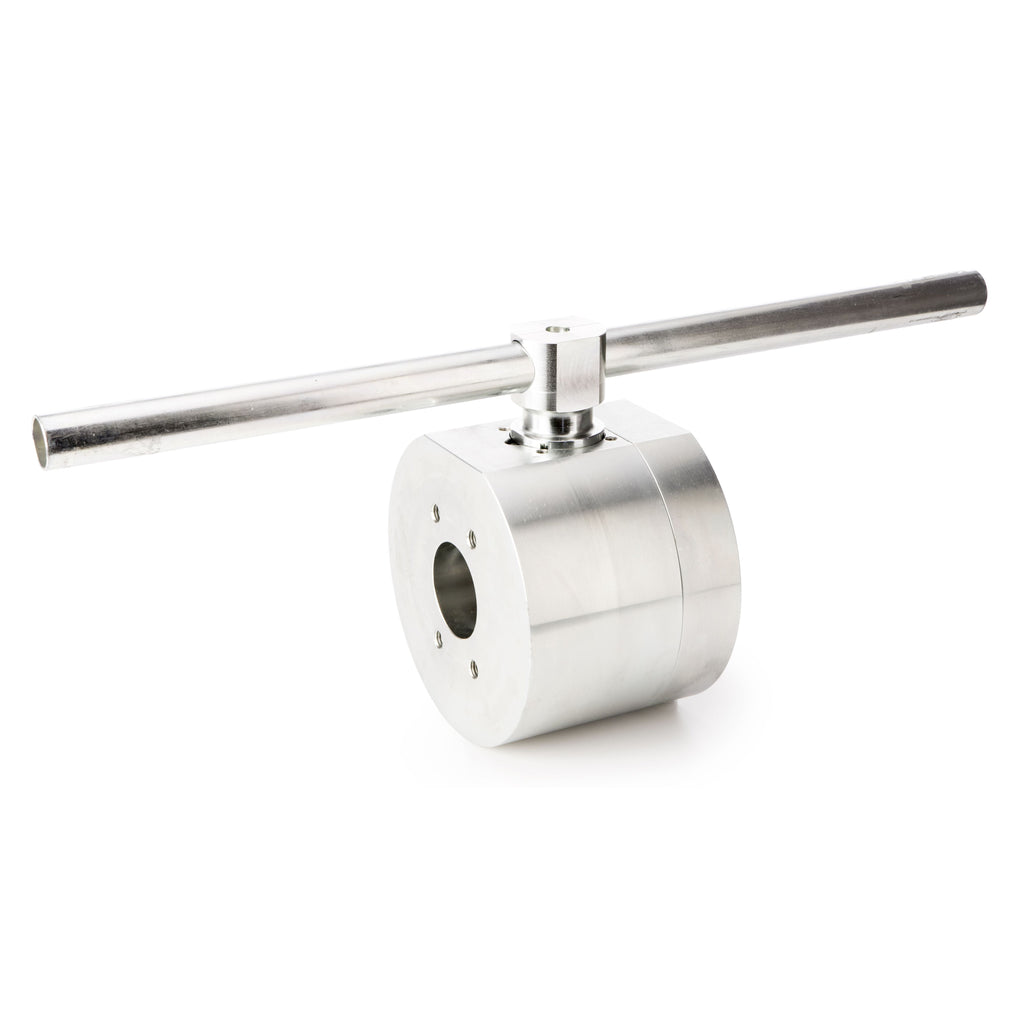

The Anchor Fluid Power ARS Series ball valve is a two-way, direct-mount, flange-style, carbon steel design with zinc chromate plating and RoHS compliant.
