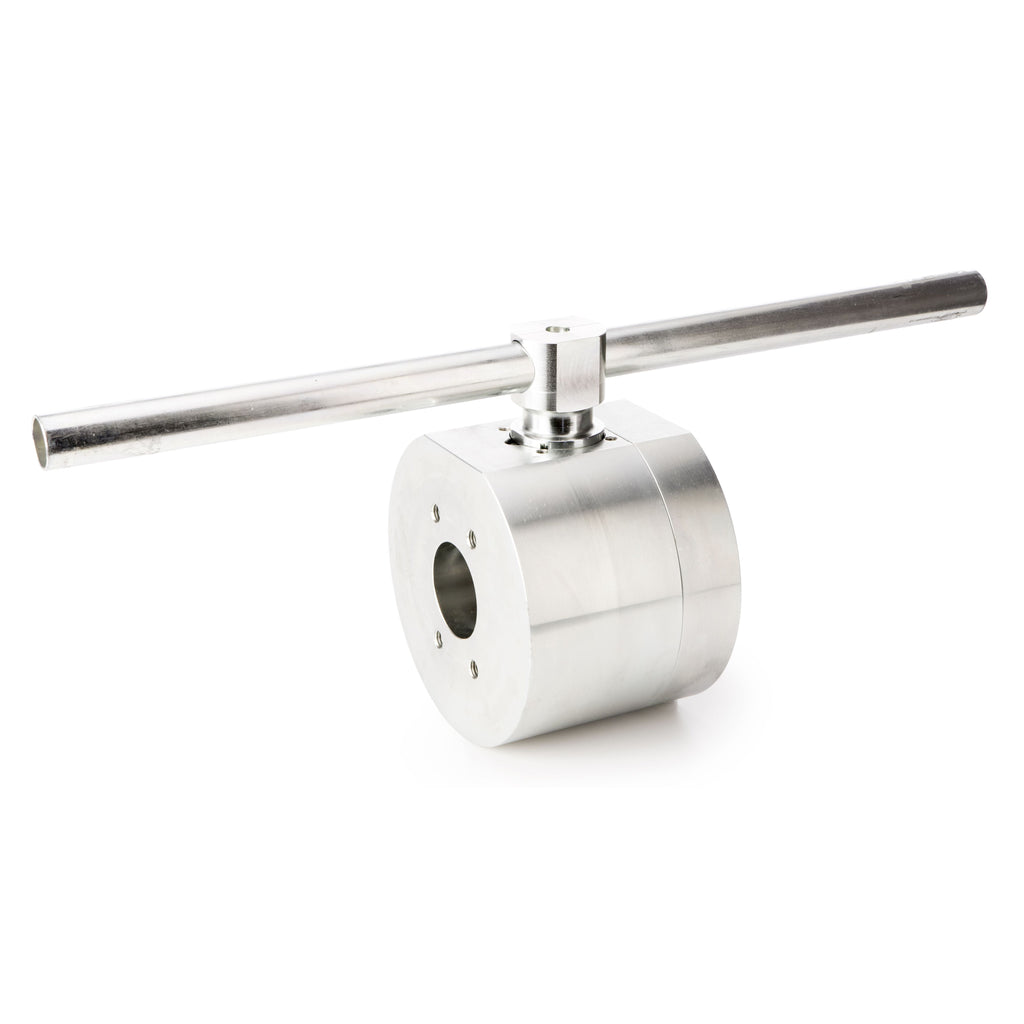

ARS6#8-11DB : ARS6#8-11DB : AFP 2-Way Direct Mount Flange Ball Valve, 6000psi rated, Steel, 0.5 (1/2") Code 62
Roll over image to zoom in Click on image to zoom
ARS6#8-11DB : ARS6#8-11DB : AFP 2-Way Direct Mount Flange Ball Valve, 6000psi rated, Steel, 0.5 (1/2") Code 62

ARS6#8-11DB : ARS6#8-11DB : AFP 2-Way Direct Mount Flange Ball Valve, 6000psi rated, Steel, 0.5 (1/2") Code 62

Anchor Fluid PowerSKU: ARS6#8-11DB
5 Days
Price:
$579.41

Product Details

Data Sheet Download Datasheet
Usually Ships Within 5 Days
Factory Location Cincinnati, Ohio and Houston, Texas
Port Size 1/2" SAE Code 62
Style Two-Way Direct Mount Flange Ball Valve
O Ring Seals Buna
Pressure Rating 6000
Body Material Carbon Steel
Series ARS
Ball Seal POM
Ball Pattern On/Off
Ball Valve Pressure Range High Pressure (5000 to 9999psi)
Flow Style Two-Way
Country of Manufacture China
Height 3.09
Length 2.95
Width 3.07
Weight 11.7
Ball Valve Type Standard

Description

The Anchor Fluid Power ARS Series ball valve is a two-way, direct-mount, flange-style, carbon steel design with zinc chromate plating and RoHS compliant.
