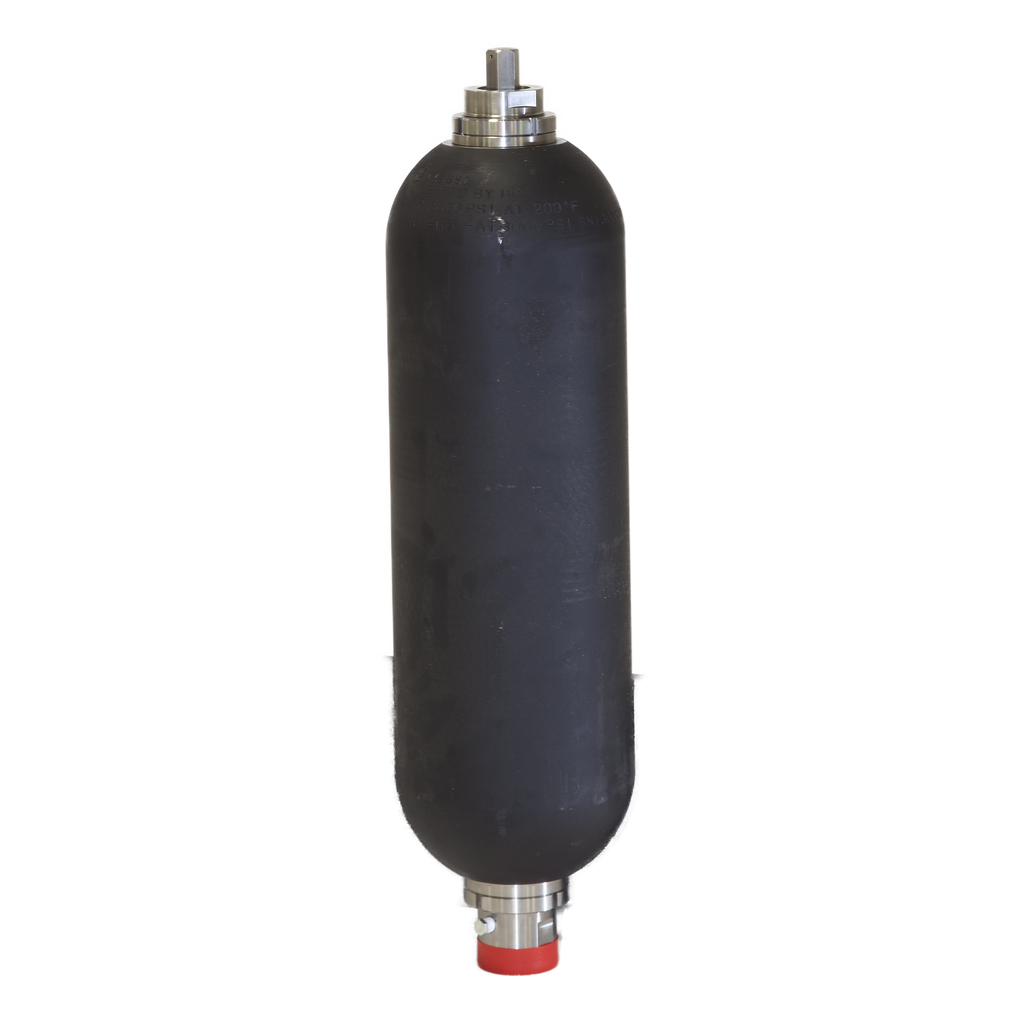

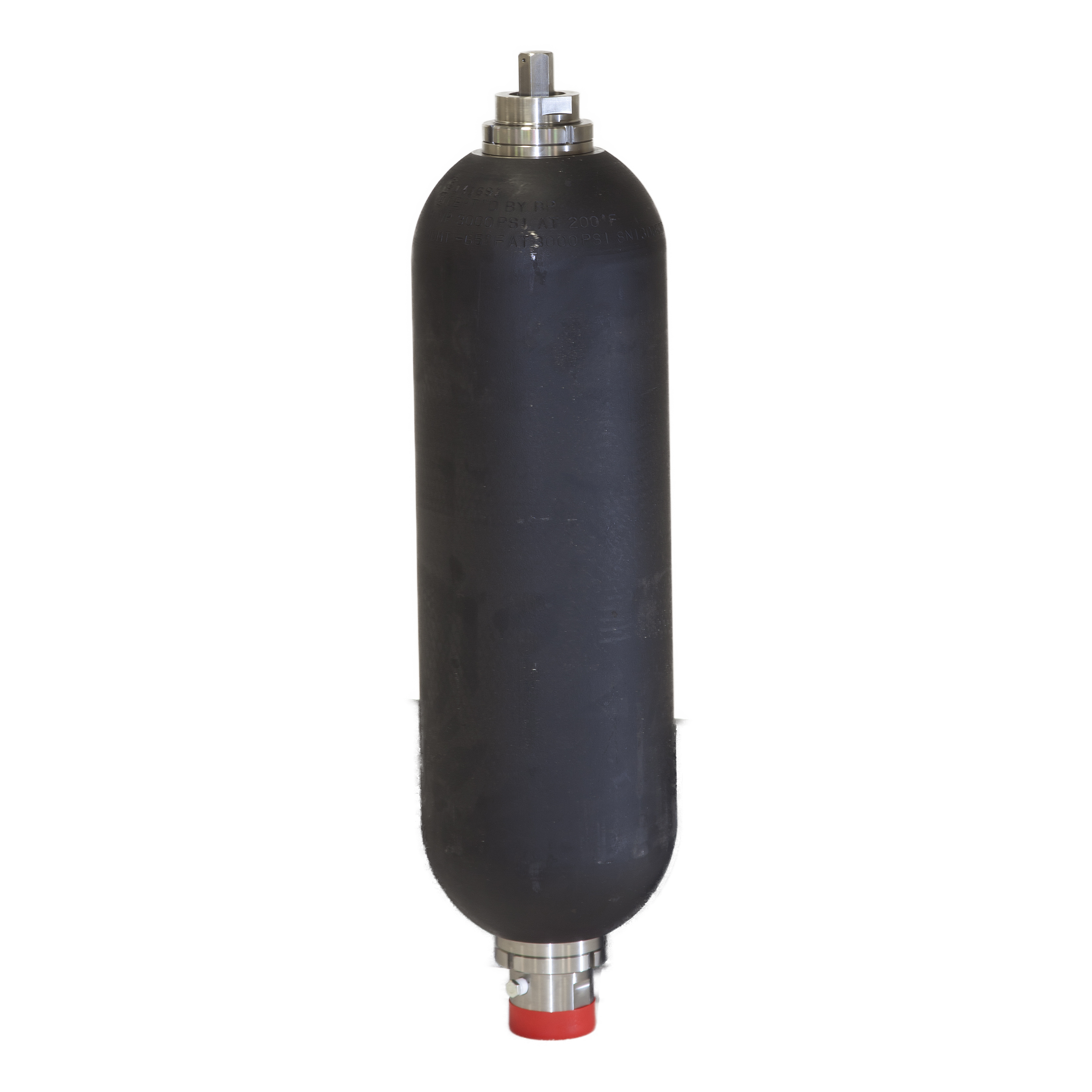

BA10-03-FB-N-O-1-A : SFP Bladder Accumulator, Bottom Repairable, 3000psi, 2.5 Gallon (10 Liter), 1.5" Code 62
Roll over image to zoom in Click on image to zoom
BA10-03-FB-N-O-1-A : SFP Bladder Accumulator, Bottom Repairable, 3000psi, 2.5 Gallon (10 Liter), 1.5" Code 62

BA10-03-FB-N-O-1-A : SFP Bladder Accumulator, Bottom Repairable, 3000psi, 2.5 Gallon (10 Liter), 1.5" Code 62

Save $298.01
SFPSKU: BA10-03-FB-N-O-1-A
3-5 Days
Price:
$993.99 $1,292.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 3-5 Days
Factory Location Katy, Texas
Port Size 1.5" Code 62
Pressure Rating 3000
Accumulator Type Bladder Accumulator, Bottom Repairable
Nominal Capacity 2.5 Gallon (10 Liter)
Bladder Material Nitrile (Buna)
Country of Manufacture United States
Height 9.06
Length 21
Width 9.06
Weight 80

Description

The hydro-pneumatic accumulator stores energy in the form of pressurized hydraulic fluid and releases to the hydraulic system when demanded either immediately or intermittently. A separator between the compressible dry inert gas such as nitrogen and incompressible hydraulic fluid allows the stored fluid to be discharged per the system requirements. The most common type of accumulators are Bladder type which uses bladder as a separator to store gas. Servi Fluid Power based in Houston, TX offers a wide range of bladder accumulator options available for immediate delivery.
