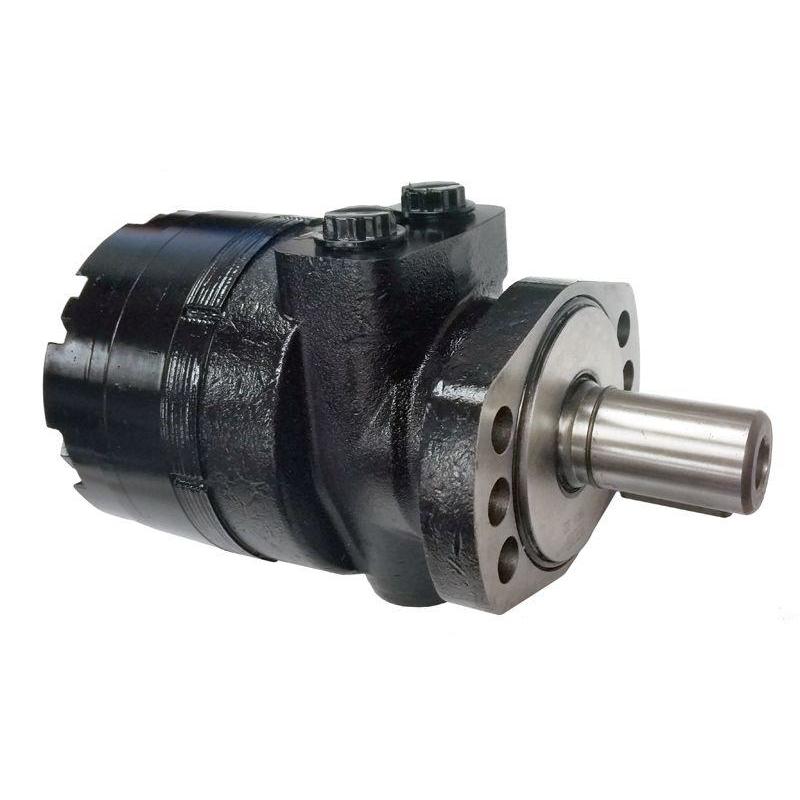

BMER-2-750-FS-G2-S-R : Dynamic LSHT Motor, 745cc, 100RPM, 9293in-lb, 1523psi Differential, 19.81GPM, Magneto Mount, 1.25" Bore x 5/16" Key Shaft, Side Ported, #10 SAE (5/8")
Roll over image to zoom in Click on image to zoom
BMER-2-750-FS-G2-S-R : Dynamic LSHT Motor, 745cc, 100RPM, 9293in-lb, 1523psi Differential, 19.81GPM, Magneto Mount, 1.25" Bore x 5/16" Key Shaft, Side Ported, #10 SAE (5/8")

BMER-2-750-FS-G2-S-R : Dynamic LSHT Motor, 745cc, 100RPM, 9293in-lb, 1523psi Differential, 19.81GPM, Magneto Mount, 1.25" Bore x 5/16" Key Shaft, Side Ported, #10 SAE (5/8")

Save $45.01
Dynamic Fluid ComponentsSKU: BMER-2-750-FS-G2-S-R
6-8 Weeks
Price:
$625.99 $671.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 6-8 Weeks
Factory Location West Union, South Carolina
Port Size #10 SAE (5/8")
Shaft Size 1.25" Bore x 5/16" Key
Shaft Type Keyed
Port Location Side Ported
Flow Rating 19.81
Pressure Rating 1523
Displacement 745
Max Speed 100
Service Parts BMER-2 Seal Kit (Small Shafts), BMER-2 Seal Kit (Large Shafts)
Country of Manufacture China
Height 5.38
Length 6.93
Width 5.76
Weight 37.75

Description

The BMER-2 (formerly BMER-1) series motors adapt the Geroler gear set design with high speed distribution fl ow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation. These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
