Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-2 Weeks |
| Factory Location | Wheatfield, NY |
| Port Size | 1.25" NPT |
| O Ring Seals | Buna |
| Pressure Rating | 600 |
| Body Material | Aluminum |
| Ball Seal | PTFE Teflon |
| Ball Pattern | On/Off |
| Ball Valve Pressure Range | Low Pressure (Under 1000psi) |
| Flow Style | Two-Way |
| Country of Manufacture | United States |
| Height | 2.66 |
| Length | 3.9 |
| Width | 5.24 |
| Weight | 1.88 |
| Ball Valve Type | Standard |
Description

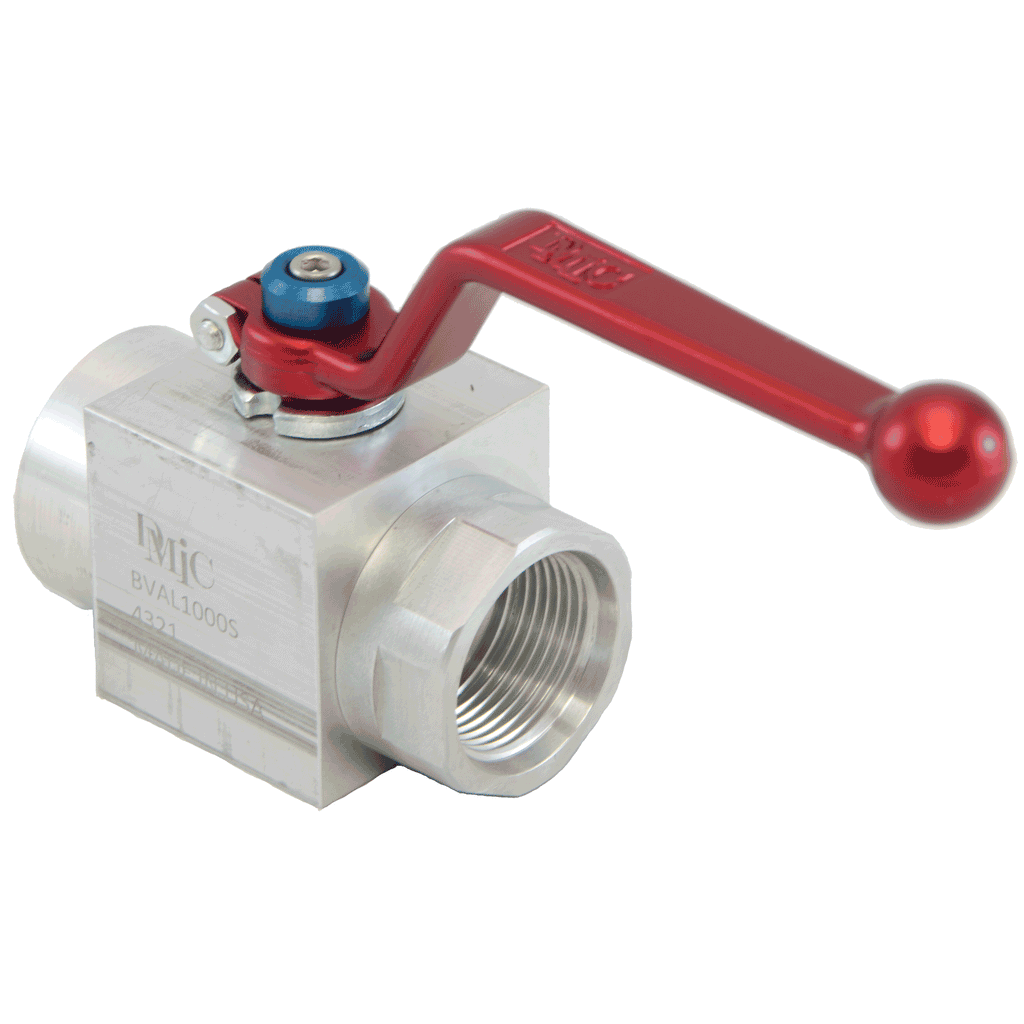

Most large bore valves sold in the hydraulic market today are simply plumbing valves, suitable primarily for low pressure, cold water use. DMIC's BVAL is the first ball valve of its kind, specifically designed for leak-free Hydraulic Suction, Vacuum to 29 & Return line durability to 6" full bore.
