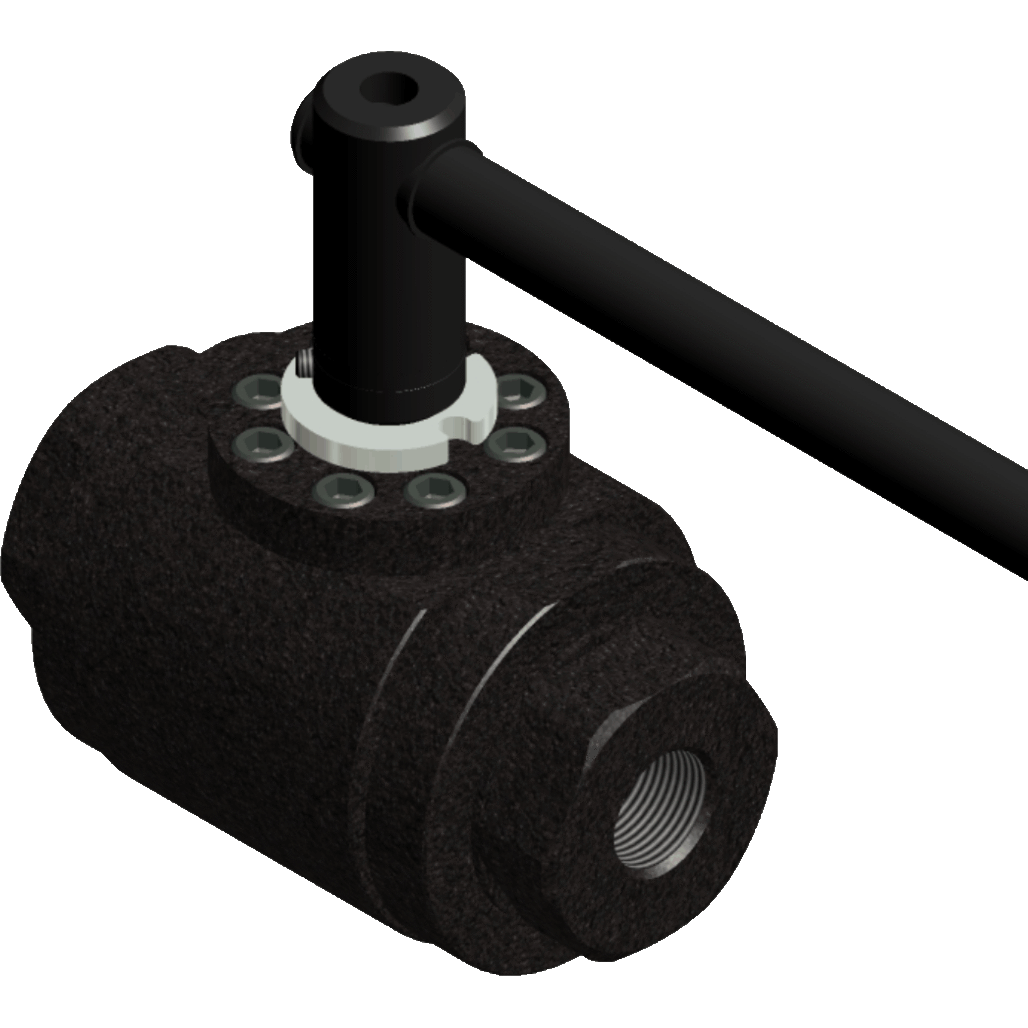

BVHHH-1000N-2241 : DMIC Ultimate Pressure Ball Valve, 1 NPT, 316 Stainless Steel, 15000psi, Two-Way
Roll over image to zoom in Click on image to zoom
BVHHH-1000N-2241 : DMIC Ultimate Pressure Ball Valve, 1 NPT, 316 Stainless Steel, 15000psi, Two-Way

BVHHH-1000N-2241 : DMIC Ultimate Pressure Ball Valve, 1 NPT, 316 Stainless Steel, 15000psi, Two-Way

Save $942.57
DMICSKU: BVHHH1000N2241
1-2 Weeks
Price:
$3,627.99 $4,570.56

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-2 Weeks
Factory Location Wheatfield, NY
Port Size 1" NPT
O Ring Seals Buna
Pressure Rating 15000
Body Material Stainless Steel
Ball Seal High Temp PEEK
Flow Style 2-Way

Description

The DMIC BVHHH ball valve is a floating ball design designed for pressures up to 15,000psi with a 3 to 1 safety factor. Special reinforcements prevent collapse of ball seals, ensuring that most of DMIC's ball seal materials can be used. This valve is designed with DMIC's blowout-proof stem, and is compatible with a wide array of DMIC accessories.
