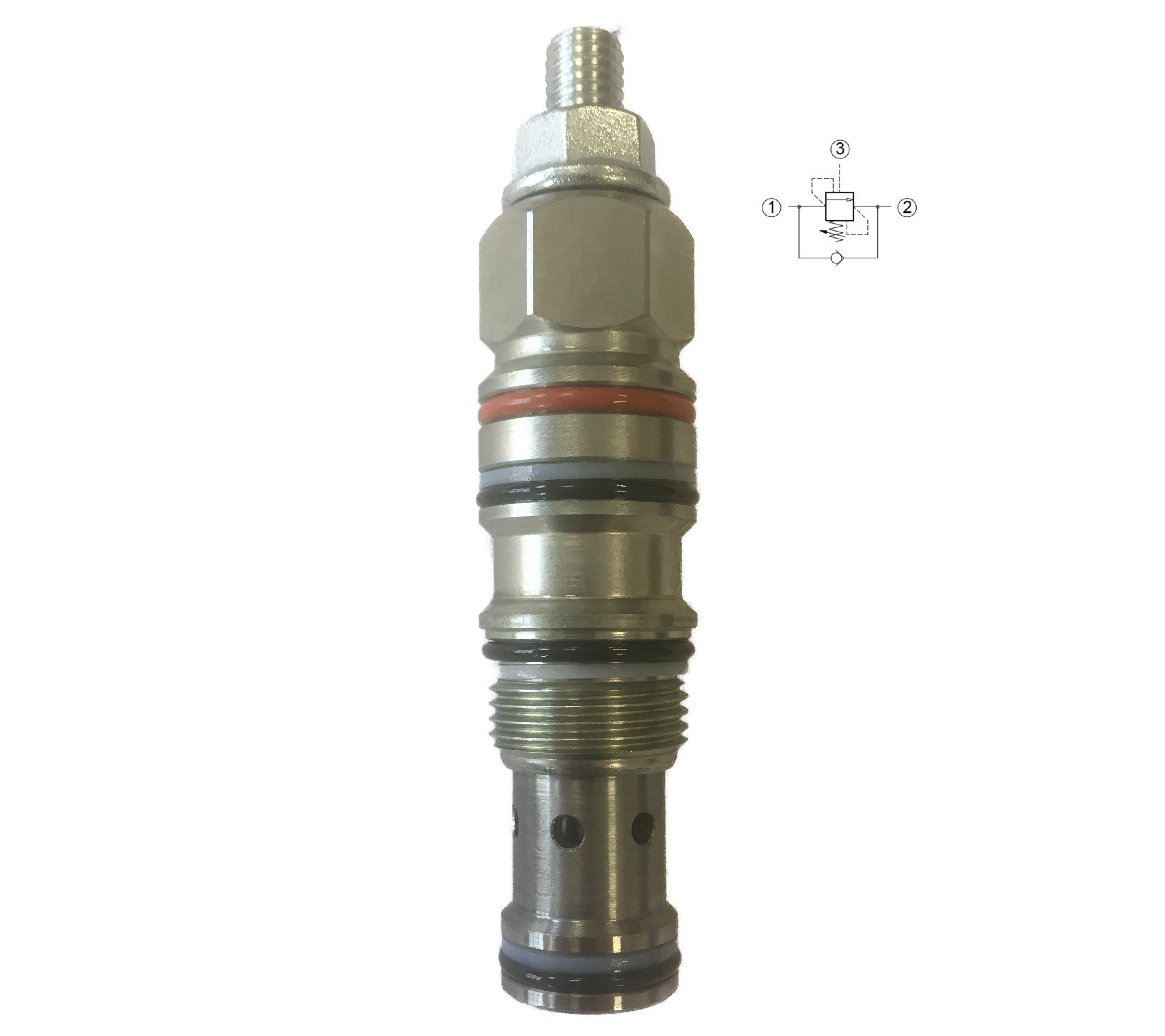

C020M210031100A : Valvole Vented Counterbalance, 3:1, 16GPM, 6000, Vented Type, 1015 to 3045psi adjustable, 3045psi Preset, T-11A
Roll over image to zoom in Click on image to zoom
C020M210031100A : Valvole Vented Counterbalance, 3:1, 16GPM, 6000, Vented Type, 1015 to 3045psi adjustable, 3045psi Preset, T-11A

C020M210031100A : Valvole Vented Counterbalance, 3:1, 16GPM, 6000, Vented Type, 1015 to 3045psi adjustable, 3045psi Preset, T-11A

ValvoleSKU: C020M210031100A
1-2 Weeks
Price:
$88.30

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-2 Weeks
Factory Location Medina, Ohio
Valve Type Cartridge
Flow Rating 16
Pressure Rating 6000
Cartridge Cavity T-11A
Country of Manufacture Italy
Height 0.85
Length 4.14
Width 0.85
Weight 0.33

Description

The Valvole America C06 Ventilata (Vented) cartridge is a counterbalance valve with a vented spring chamber. Both the relief and the pilot opening of the valve are independent from backpressure at Port 2. These valves must be used only in conjunction with directional valves with closed center spools and equipped with port relief valves. This version of the counterbalance valve will be more efficient in systems with high backpressure, or line losses between the counterbalance valve and the directional control.
