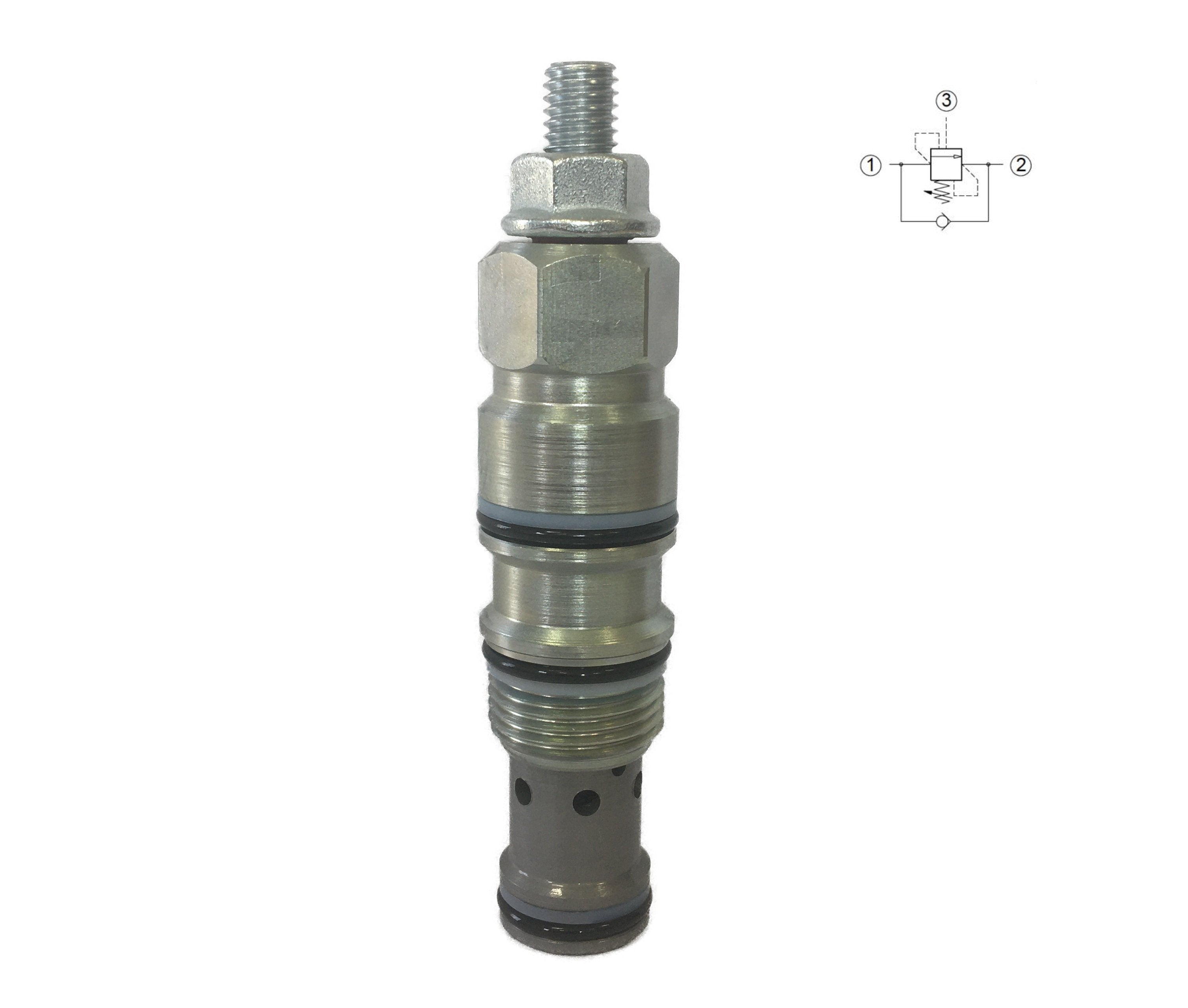

C200D210031100A : Valvole Counterbalance, 3:1, 20 GPM, 5000psi, 2030 to 3842psi adjustable, 3045psi Preset, T-11A
Roll over image to zoom in Click on image to zoom
C200D210031100A : Valvole Counterbalance, 3:1, 20 GPM, 5000psi, 2030 to 3842psi adjustable, 3045psi Preset, T-11A

C200D210031100A : Valvole Counterbalance, 3:1, 20 GPM, 5000psi, 2030 to 3842psi adjustable, 3045psi Preset, T-11A

ValvoleSKU: C200D210031100A
1-2 Weeks
Price:
$58.90

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-2 Weeks
Factory Location Medina, Ohio
Valve Type Cartridge
Flow Rating 20
Pressure Rating 5000
Cartridge Cavity T-11A
Country of Manufacture Italy
Height 0.85
Length 4.06
Width 0.85
Weight 0.33

Description

The Valvole America C20 Normale (Normal) cartridge is a standard Counterbalance Valve with a standard 3:1 pilot ratio and adjustable pressure settings. Port 1 is the load port, Port 2 is the exhaust port, and Port 3 is the pilot port. The spring chamber on the Normale counterbalance valve is drained/connected to Port 2. In this case, backpressure has effects on both the relief and pilot opening pressures, since it pushes the relief piston in the closed direction and opposes the pilot piston.
