Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 9 Weeks |
| Factory Location | Finland |
| Horsepower | 6 kW |
| Flow Rating | Flow Limited Internally |
| Pressure Rating | 5100 |
| Inlet Flow Rate | 9.8 |
| Operating Temp Range | Up to 158F |
| Inlet Port | 0.5 (1/2") BSP |
| Outlet Port | 0.5 (1/2") BSP |
| Voltage | 220VDC |
| Series | HMG-CMG |
| Country of Manufacture | Finland |
| Height | 13.2 |
| Length | 23.5 |
| Width | 12.9 |
| Weight | 128 |
Description

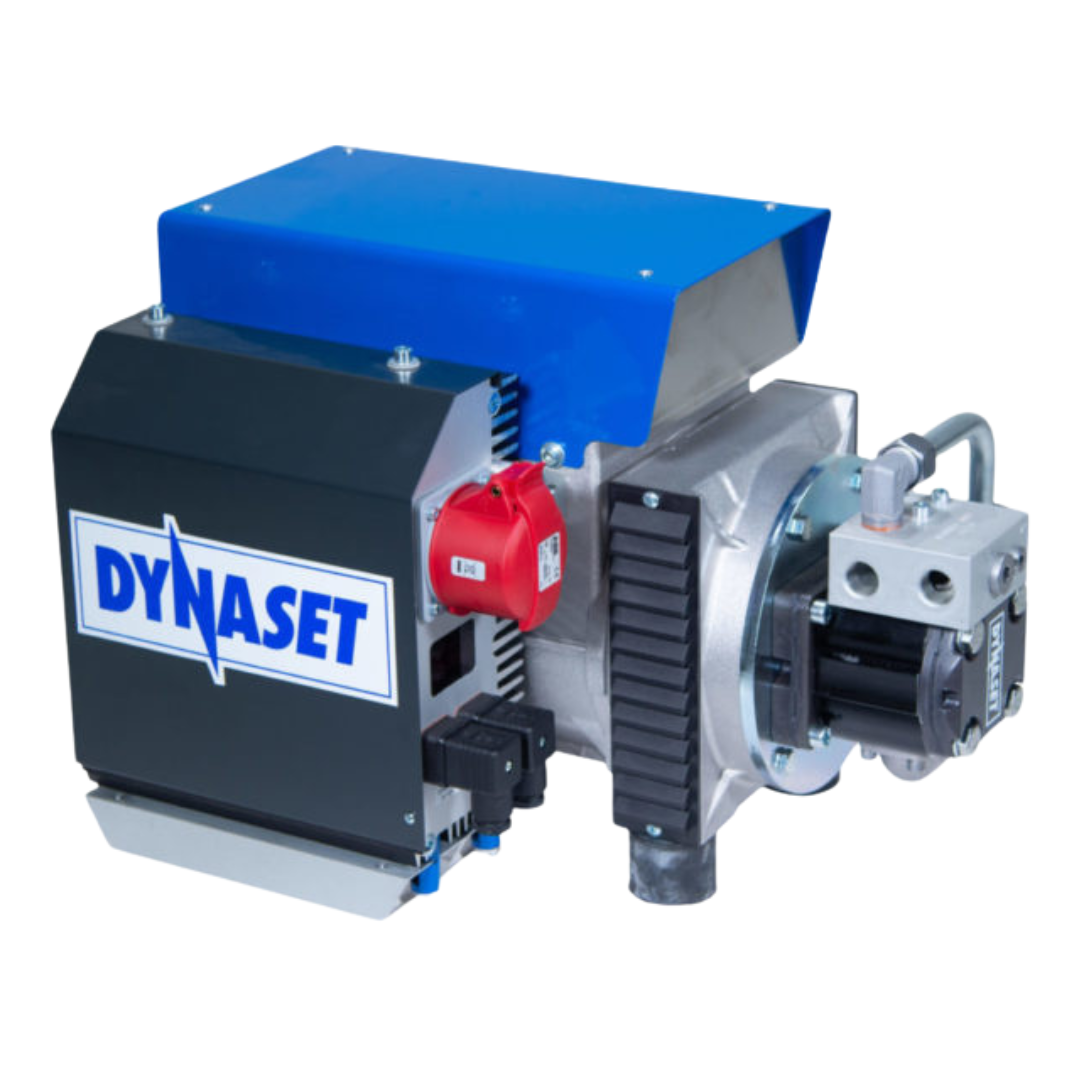

The Dynaset HMG/CMG PRO Hydraulic Magnet Generator transforms the hydraulic power of a mobile machine into DC electricity to efficiently power lifting magnets. This generator enhances productivity with an exceptional demagnetizing time of just 0.8 seconds. Its compact hydraulic motor allows for versatile installation, and it is designed for easy setup, reliability, and durability. With a maintenance-free operation and a two-year or 2000-hour warranty, the HMG PRO provides a robust power source for any lifting magnet. It features a superior power-to-size ratio, starting from just 75 pounds, and is available in models ranging from 3 kW to 40 kW. The generator can be controlled electrically or hydraulically, with optional smart features (DSMART) for monitoring and adjustment, and an accompanying DSMART app for mobile devices. Additional auxiliary AC power is available with an electric central, making it compatible with any hydraulic system.
