Product Details
| Usually Ships Within | 6-8 Weeks |
|---|---|
| Factory Location | York, Pennsylvania |
| Solid Model | Click here to download |
| Valve Type | Subplate/Manifold Mounted Valve |
| Valve Interface | D03 (NG6) |
| Flow Rating | 18.5 |
| Pressure Rating | 5075 |
| Valve Series | DHA |
| Voltage | 24 VDC |
| Actuation Type | Solenoid Operated |
| Solenoid Electrical Connection | GK-1/2" ISO/UNI-6125 |
| Spool Configuration | Cylinder Spool, All Ports Blocked in Neutral |
| Approvals | Multicertification ATEX, IECEx, EAC, PESO, CCC |
| Positions | 3-Position |
| Way | 4-Way |
| Country of Manufacture | Italy |
| Height | 6.5 |
| Length | 12 |
| Width | 2 |
| Weight | 10 |
Description

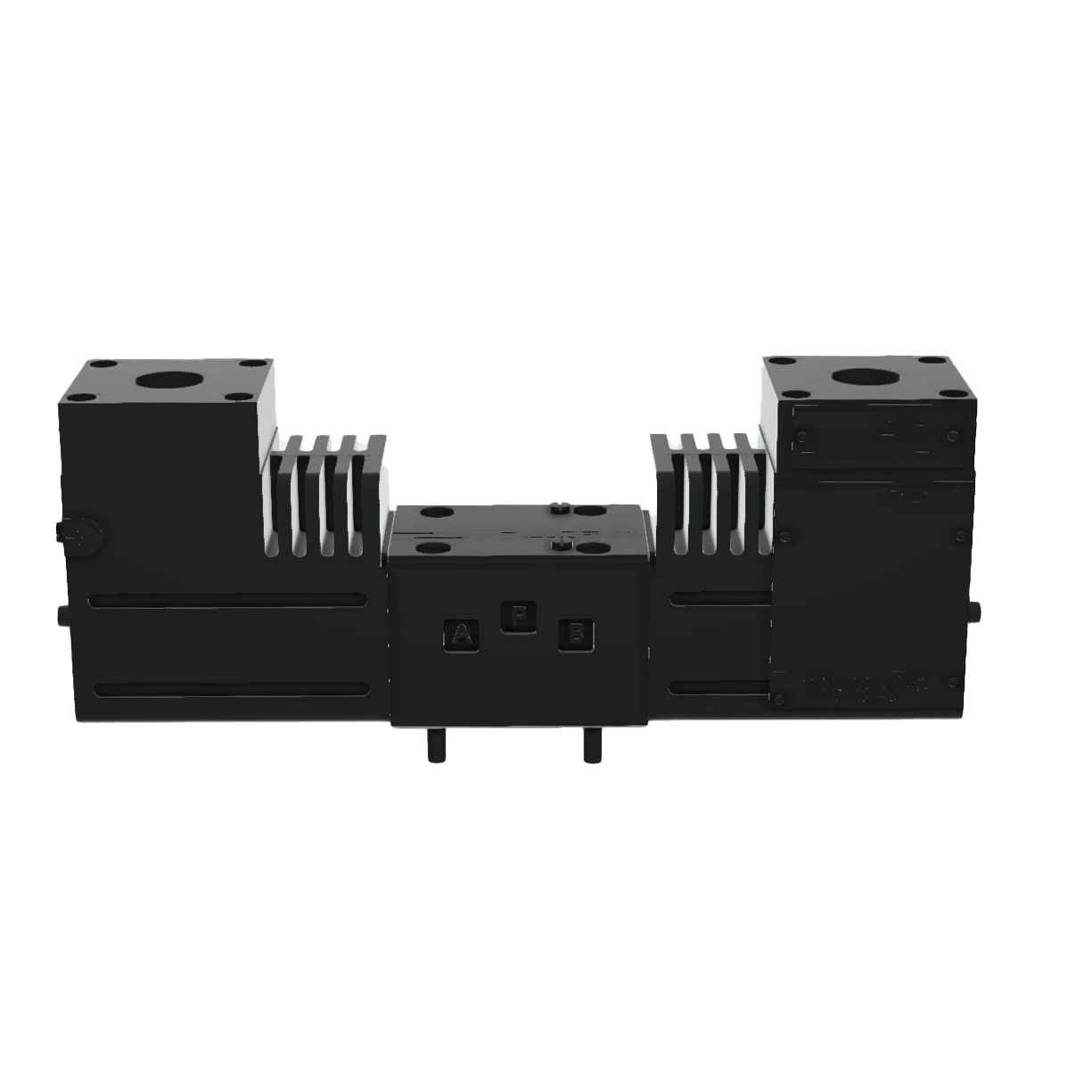

The Atos DHA Valve is an On-Off, spool type directional valve equipped with explosion proof solenoids certified for safe operation in hazardous environments with potentially explosive atmosphere. All certifications met are listed below. DHA valves are SIL compliant with IEC 61508 (TUV certified). The flameproof enclosure of the solenoid prevents the propagation of accidental internal sparks or fire to the external environment.
The solenoid is also designed to limit the surface temperature within the classified limits.
