Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | York, Pennsylvania |
| Material | Carbon Steel, Zinc coated with black passivation |
| Valve Type | Subplate/Manifold Mounted Valve |
| Valve Interface | D03 (NG6) |
| Flow Rating | 15.85 |
| Pressure Rating | 5075 |
| Operating Temp Range | -22F to 158F |
| Voltage | N/A |
| Seal Material | NBR |
| Actuation Type | Double Solenoid, 3 positions, spring centered |
| Solenoid Electrical Connection | Without Coil, prepped for DC coil |
| Series | DHL |
| Spool Configuration | All Ports Blocked Neutral |
| Positions | 3-Position |
| Way | 4-Way |
| Country of Manufacture | Italy |
| Height | 3.5 |
| Length | 8 |
| Width | 2 |
| Weight | 5 |
Description

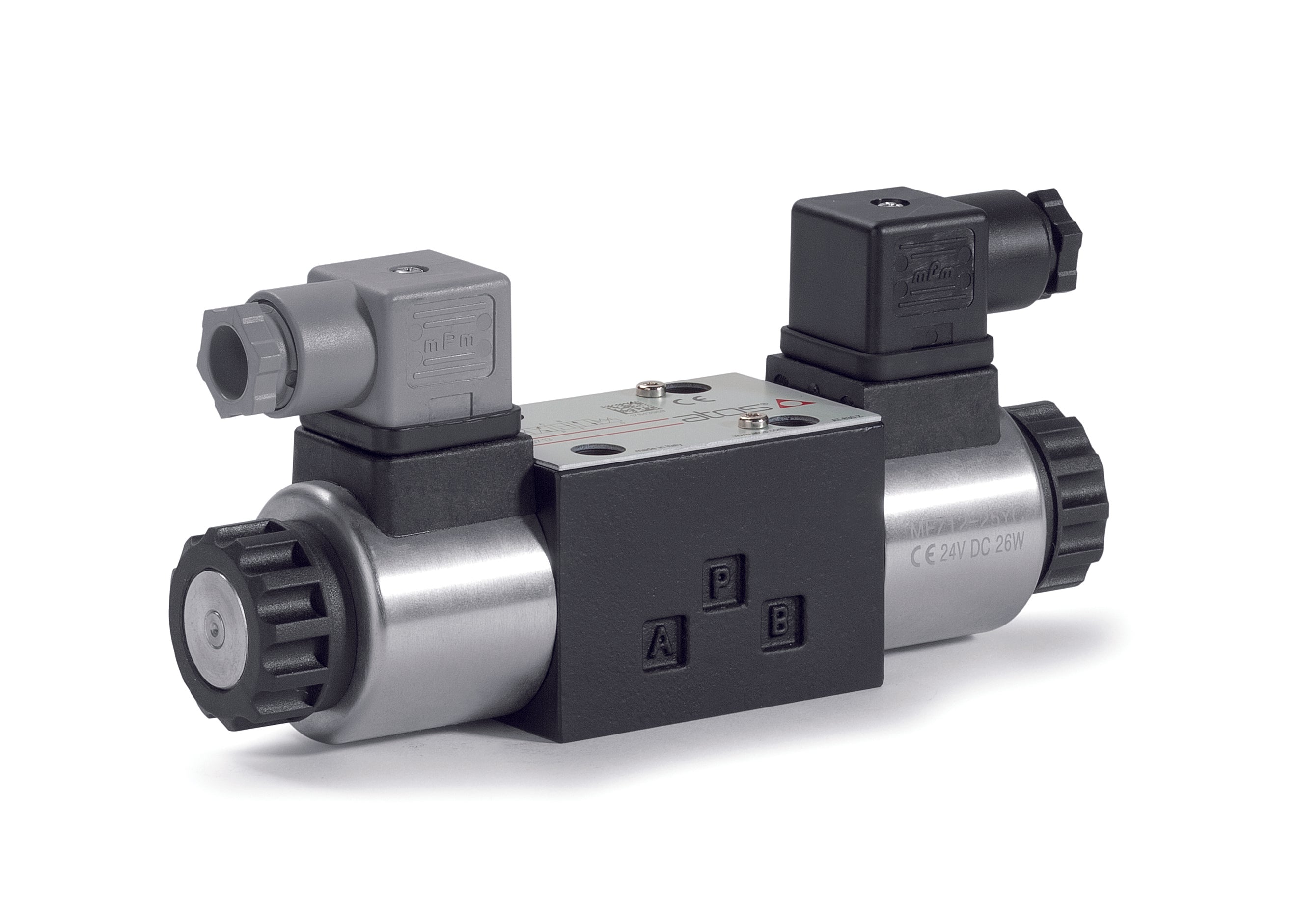

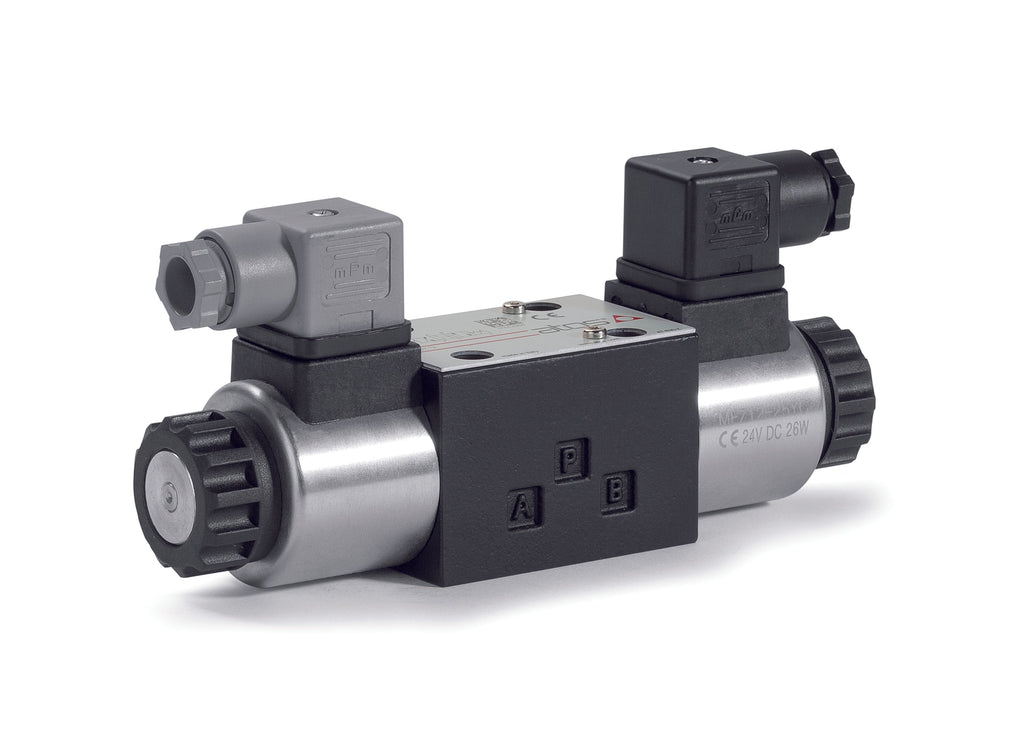

Discover the precision and reliability of the Atos DHL Industrial Hydraulic On/Off Directional Control Valve, designed for robust performance in industrial applications. This spool-type valve features a compact subplate design with AC or DC solenoids, offering flexibility with DIN or Deutsch connectors. It operates in 4/3, 4/2, or 3/2 configurations, utilizing wet-type solenoids that are easily replaceable without tools. The valve body, crafted through shell-moulding casting, includes wide internal passages to minimize pressure drops, ensuring efficient hydraulic operation. Suitable for mounting on ISO 4401 Size 06 surfaces (equivalent to D03 or NG6 standards), it handles a maximum flow of 60 lpm (15.8 GPM) and pressures up to 350 bar (5075 psi), making it ideal for demanding industrial environments.
