Product Details
| Usually Ships Within | 6-8 Weeks |
|---|---|
| Factory Location | York, Pennsylvania |
| Solid Model | Click here to download |
| Valve Type | Subplate/Manifold Mounted Valve |
| Valve Interface | D03 (NG6) |
| Flow Rating | 6.6 |
| Pressure Rating | 5075 |
| Valve Series | DHW |
| Actuation Type | Solenoid Operated |
| Solenoid Electrical Connection | DIN 43650 |
| Spool Configuration | P to B and A to T in Neutral |
| Approvals | Surface Environment ATEX |
| Positions | 3-Position |
| Way | 4-Way |
| Country of Manufacture | Italy |
| Height | 4.5 |
| Length | 13.5 |
| Width | 2 |
| Weight | 10 |
Description

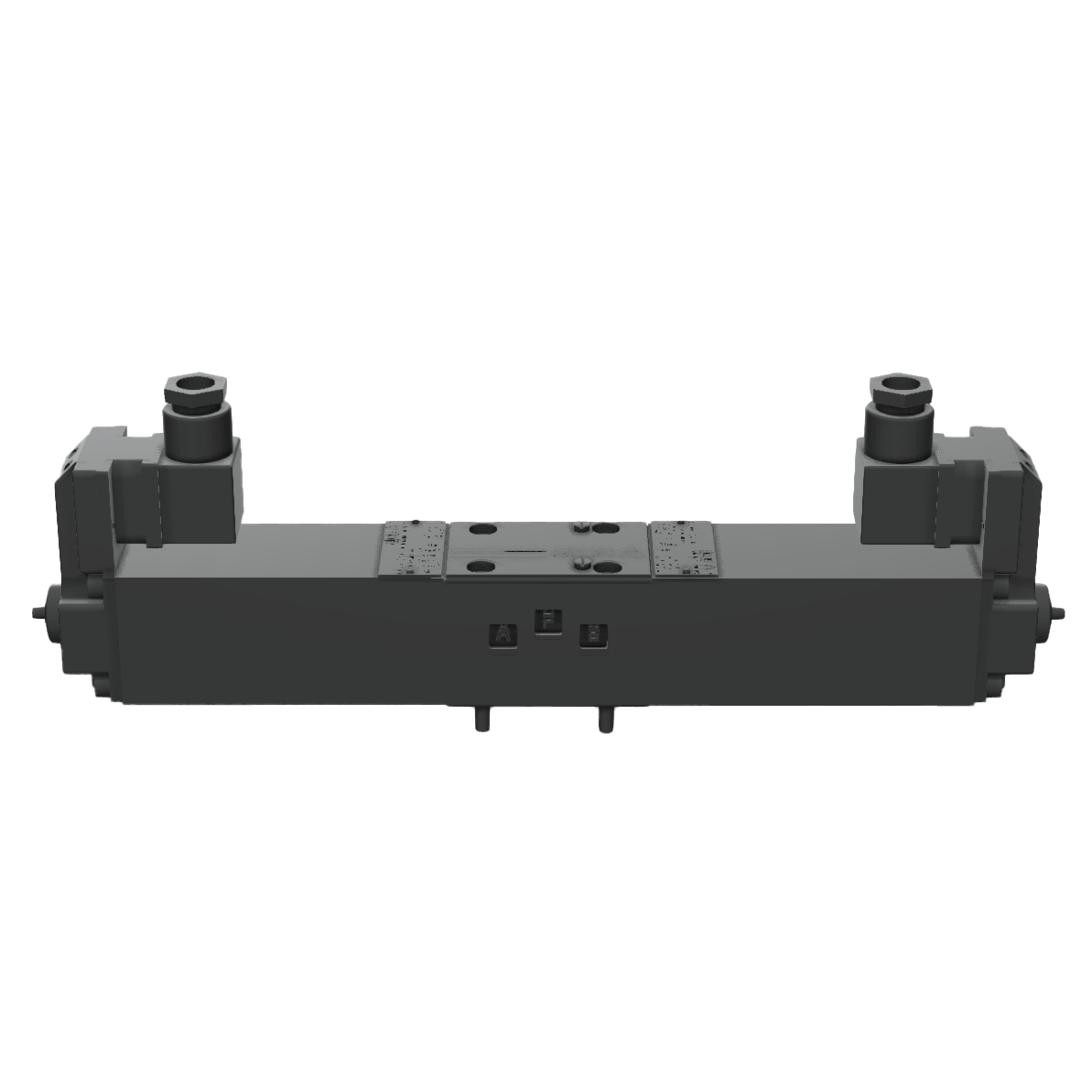

The Atos DHW Valve is an On-Off, spool type directional valve equipped with intrinsically safe solenoids certified for safe operation in hazardous environments with potentially explosive atmosphere. All certifications met are listed below. DHA valves are SIL compliant with IEC 61508 (TUV certified). These valves must be electrically powered through specific 'safety barriers' limiting the max current to the solenoid, per the catalog.
