Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | York, Pennsylvania |
| Material | Carbon Steel |
| Valve Type | Subplate/Manifold Mounted Valve |
| Valve Interface | D03 (NG6) |
| Flow Rating | 7.9 |
| Pressure Rating | 4570 |
| Operating Temp Range | -22F to 158F |
| Voltage | 110DC |
| Seal Material | FKM |
| Actuation Type | Single Solenoid, spring return |
| Solenoid Electrical Connection | DIN |
| Series | DLEHM |
| Spool Configuration | P to A, T Blocked in Neutral |
| Positions | 2-Position |
| Way | 3-Way |
| Country of Manufacture | Italy |
| Height | 3.5 |
| Length | 6.5 |
| Width | 2 |
| Weight | 4 |
Description

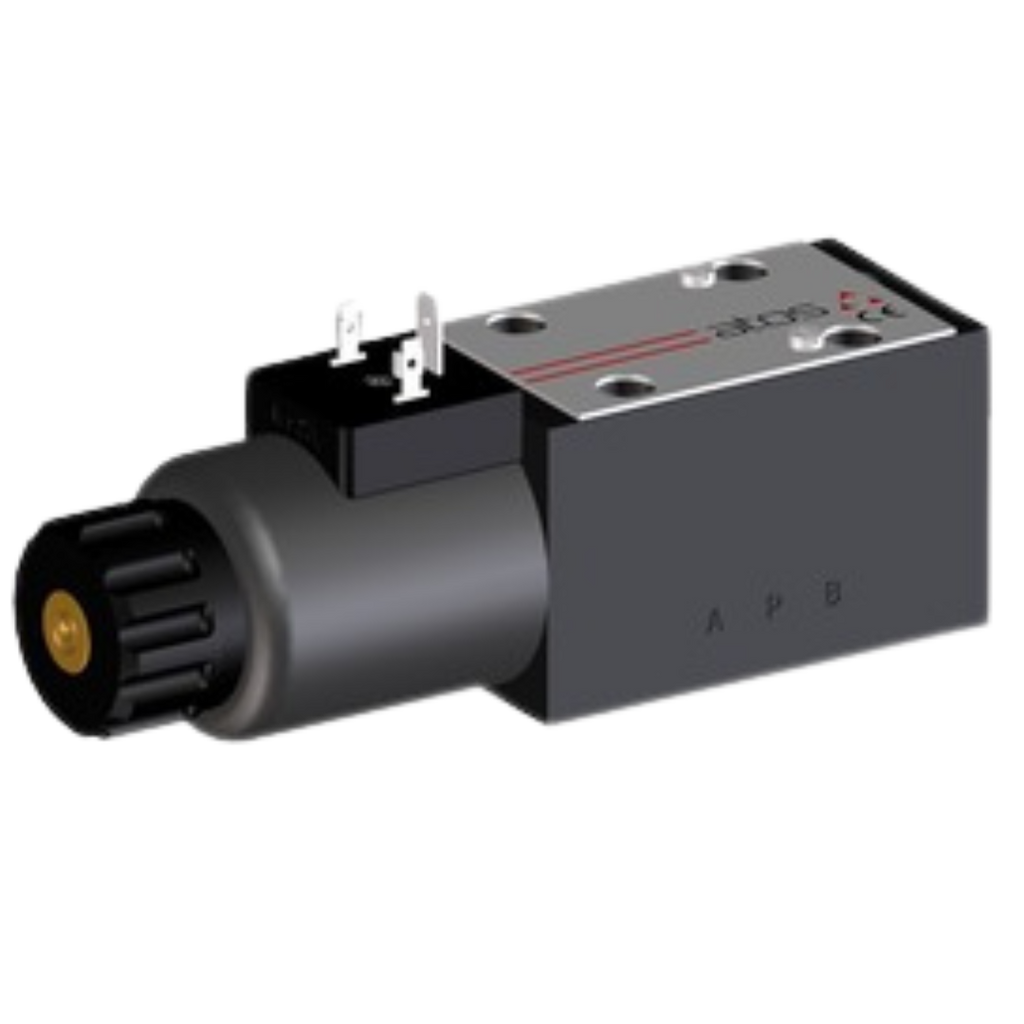

The Atos DPH3-100 DLEH/DLEHM Solenoid Directional Valve is a high-efficiency hydraulic valve designed for applications that need leak-free operation. It uses a poppet mechanism for direct, reliable control and is equipped with solenoids for either AC or DC power. This valve can handle up to 30 liters per minute and 315 bar of pressure, making it suitable for demanding hydraulic systems. It features DIN connectors, is IP65 rated for protection against dust and water, and meets North American safety standards with cURus certification.
