Save $3.55
Deltrol Fluid ProductsSKU: DRV-100-N-K-4
1-3 Days
Price:
$56.99 $60.54

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Operation Relieving
Valve Type Relief
Adjustment Type Knob Adjustment
Style Poppet
Flow Rating 10.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Outlet Pressure Range 100-400psi
Pressure Range 100-400psi
Series DRV
Cartridge Cavity C-10-2
Country of Manufacture United States/Vietnam

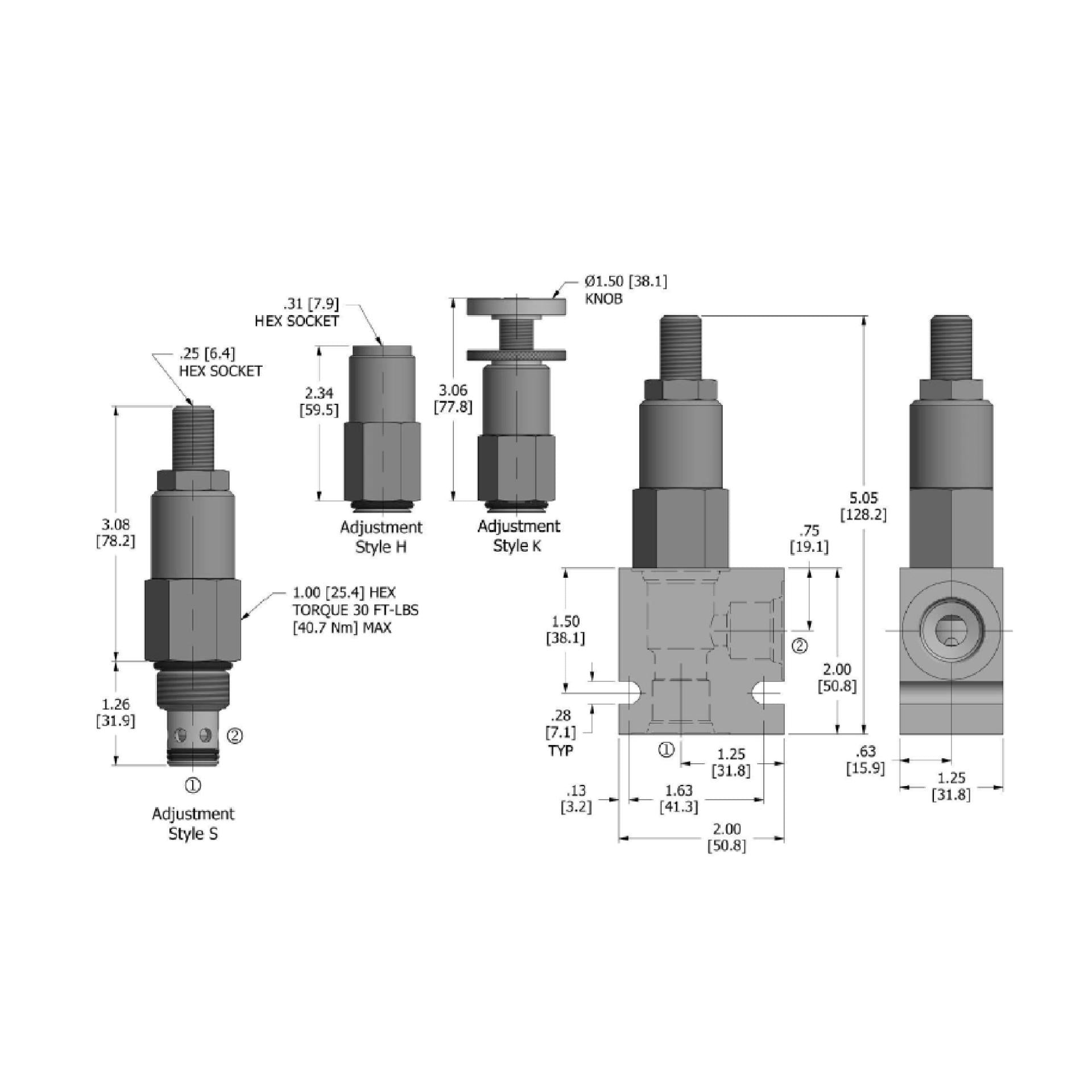

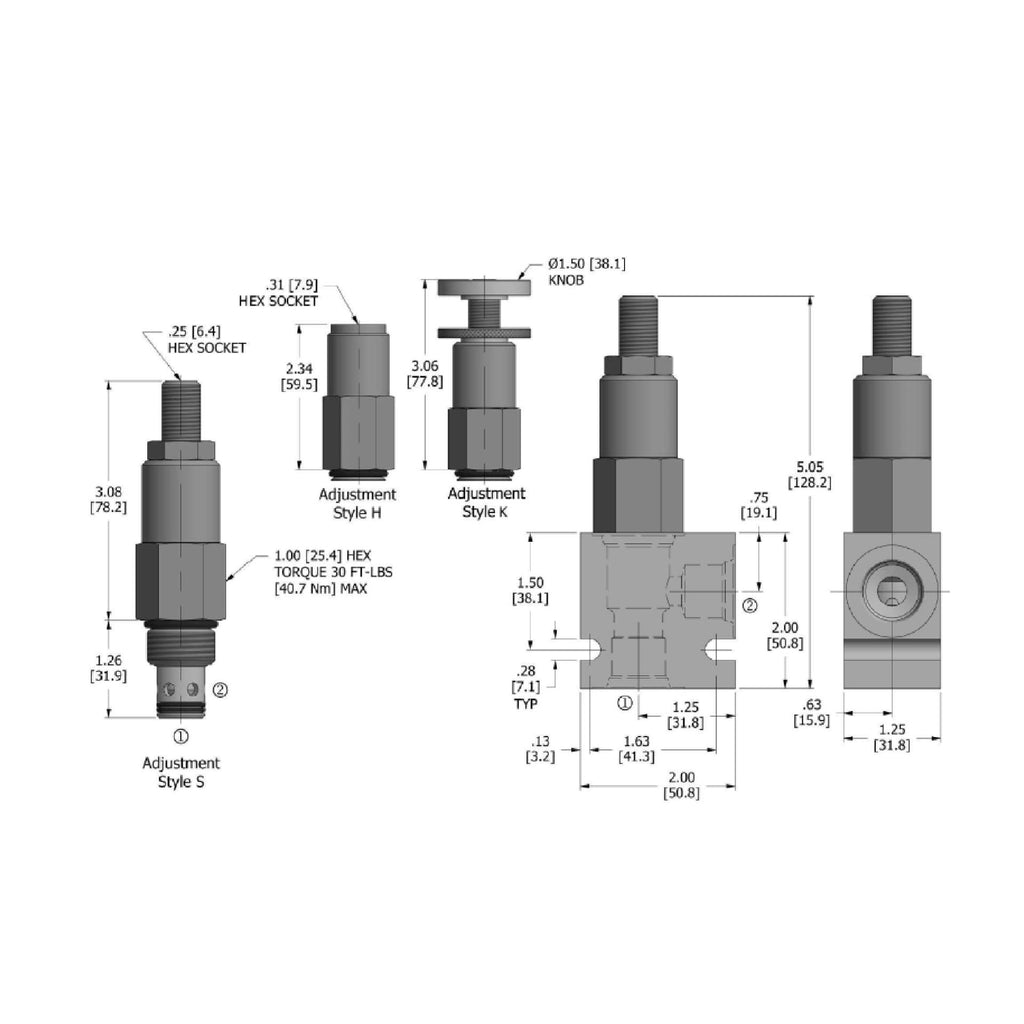

Height 1.5
Length 3.06
Width 1.5
Weight 2

Description

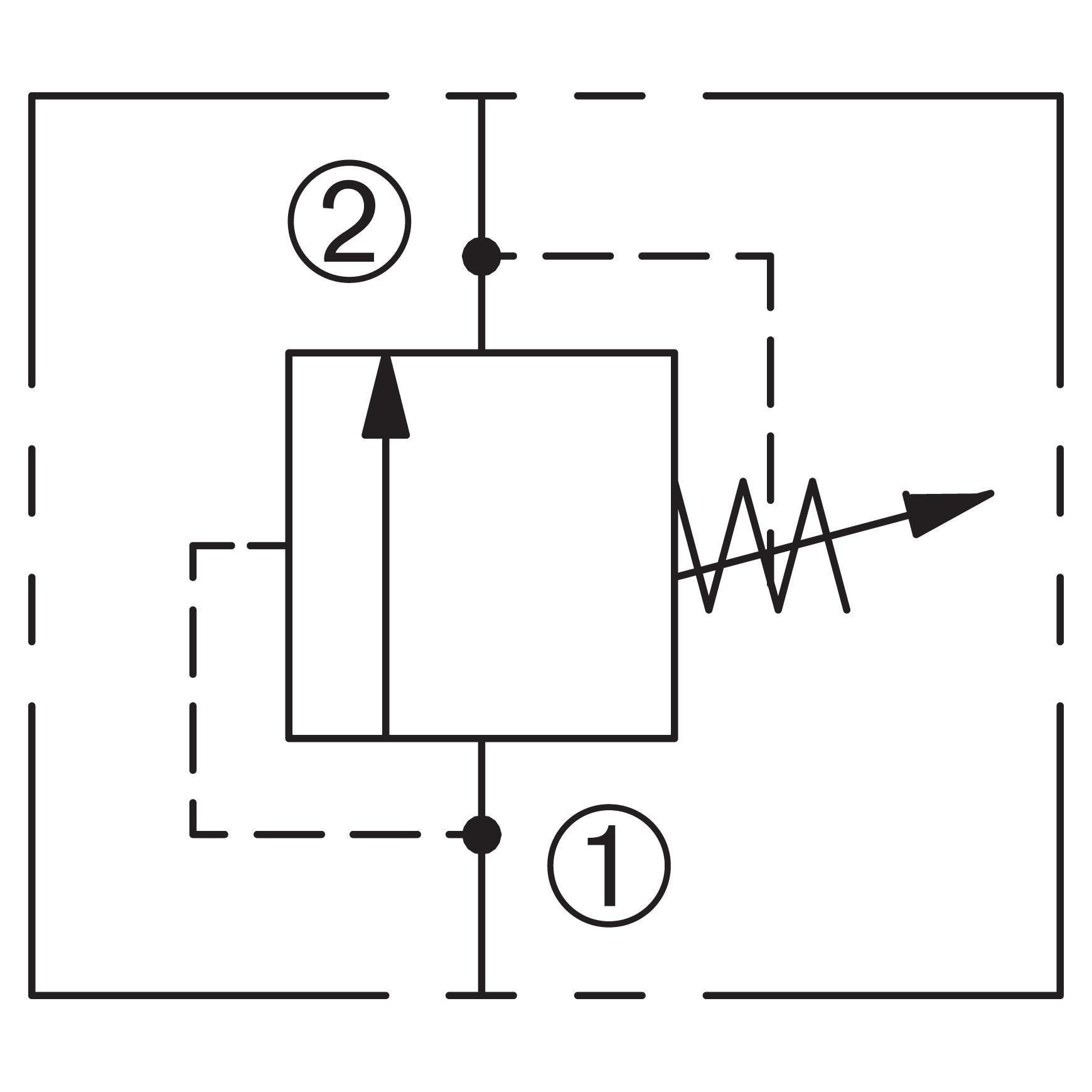

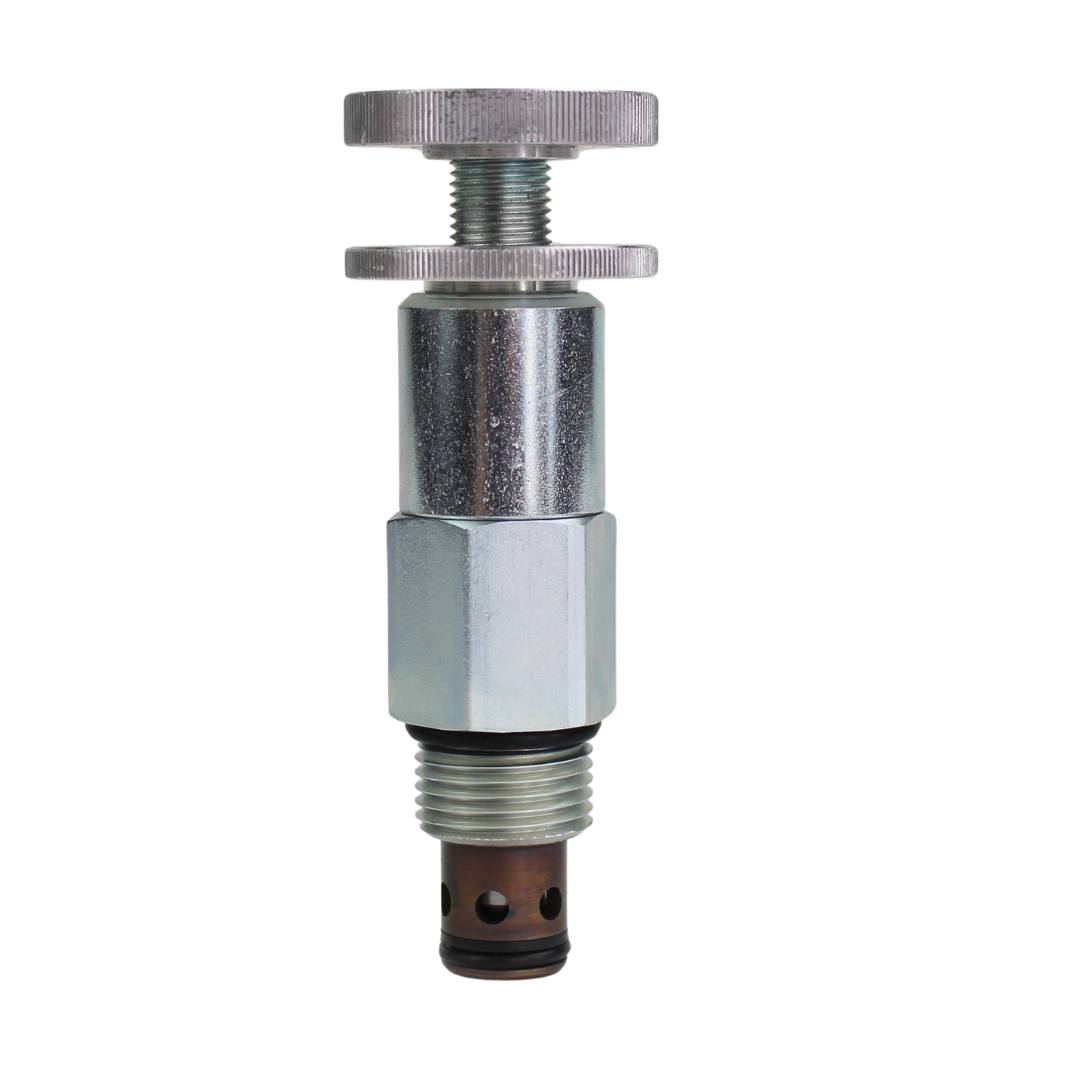

The Deltrol Fluid Products DRV-100 Direct-Acting, Adjustable, Poppet Relief Valve is a high-performance valve designed to safeguard hydraulic systems from excessive pressure. This valve stops flow from port 1 to port 2 until a predetermined pressure is reached, then allows flow to protect the circuit from overpressurization. It features rapid response to pressure changes, a hardened poppet for extended durability, and options for tamper-resistant adjustments. With a pressure range of 100 to 3000 PSI and a flow capacity of up to 10 GPM, it operates reliably in temperatures from -30°F to +250°F. The valve's adjustable settings and sturdy aluminum construction ensure long-lasting performance and effective pressure management.
