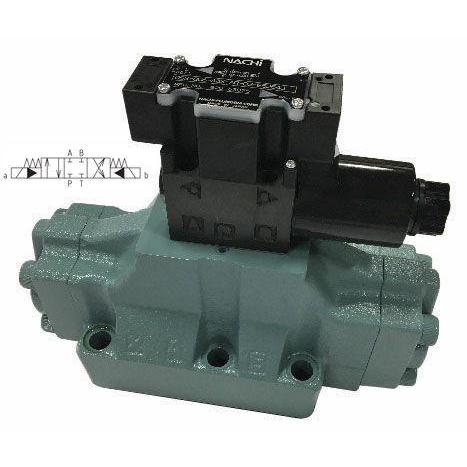

DSA-G06-C5-AR-D2-E22 : Nachi Solenoid Valve, 3P4W, D08, DIN, D08 (NG25), 158GPM, 4640psi, All Ports Blocked Neutral, 24 VDC, DIN, Spring Centered
Roll over image to zoom in Click on image to zoom
DSA-G06-C5-AR-D2-E22 : Nachi Solenoid Valve, 3P4W, D08, DIN, D08 (NG25), 158GPM, 4640psi, All Ports Blocked Neutral, 24 VDC, DIN, Spring Centered

DSA-G06-C5-AR-D2-E22 : Nachi Solenoid Valve, 3P4W, D08, DIN, D08 (NG25), 158GPM, 4640psi, All Ports Blocked Neutral, 24 VDC, DIN, Spring Centered

Save $158.01
NachiSKU: DSA-G06-C5-AR-D2-E22
4-6 Weeks
0
Price:
$586.99 $745.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Stock 0
Factory Location Greenwood, Indiana
Solid Model

Click here to download

Valve Type Subplate/Manifold Mounted Valve
Valve Interface D08 (NG25)
Flow Rating 158
Valve Options Internal Drain
Pressure Rating 4640
Voltage 24 VDC
Actuation Type Solenoid Operated
Solenoid Electrical Connection DIN Connector EN 175301-803-A
Spool Configuration Cylinder Spool, All Ports Blocked in Neutral
Positions 3-Position
Way 4-Way
Country of Manufacture Japan
Height 10.04
Length 4.57
Width 8.37
Weight 33

Description

The Nachi DSA-G06 is a standard 3-Position, 4-Way, Solenoid Operated Directional Valve. Long-life operation is ensured with the use of the high performance Nachi SS or SA series D03 wet solenoid valve as the pilot valve. This is a high-pressure, high-flow capacity valve. An original flow path design provides for low pressure loss and enhanced system circuit efficiency. Internal modification of the pilot and drain can be accomplished without removing the valve by simply connecting and disconnecting plugs.
