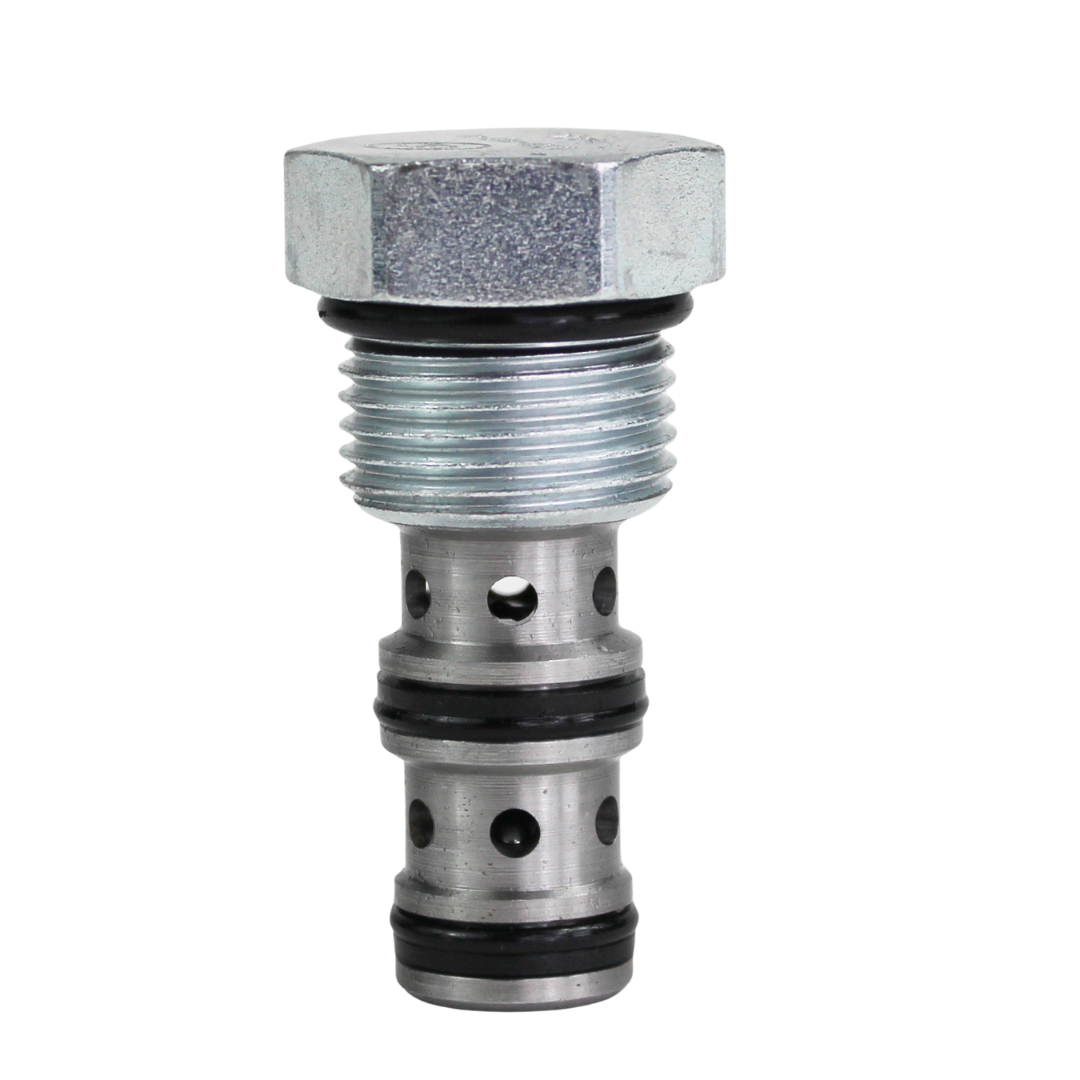

DSH-100-N : Deltrol Shuttle Valve, Ball Type, C-10-3, 3000psi, 6GPM
Roll over image to zoom in Click on image to zoom
DSH-100-N : Deltrol Shuttle Valve, Ball Type, C-10-3, 3000psi, 6GPMDSH-100-N : Deltrol Shuttle Valve, Ball Type, C-10-3, 3000psi, 6GPMDSH-100-N : Deltrol Shuttle Valve, Ball Type, C-10-3, 3000psi, 6GPMDSH-100-N : Deltrol Shuttle Valve, Ball Type, C-10-3, 3000psi, 6GPMDSH-100-N : Deltrol Shuttle Valve, Ball Type, C-10-3, 3000psi, 6GPM

DSH-100-N : Deltrol Shuttle Valve, Ball Type, C-10-3, 3000psi, 6GPM

Deltrol Fluid ProductsSKU: 10128-38
1-3 Days
Price:
$42.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Shuttle
Style Ball
Flow Rating 6.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DSH
Cartridge Cavity C-10-3
Country of Manufacture United States/Vietnam

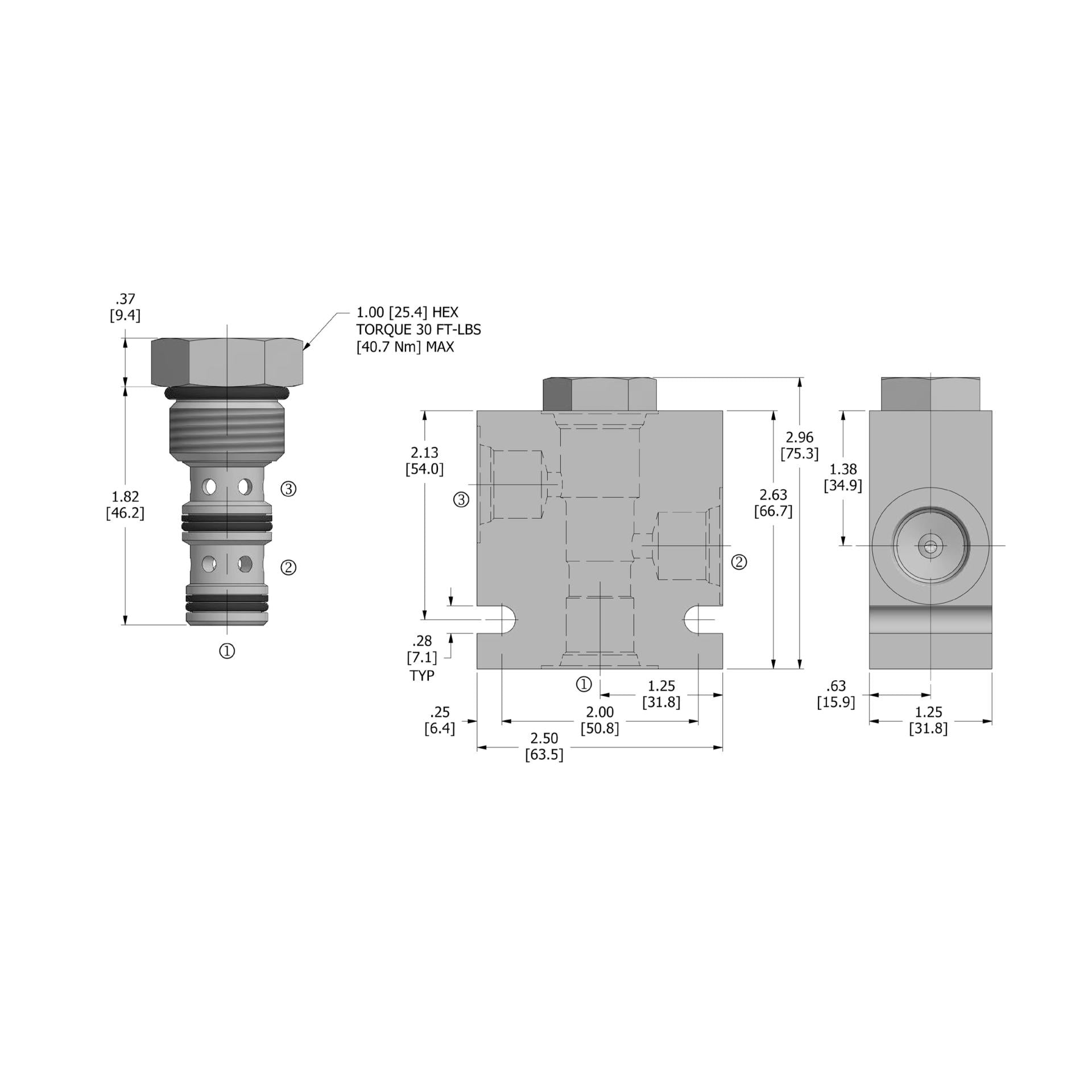

Height 1.5
Length 2
Width 1.5
Weight 2

Description

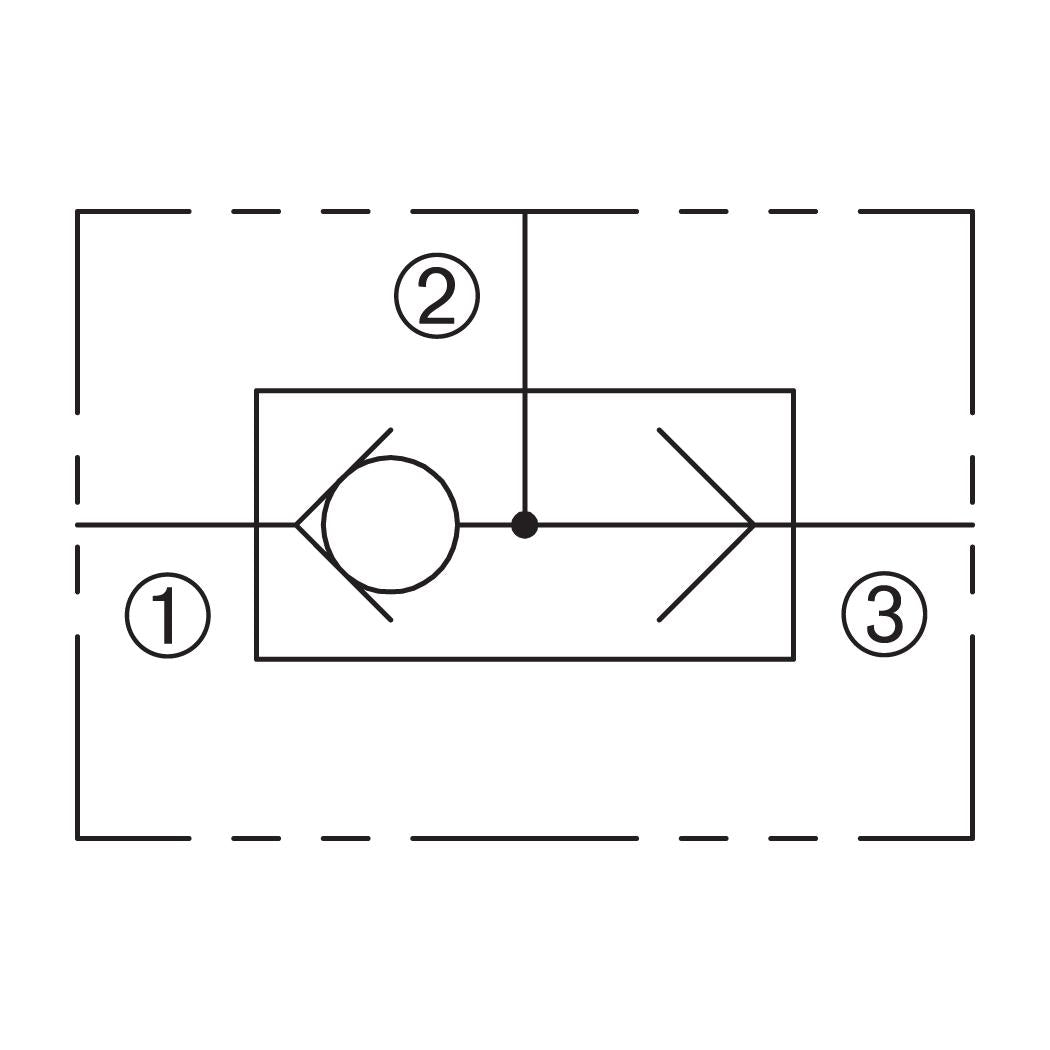

The Deltrol Fluid Products DSH-100 Ball-Type Shuttle Valve is a cartridge valve designed to efficiently direct hydraulic flow from two possible inlet ports to a single common outlet port. It operates by using a check ball that shifts to the port with the highest pressure differential, allowing flow to pass through to the outlet port. This design ensures optimal flow direction based on pressure conditions, offering excellent response to pressure changes and durability with hardened components. The valve supports a maximum operating pressure of 3000 PSI and flow rates up to 6 GPM, and is constructed from anodized aluminum for long-lasting performance. It is suitable for a range of applications requiring reliable pressure management and flow direction.
