Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Stock | 10 |
| Factory Location | Greenwood, Indiana |
| Solid Model | Click here to download |
| Valve Type | Subplate/Manifold Mounted Valve |
| Valve Interface | D08 (NG25) |
| Flow Rating | 158 |
| Valve Options | Internal Drain |
| Pressure Rating | 4640 |
| Voltage | 24 VDC |
| Actuation Type | Solenoid Operated |
| Solenoid Electrical Connection | Wiring Box with Lights |
| Spool Configuration | Cylinder Spool, All Ports Blocked in Neutral |
| Positions | 3-Position |
| Way | 4-Way |
| Country of Manufacture | Japan |
| Height | 10.04 |
| Length | 4.57 |
| Width | 8.37 |
| Weight | 33 |
Description

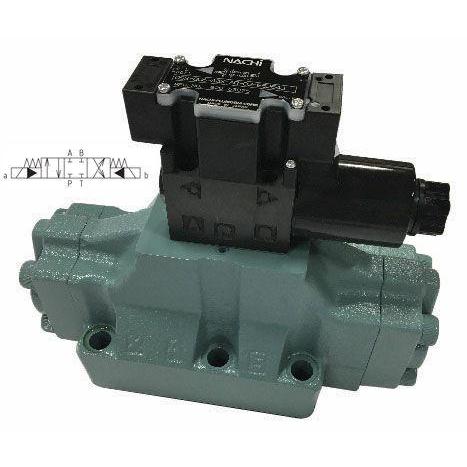

The Nachi DSS-G06 is a standard 3-Position, 4-Way, Solenoid Operated Directional Valve. Long-life operation is ensured with the use of the high performance Nachi SS or SA series D03 wet solenoid valve as the pilot valve. This is a high-pressure, high-flow capacity valve. An original flow path design provides for low pressure loss and enhanced system circuit efficiency. Internal modification of the pilot and drain can be accomplished without removing the valve by simply connecting and disconnecting plugs.
