Product Details
| Usually Ships Within | 4-6 Weeks |
|---|---|
| Factory Location | Tempe, Arizona |
| Material | Steel |
| Pressure Rating | 3000 |
| Inside Diameter | 0.375 (3/8") |
| Hose Outside Diameter | 0.625 (5/8") |
| Seal Material | Nitrile |
| Height | 21 |
| Length | 19.63 |
| Width | 8.75 |
| Weight | 49 |
Description

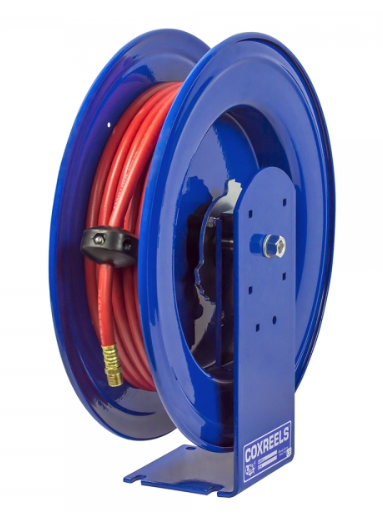

Coxreels EZ-E-MPL-350 Safety Series Spring Rewind Hose Reel for air/water/oil: 3/8-inch I.D., 50' hose capacity, 3000 PSI, without hose
| Retraction Method | EZ-Coil |
|---|---|
| Reel Type | Hose |
| Reel Design | Single Pedestal |
| Reel Mount Type | Floor, Wall, Ceiling, Bench and Vehicles |
| Swivel/Slip Ring | External fluid path with machined from solid brass 90-Degree full-flow NPT swivel inlet (Zinc plated steel swivel on HP models) ~ Swivel Seals: NITRILE |
| Material | Steel |
| Seal Material | Nitrile |
| Swivel Material | Brass |
| Bearings | 1-inch Permanently Lubricated Precision Bearings |
| Finish | Powder Coated |
| Max Temp | 250 Degrees F |
| Design & Structure | Designed for expandable metal cabinets and multiple reel bank systems, Solid one piece, heavy gauge 1/4-inch steel base and support post for maximum stability, 1-inch solid steel axle and lubricated precision bearings for smooth rotation |
| Retraction | Controlled retraction speed up to 80-percent slower on EZ-Coil models, see page 7 for details, Enclosed factory tuned and matched cartridge-style spring motor, Non corrosive stainless steel spring, pawl and zinc plated ratchet, Multi-position lock ratchet |
| Signature Features | Professional grade heavy duty steel construction, Durable proprietary CPC powder coat process, Rolled edges and ribbed discs provide strength and safety, Leading 2-year manufacturer's limited warranty, Made in the USA. |
| Feature 1 | SWIVEL - Machined from solid brass 90-degree full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount. |
| Feature 2 | EZ-COIL EQUIPPED - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80-percent slower than conventional reels. |
| Feature 3 | CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety. |
| Feature 4 | 1/4-inch STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.Exclusive Super Hubdual axle support system. |
| Feature 5 | BANK SYSTEMS - Designed for expandable metal cabinets and multiple reel bank systems for professional appearance and organization. |
| Feature 6 | OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, multi-position lock ratchet mechanism, and lubricated precision bearings. |
| Hose Inside Diameter | 0.375 (3/8") |
| Hose Outside Diameter | 0.625 (5/8") |
| Hose Length | 50' |
| Pressure Rating | 3,000.00 PSI |
| Reel Inlet | 0.375 (3/8") FNPT |
| Hose/Cord/Cable Included | No |
| Weight in lbs | 49.00 |
| Length | 19.63 Inches |
| Width | 8.75 Inches |
| Height | 21.00 Inches |
Coxreels E Series Expandable multiple bank system is the pinnacle in professional appearance and organization. The cabinets are interlocking and expandable to any number of spring driven reel assemblies required. Designed for easy installation, maintenance and servicing the E Series system is truly the professional
