Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 5-7 Days |
| Factory Stock | 22 |
| Factory Location | Louisville, Kentucky |
| Installation & Maintenance Manual | |
| Solid Model | |
| Service Manual | Click here to download |
| Port Size | 1/4" PTF |
| Indicator Option | With Indicator |
| Micron | Coalescing |
| Pressure Rating | 150 |
| Operating Temp Range | -29 to 122 F |
| Body Material | Zinc |
| Seal Material | Nitrile rubber |
| Flow Scfm | 9.5 |
| Bowl Material | Polycarbonate |
| Element Material | Synthetic fibre & polyurethane foam |
| Materials Of Construction | Zinc Body, Transparent Polycarbonate Bowl, Transparent Nylon Metal Bowl Liquied Level Indicator Lens, Synthetic Fiber and Polyurethane Foam Element, Chloroprene and Nitrile Elastomers |
| Service Parts | 4224-50 Wall Mounting Bracket, 4215-02 Quickmount Pipe Adapters, 4214-51 Quikclamp, 4214-52 Quikclamp and Wall Bracket Combo, 4380-500 Service Kit Seal and Gasket, 5925-09 Replacement Element |
| Drain Type | Auto drain |
| Country of Manufacture | United Kingdom |
| Height | 1.89 |
| Length | 7.6 |
| Width | 1.97 |
| Weight | 1.2 |
Description

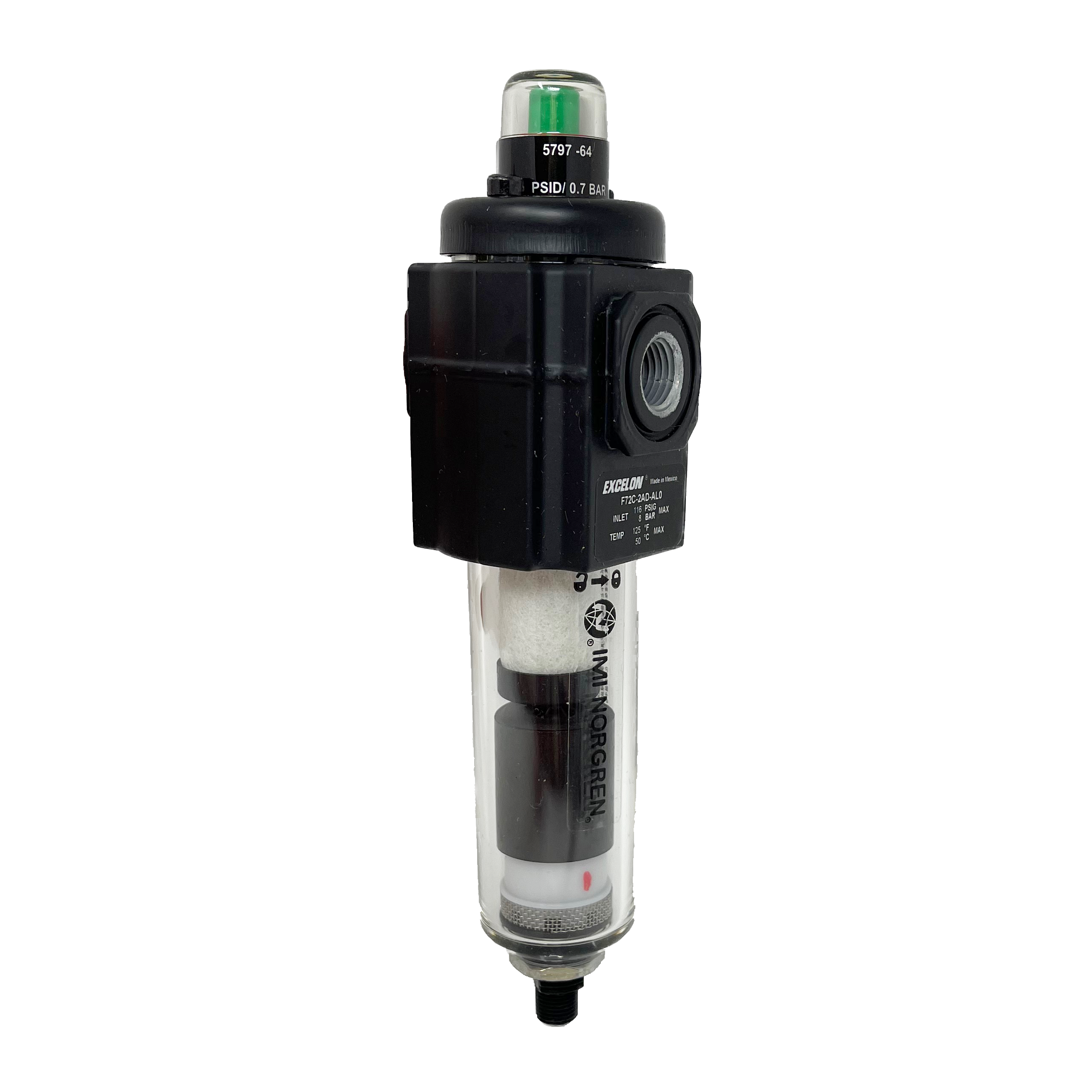

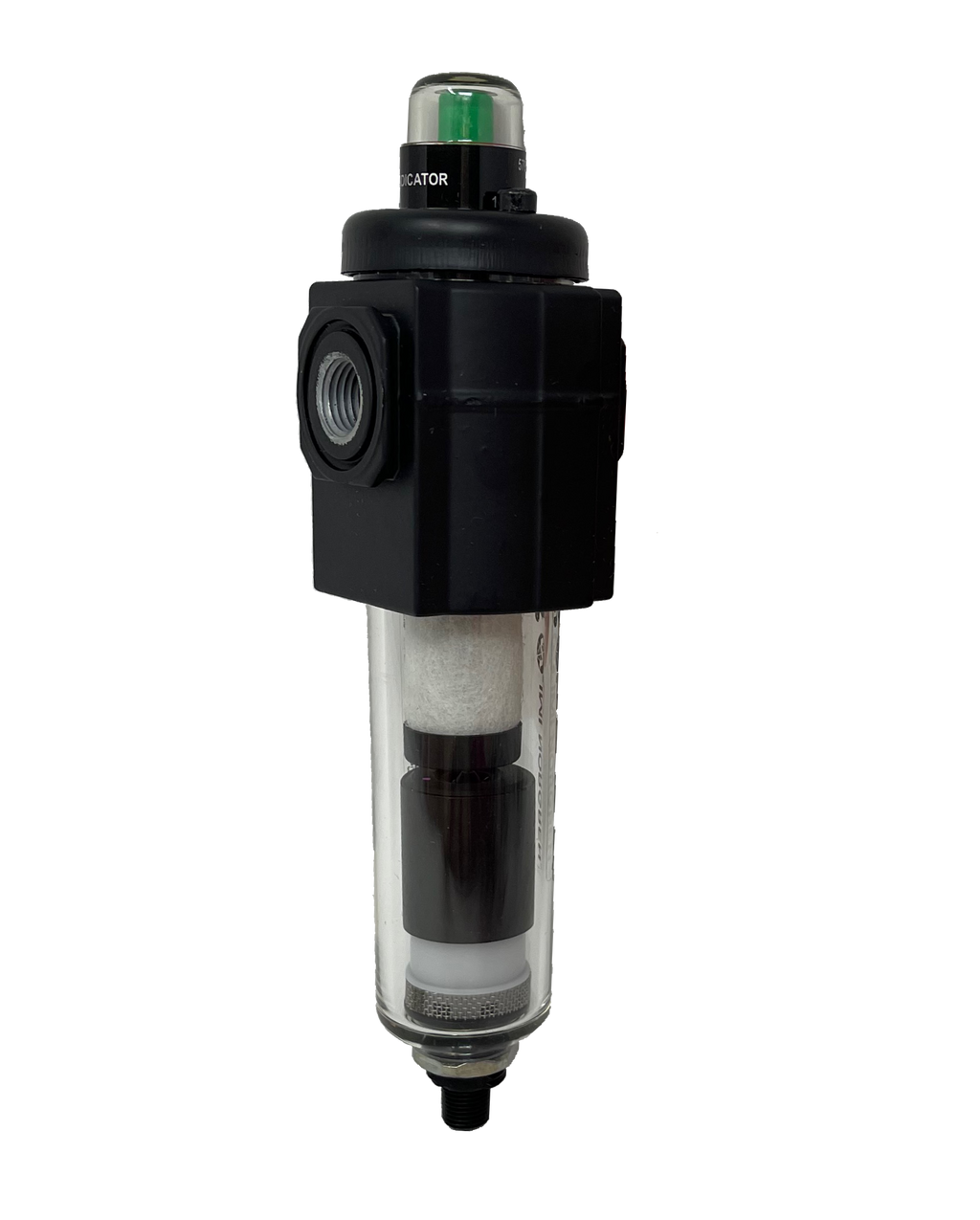

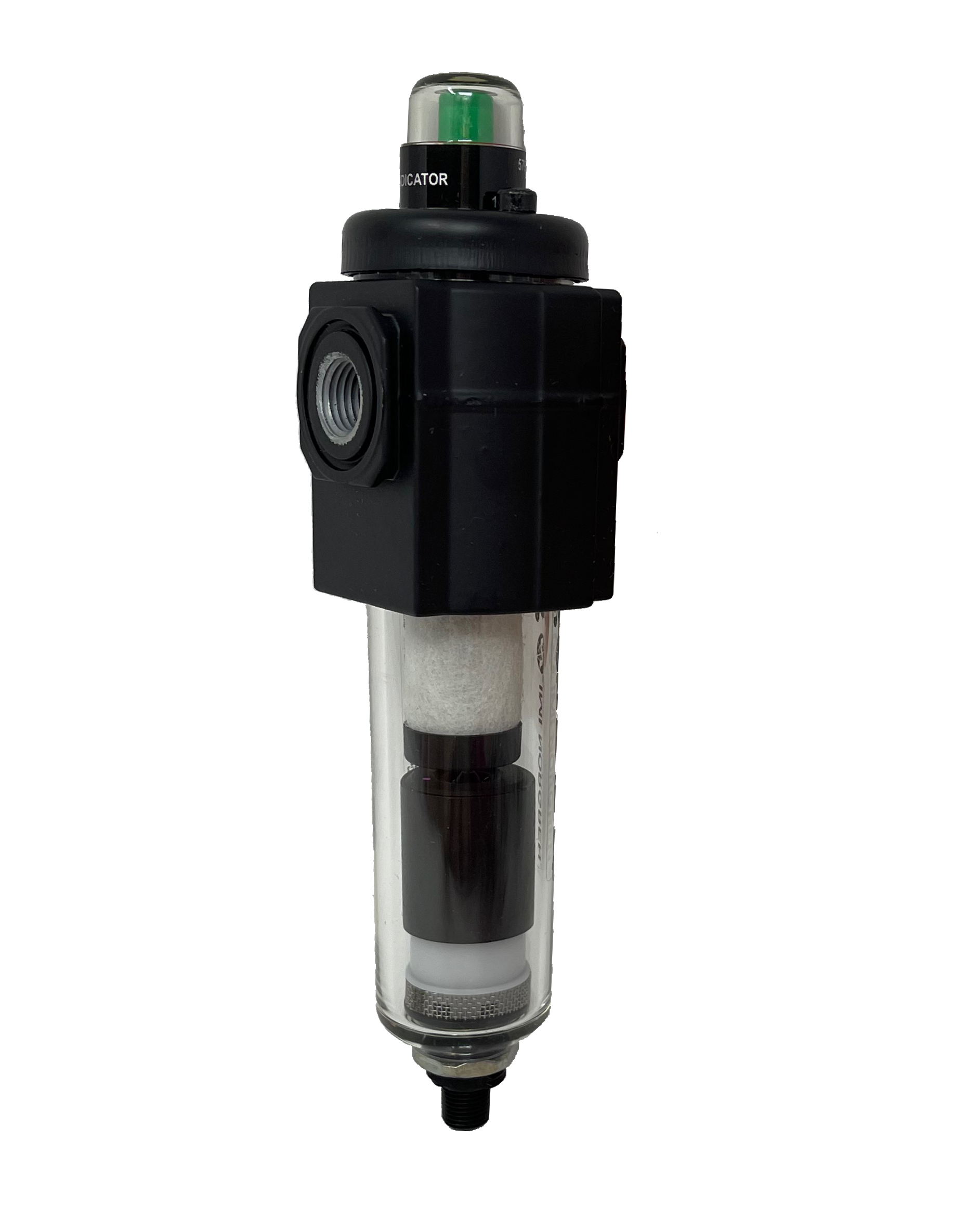

Norgren's F72C, F73C, and F74H Oil Removal Coalescing Filters are part of Norgren's Excelon Modular System. The Excelon design allows for inline or modular installation, and the quick release bayonet bowl allows for quick filter replacement and easy maintenance.
