Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days if in Factory Stock, 6-8 Weeks if not in Factory Stock |
| Factory Location | Bowling Green, Ohio |
| Flow Rating | 5 |
| Filter Heads | Single Head |
| Micron | 3 Micron, Synthetic |
| Micron Rating Second Stage | None |
| Country of Manufacture | Germany |
| Height | 23.23 |
| Length | 12.6 |
| Width | 15.75 |
| Weight | 52.9 |
Description

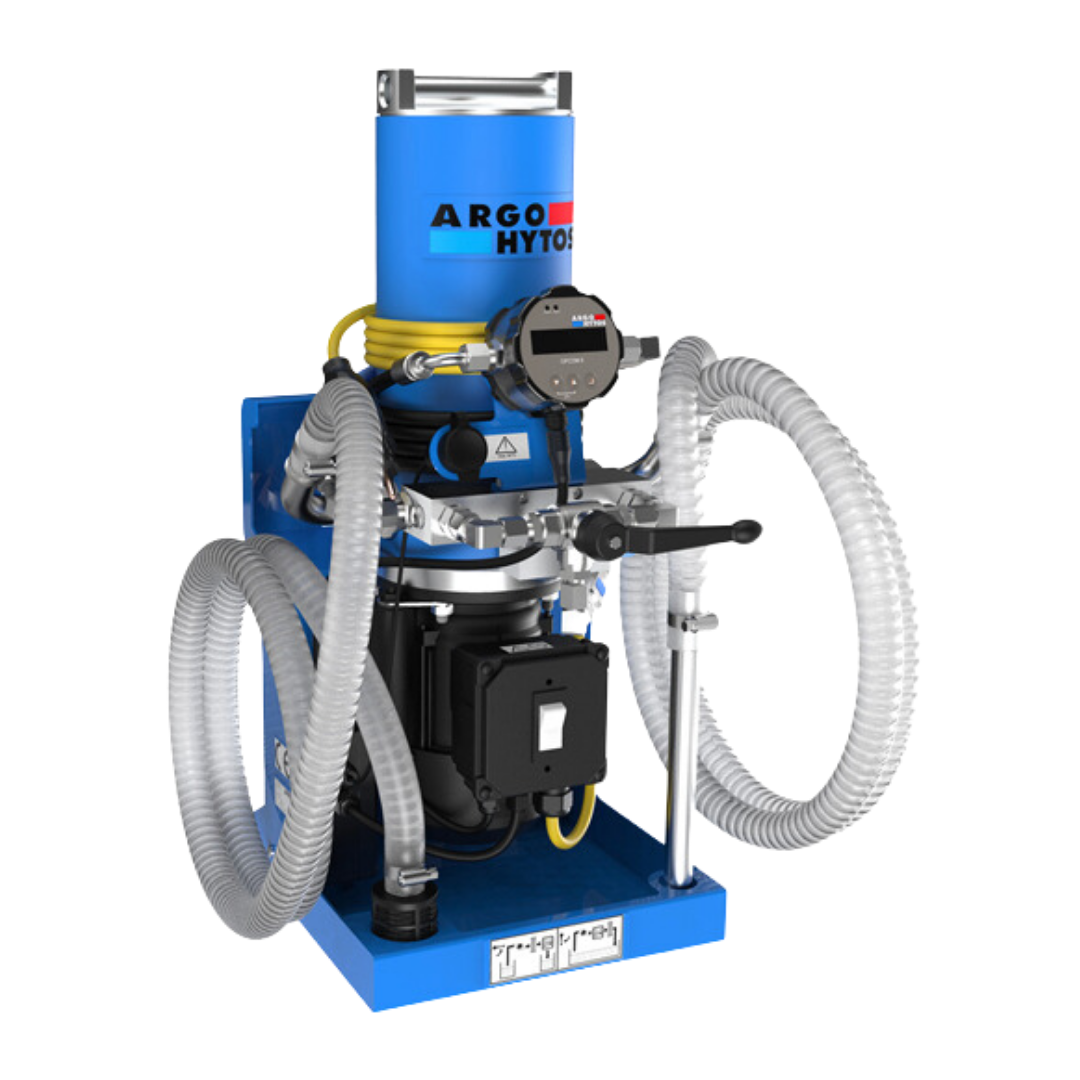

With the FA 016, hydraulic and lubricating systems can be easily filled or cleaned with off-line filtration. The compact design allows easy access to the oil tank. The FA 016 comes ready to connect with hose packages. The ultra-fine elements can quickly be changed without special auxiliary tools. The suction hose and the pressure hose can be wound around the hose fixtures. Residual oil from the hoses is collected in the oil pan. The EXAPOR MAX 2 ultra-fine elements are the heart of the ARGO-HYTOS Cleanline portable systems. High separation efficiencies guarantee excellent cleanliness levels and thereby highest protection of components. The high dirt holding capacity of the EXAPORMAX 2 ultra-fine elements allows economic operation of the Cleanline portable. The FA 016 can be equipped with an oil cleanliness monitor. The ARGO-HYTOS OPCom Particle Monitor permanently monitors the current cleanliness class during the cleaning or filling process. When monitoring the cleanliness class, a ball valve is used to select 'behind filter' (e.g. when filling systems) or 'before filter' (e.g. when cleaning filled oil). At the display of the OPCom Particle Monitor, the ordinal numbers of the particle sizes 4, 6, 14 and 21 micron are shown according to ISO 4406:1999. FAPC 016 can store up to 3000 data sets. A PC-software for data recording and representation of the measured values can be downloaded for free at www.argo-hytos.com. The data can be transmitted to a computer via an RS232 interface so that the development can be visualized and followed graphically or in table form. For easy transportation of the FA 016 and FAPC 016, an optional trolley can be hooked onto the standing unit. Trouble-free transport over long distances is also possible.
