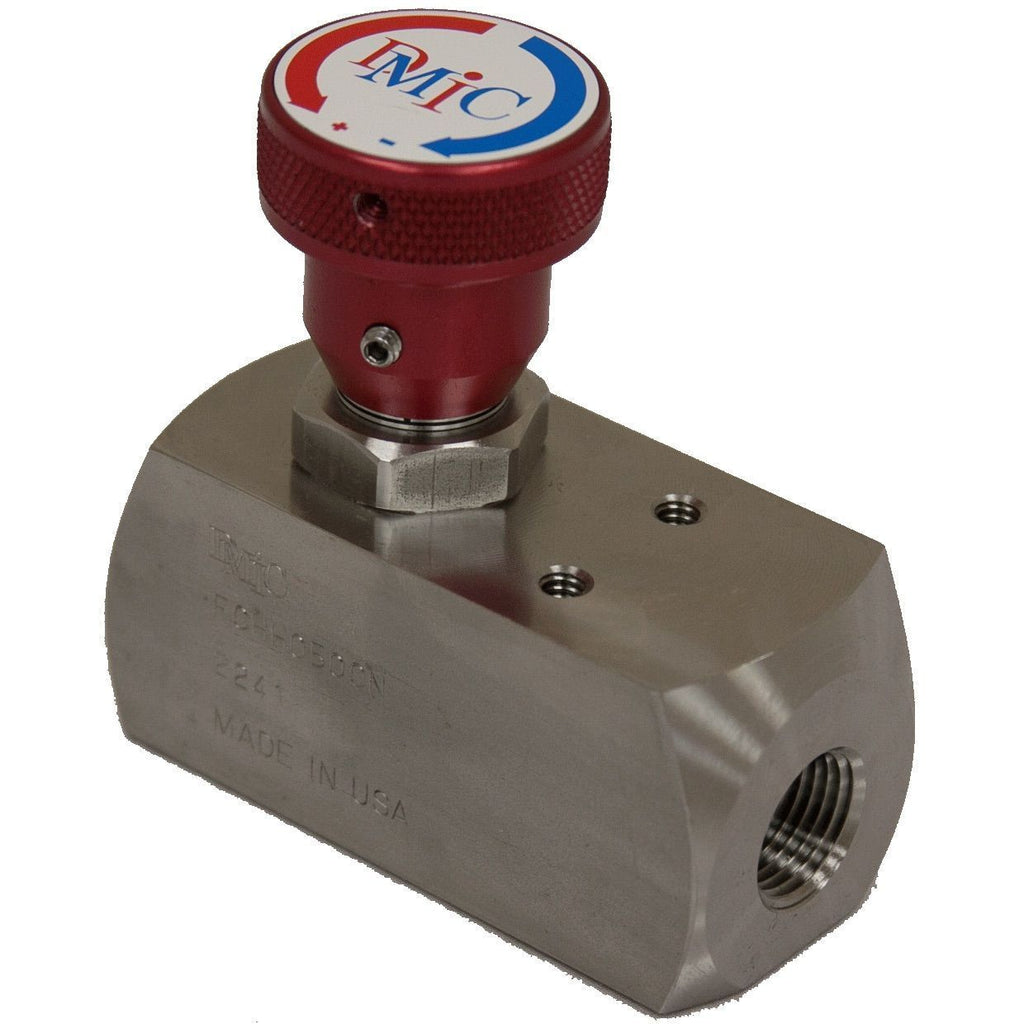

FCHH-0500S-1141 : DMIC Flow Control, Unidirectional, with Integrated Check, #8 SAE (1/2"), Carbon Steel, 10000psi
Roll over image to zoom in Click on image to zoom
FCHH-0500S-1141 : DMIC Flow Control, Unidirectional, with Integrated Check, #8 SAE (1/2"), Carbon Steel, 10000psi

FCHH-0500S-1141 : DMIC Flow Control, Unidirectional, with Integrated Check, #8 SAE (1/2"), Carbon Steel, 10000psi

Save $54.59
DMICSKU: FCHH0500S1141
1-2 Weeks
Price:
$121.99 $176.58

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-2 Weeks
Factory Location Wheatfield, NY
Connection Size #8 SAE (1/2")
Material Carbon Steel
Panel Mount Option No Panel Mount Nut
Adjustment Type Knob Adjustable
Flow Rating 15
Pressure Rating 10000
Height 4
Length 3.75
Width 1.75
Weight 0

Description

The DMIC FCHH flow control valve is a stainless steel, unidirectional flow control rated for working pressures to 10,000psi. An integrated 5psi poppet check valve provides free return flow. These valves come with standard panel mounting holes and are fully repairable.
