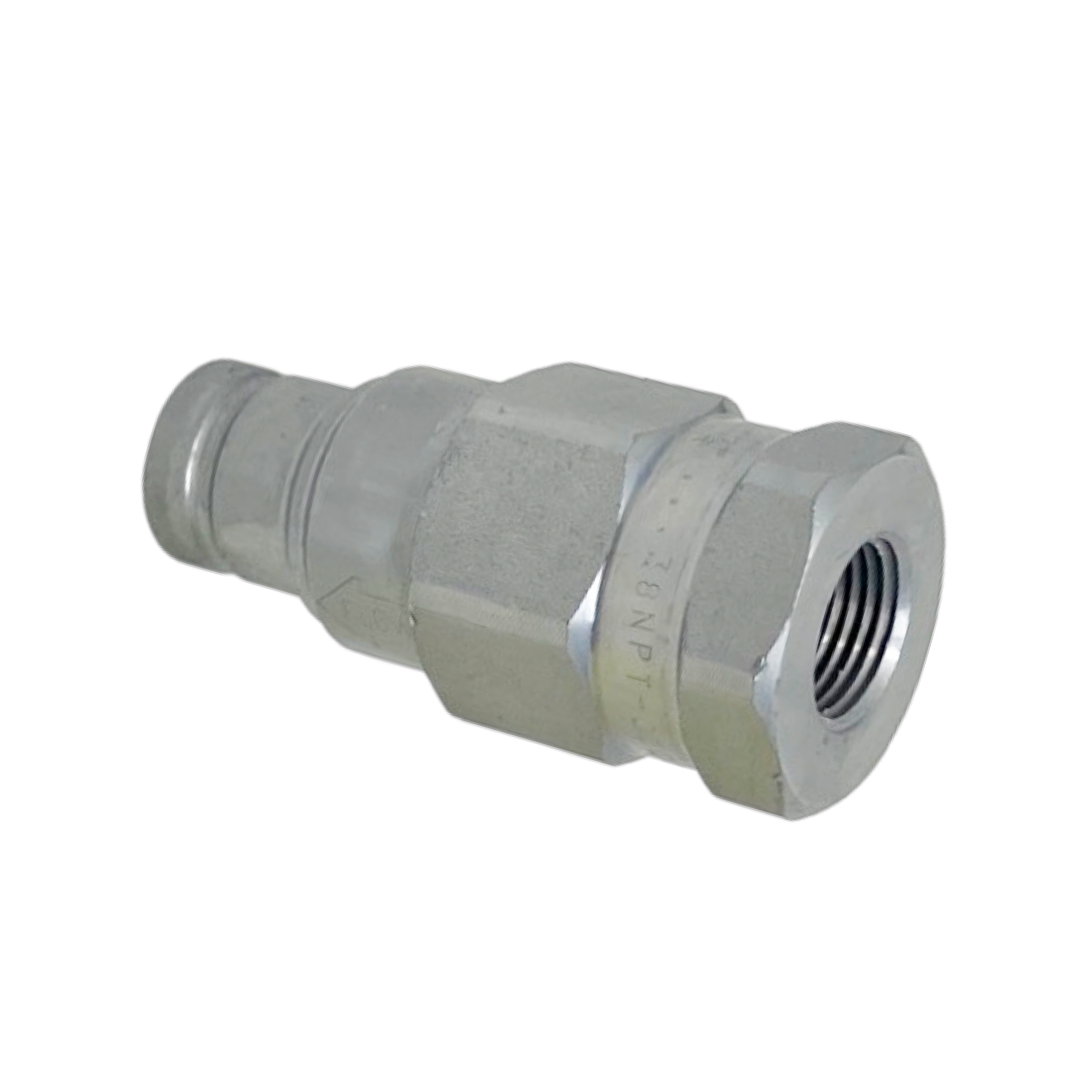

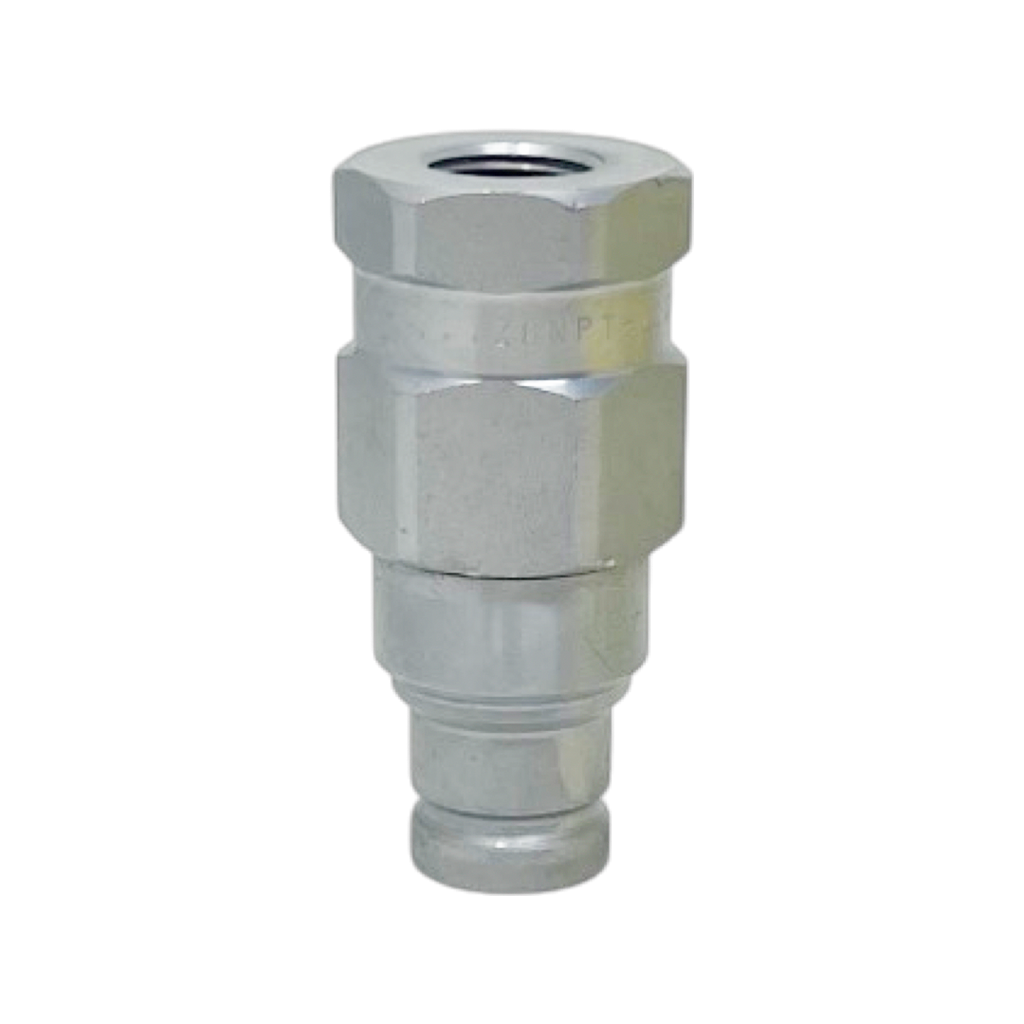

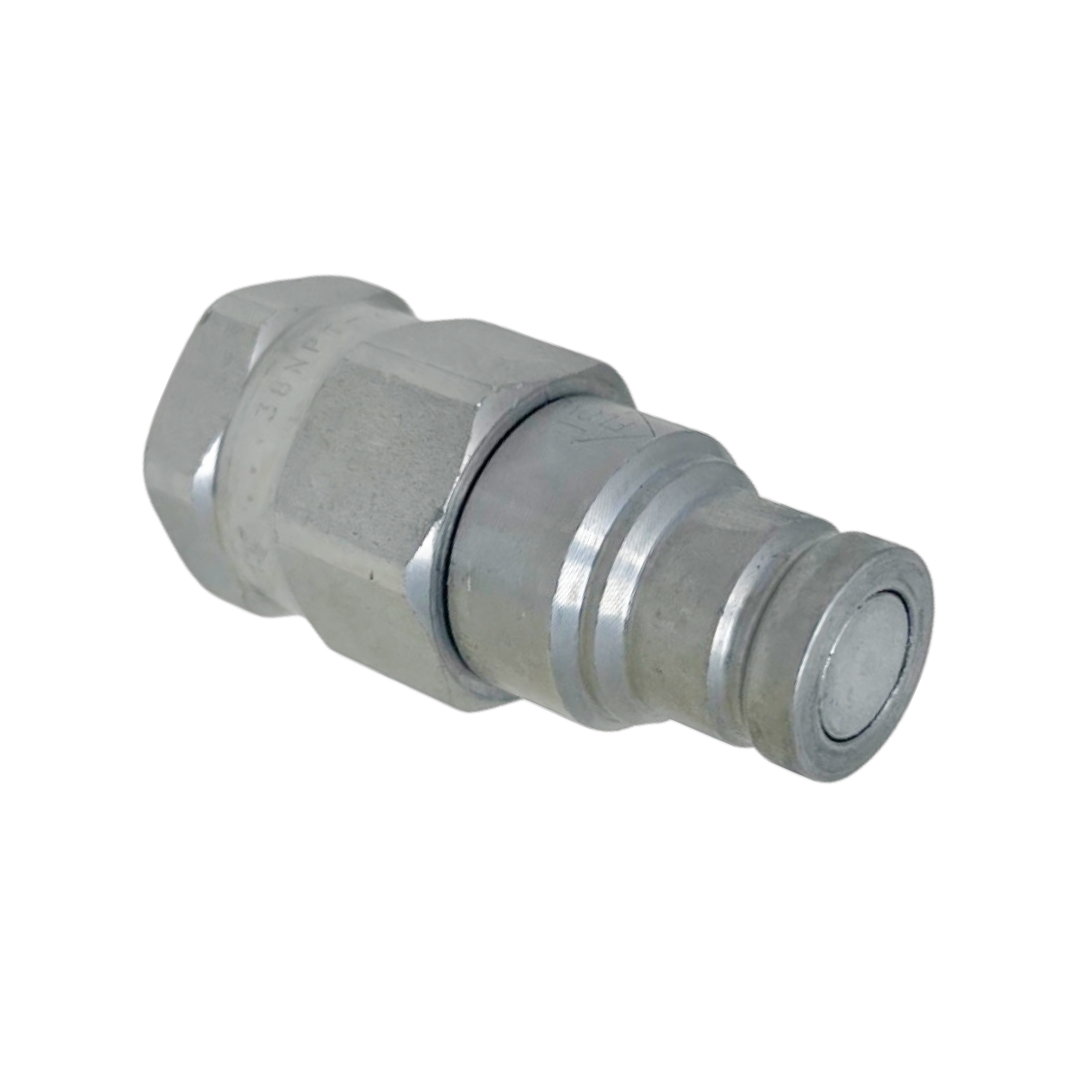

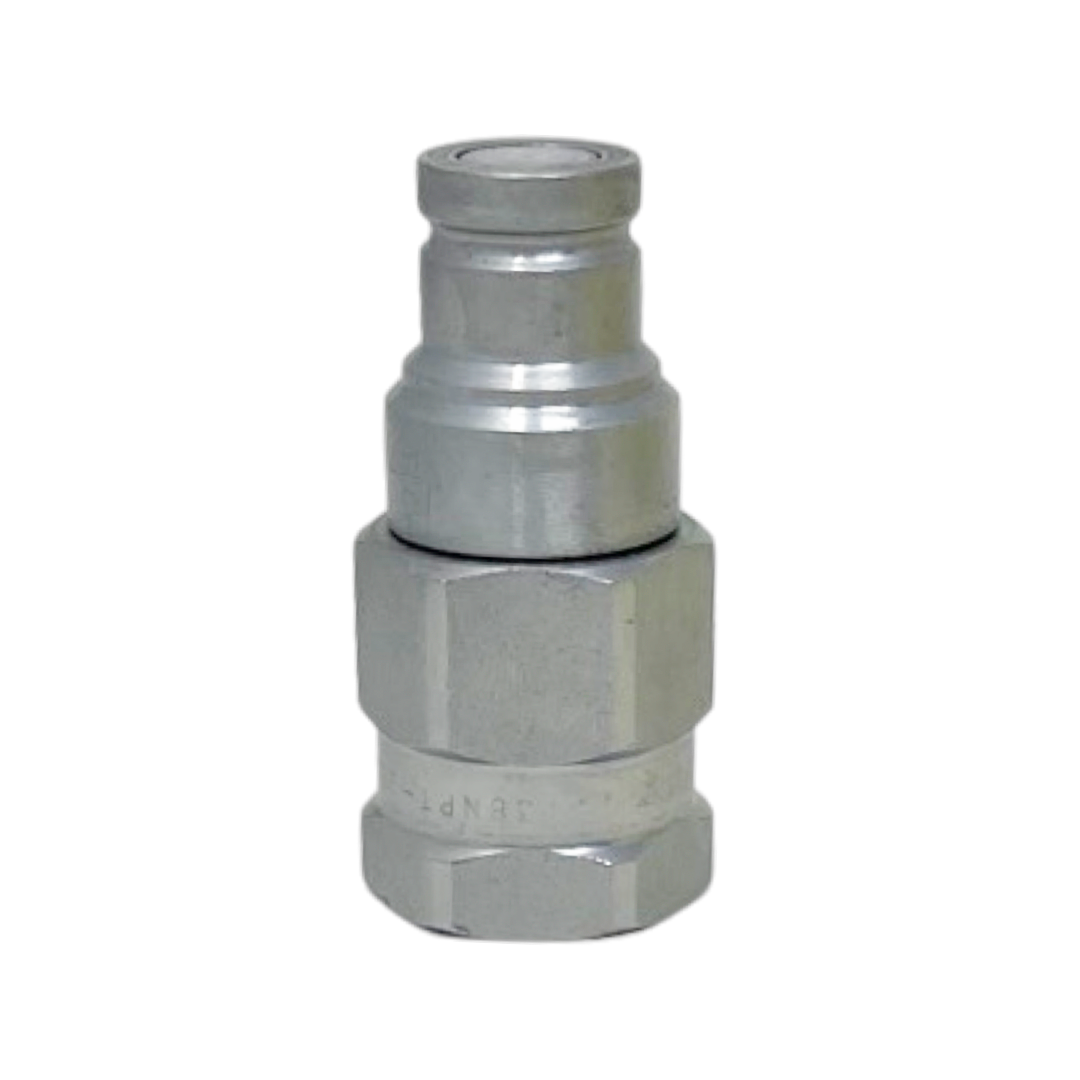

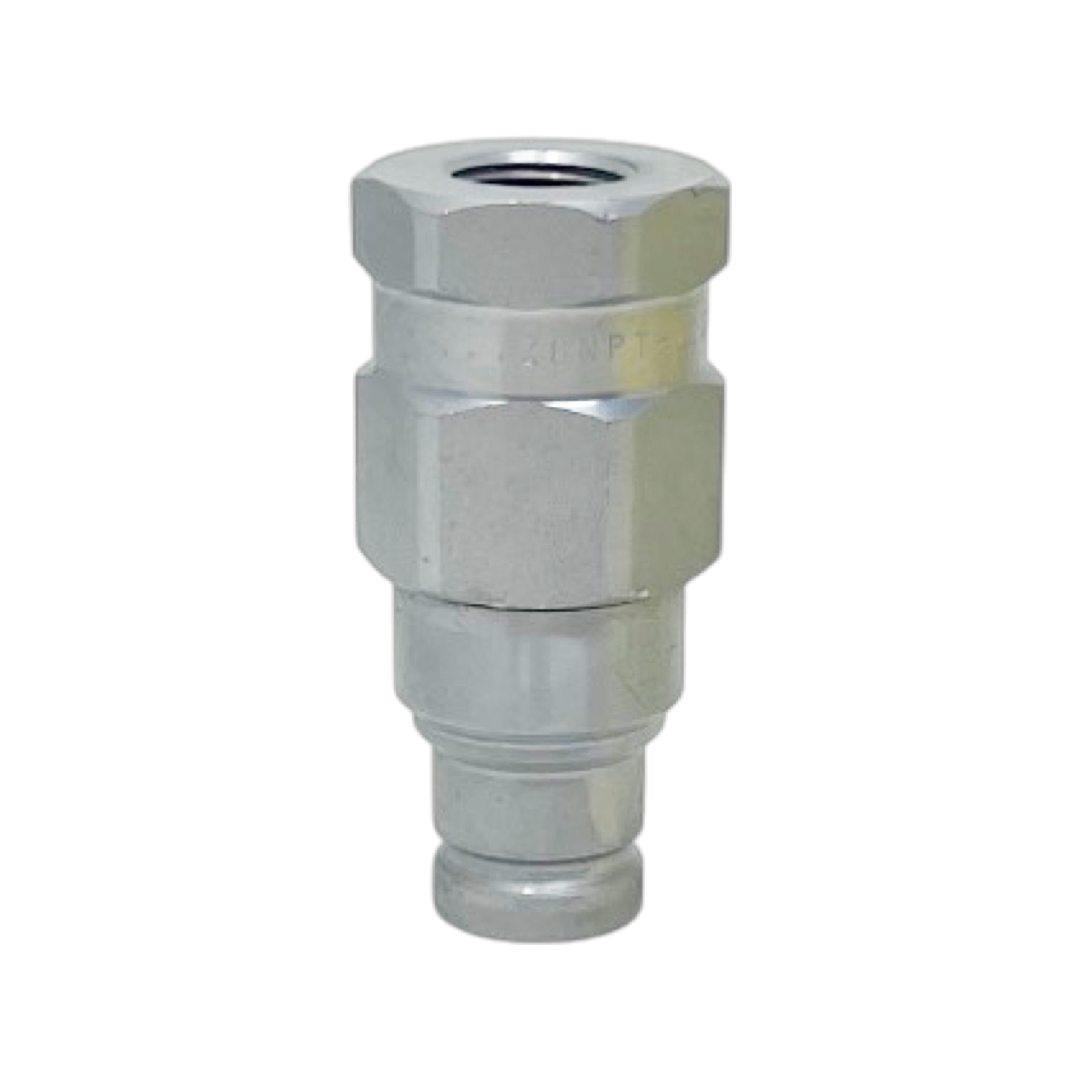

FFH04 38SAE M : Faster Quick Disconnect, Male 1/4" Coupler, 0.375 (3/8") ORB Connection, 5076psi MAWP, 6.6 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Not Allowed
FFH04 38SAE M : Faster Quick Disconnect, Male 1/4" Coupler, 0.375 (3/8") ORB Connection, 5076psi MAWP, 6.6 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Not Allowed
FFH04 38SAE M : Faster Quick Disconnect, Male 1/4" Coupler, 0.375 (3/8") ORB Connection, 5076psi MAWP, 6.6 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Not Allowed
FFH04 38SAE M : Faster Quick Disconnect, Male 1/4" Coupler, 0.375 (3/8") ORB Connection, 5076psi MAWP, 6.6 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Not Allowed
FFH04 38SAE M : Faster Quick Disconnect, Male 1/4" Coupler, 0.375 (3/8") ORB Connection, 5076psi MAWP, 6.6 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Not Allowed
Roll over image to zoom in Click on image to zoom
FFH04 38SAE M : Faster Quick Disconnect, Male 1/4" Coupler, 0.375 (3/8") ORB Connection, 5076psi MAWP, 6.6 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Not AllowedFFH04 38SAE M : Faster Quick Disconnect, Male 1/4" Coupler, 0.375 (3/8") ORB Connection, 5076psi MAWP, 6.6 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Not AllowedFFH04 38SAE M : Faster Quick Disconnect, Male 1/4" Coupler, 0.375 (3/8") ORB Connection, 5076psi MAWP, 6.6 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Not AllowedFFH04 38SAE M : Faster Quick Disconnect, Male 1/4" Coupler, 0.375 (3/8") ORB Connection, 5076psi MAWP, 6.6 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Not AllowedFFH04 38SAE M : Faster Quick Disconnect, Male 1/4" Coupler, 0.375 (3/8") ORB Connection, 5076psi MAWP, 6.6 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Not Allowed

FFH04 38SAE M : Faster Quick Disconnect, Male 1/4" Coupler, 0.375 (3/8") ORB Connection, 5076psi MAWP, 6.6 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Not Allowed

Save $0.61
FasterSKU: FFH04 38SAE M
1-2 Weeks
Price:
$15.99 $16.60

Product Details

Data Sheet Click here to download
Usually Ships Within 1-2 Weeks
Factory Location Maumee, Ohio
Port Size 0.375 (3/8") ORB
Type Push to Connect
End Connections Connect Under Pressure Not Allowed
Pressure Rating 5076
Series Series: FFH
Operating Force 25 lb
Country of Manufacture Country of Manufacture: Italy
Height 1.02
Length 2.05
Width 1.02
Weight 0.23
Side 1 Gender Male
Side 1 Size 0.25 (1/4")

Description

Flat-Face couplings with real maximum working pressure of 35 MPa and Zinc-Nickel plating. Flat valve shut-off system contributes to prevent contamination and spillage. ISO 16028 interchange.
